SL-PPC-17-E3845

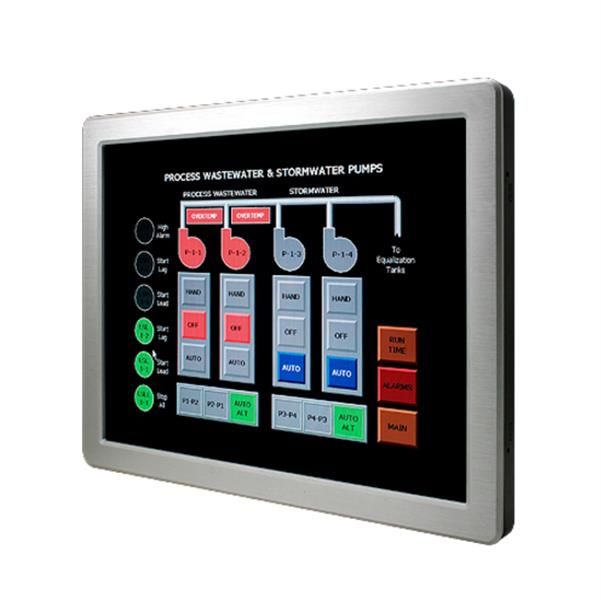

17" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 Rated Front Panel; Intel ATOM SoC, Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W, 2x LAN, 1x Serial, Up to 8GB RAM, 1x USB 2.0 Port( 1 Rear ), 1x USB 3.2 Gen 1 Port( 1 Rear ), 1280 x 1024 resolution, Power Supply Included Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter) .


Can be Long Lead Time- Please Call for Current Status

Type:

  • Fanless Panel PC
  • Screen:
    • 17" 5-Wire Resistive, Native Resolution: 1280 x 1024, Front Panel Rating: IP65

Motherboard:

  • Featuring Intel ATOM SoC and Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
  • Video: HDMI
  • Audio: Onboard Audio
  • Ports:
    1x USB 2.0 Port( 1 Rear )
    1x USB 3.2 Gen 1 Port( 1 Rear )
    1x COM Port (RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: -20ºC to 60ºC (-4ºF to 140ºF)

Also Included:

  • Memory: 4GB DDR3 1333MHz SODIMM RAM
  • Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
  • Power Supply: Included Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter)
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty
Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Panel
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
  • Chipset
  • Chipset: Intel ATOM SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 1
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: Onboard Audio
  • On Board Video
  • Video Chipset: Intel® Valleyview SoC integrated Graphics
  • Video on IO: HDMI
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Chipset: Intel® i210IT
  • Second LAN Chipset: Intel® i210IT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 1
  • Compact Flash: 1
  • Mini PCIe
  • mini PCIe
  • half and/or full size mini PCIe card: full size

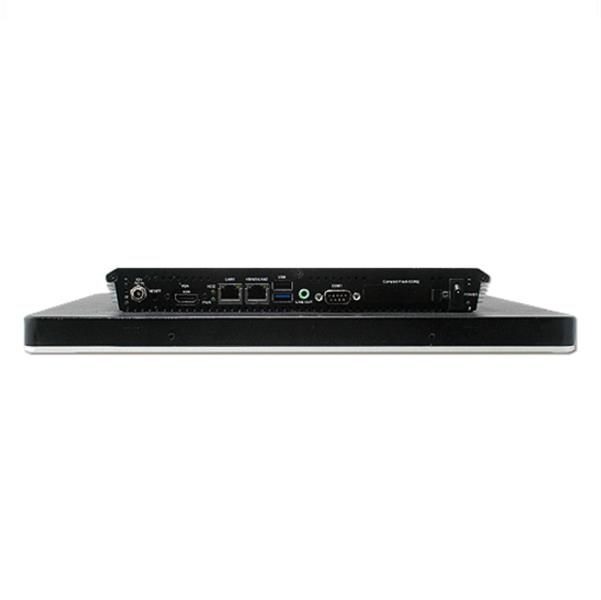

  • Rear IO
  • USB 2.0 Ports (on IO): 1
  • USB 3.2 Gen 1 Type A Ports (on IO): 1
  • Serial 232/422/485 Ports: 1
  • Environmental
  • Operating Temperature: -20ºC to 60ºC (-4ºF to 140ºF )
  • High Humidity: 90%
  • Low Humidity: 0
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry
  • Windows 10 IoT Entry 2019 LTSC
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size (inches): 17
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 350
  • Display Area (H): 337.92"
  • Display Area (V): 270.33"
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 800:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 85
  • Viewing Angle(R) : 85
  • Mounting Options
  • Suggested Cut-Out Dimension (Width):
  • Suggested Cut-Out Dimension (Height):
  • Physical
  • Width: 382mm
  • Height: 320"
  • Depth: 58.80mm
  • Depth (Inches): 2.26
  • Unboxed Weight: 3lbs
  • Shipping Weight: 25lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 60C
  • Low Operating Temp: -20C
  • High Humidity: 90%
  • Low Humidity: 0
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 0
  • Power
  • Power Supply: Accepts 12VDC, 100-240VAC/12VDC 5A 60W External Power Adapter included
  • Power Consumption (on): 60Watts
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Built-in Chassis Power Supply: Included Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter)

Chassis Specifications:

  • General
  • Form Factor: Panel PC
  • Color: Silver
  • Material: Metal/Aluminum
  • Material Thickness: 1mm
  • Expansion
  • Internal 2.5" Bays: 1
  • Physical
  • Depth: 58.80mm
  • Depth (Inches): 2.26
  • Width: 382mm
  • Height: 320"
  • Shipping Box - Depth: 108.80"
  • Shipping Box - Width: 432"
  • Shipping Box - Height: 370"
  • Shipping Weight: 25lbs
  • Power
  • Built-in Chassis Power Supply: Included Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter)
