SL-PPC-17A-AH470I-S18

A newer version of this item is available: SL-PPC-17A-AH510I-S18

17" HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Intel H470 Chipset, 10th Gen Core i7/i5/i3 (LGA1200), 2x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s LAN, HDD or SSD, Up to 64GB RAM, 4x USB 2.0, 4x USB 3.1, 1280 x 1024 resolution, 160w output, 12v input DC-DC Power Supply - AC Adapter Included

Type:

  • Panel PC
  • Screen:
    • 17" 5-Wire Resistive, Native Resolution: 1280 x 1024, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel H470 Chipset and 10th Gen Core i7/i5/i3 (LGA1200) processor
  • LAN: 2x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • RAID: 0,1
  • Video: DisplayPort + HDMI
  • Audio: Realtek® ALC1200 Audio Codec
  • Ports:
    4x USB 2.0 Ports ( 2 Front, 2 Rear)
    4x USB 3.1 Ports ( 2 Rear, 2 via internal headers )
    See specifications for more ports
  • Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)

Also Included:

  • Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
  • Memory: 4GB DDR4 2666MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 160w output, 12v input DC-DC Power Supply - AC Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 10th Gen Core i7/i5/i3 (LGA1200)
  • Chipset
  • Chipset: Intel H470 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: Realtek® ALC1200 Audio Codec
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: DisplayPort + HDMI
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • LAN Chipset: Realtek® Dragon RTL8125BG
  • Second LAN Chipset: Intel® i219V
  • Wireless LAN: Integrated Intel® 802.11ac WiFi Module + Bluetooth 4.2 - Removable Under Networking Section
  • Drive Interface
  • SATA III Ports (6GB): 4
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • M.2
  • M.2 NVMe: 2
  • M.2
  • SATA
  • PCIe
  • 80mm
  • M.2 (2)
  • PCIe
  • 80mm

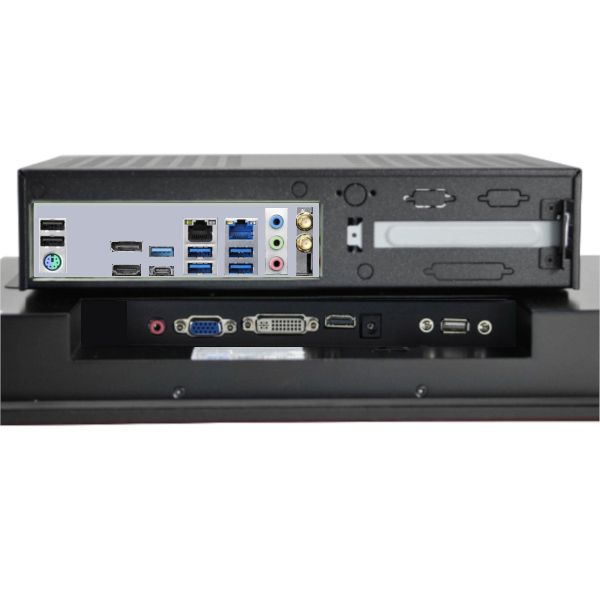

  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 2
  • USB 3.2 Gen 1 Type A Ports (on IO): 1
  • USB 3.2 Gen 2 Type A Ports (on IO): 4
  • USB 3.2 Gen 1 Type C Ports (on I/O): 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.1 Ports Gen 1 (on Headers): 2
  • FAN Connectors: 3
  • Environmental
  • Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF )
  • High Humidity: 95%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Compliance of Component
  • CE
  • FCC
  • Other Features
  • Features:

    *Support in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

    *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size (inches): 17
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4:3
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 337.92mm
  • Display Area (V): 270.33mm
  • Aspect Ratio: 4:3
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width):
  • Suggested Cut-Out Dimension (Height):
  • Physical
  • Width:
  • Height:
  • Depth:
  • Depth (Inches): Click Technical Specifications Tab > Mechanical Drawings.
  • Unboxed Weight: 12lbs
  • Shipping Weight: 35lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • Low Operating Temp: 00
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): 00
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 13Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 17"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1280 x 1024
    • Brightness (nits): 250

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 7.5""
  • Internal 2.5" Bays: 2
  • Serial Port Punchouts: 3
  • Parallel Port Punchouts: 1
  • Antennae Punchout: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Physical
  • Depth: 2.60"
  • Depth (Inches): 2.6
  • Width: 12.30"
  • Height: 8.27"
  • Shipping Box - Depth: 16"
  • Shipping Box - Width: 16"
  • Shipping Box - Height: 8"
  • Shipping Weight: 11lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
