SL-PPC-17A-J1900B-S18-1 This item is no longer available.

17" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Intel Celeron SoC, Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W, 1x GB (10/100/1000) LAN, 2x Serial, Up to 16GB RAM, 4x USB 2.0 Ports ( 1 Front, 3 Rear ), 1x USB 3.2 Gen 1 Port( 1 Rear ), 1280 x 1024 resolution, Power Supply AC/DC Power Adapter Included.


Completely Fanless

Type:

  • Fanless Panel PC
  • Screen:
    • 17" 5-Wire Resistive, Native Resolution: 1280 x 1024, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • LAN: 1x Ports (GB (10/100/1000))
  • Video: VGA + HDMI
  • Audio: 5.1 channel by Realtek® ALC662
  • Ports:
    4x USB 2.0 Ports ( 1 Front, 3 Rear )
    1x USB 3.2 Gen 1 Port( 1 Rear )
    2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
    1x Parallel Port (Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
  • Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
  • Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: 5.1 channel by Realtek® ALC662
  • On Board Video
  • Video Chipset: Intel® 7th generation (Gen 7) Graphics
  • Video on IO: VGA + HDMI
  • VGA Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111G
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2

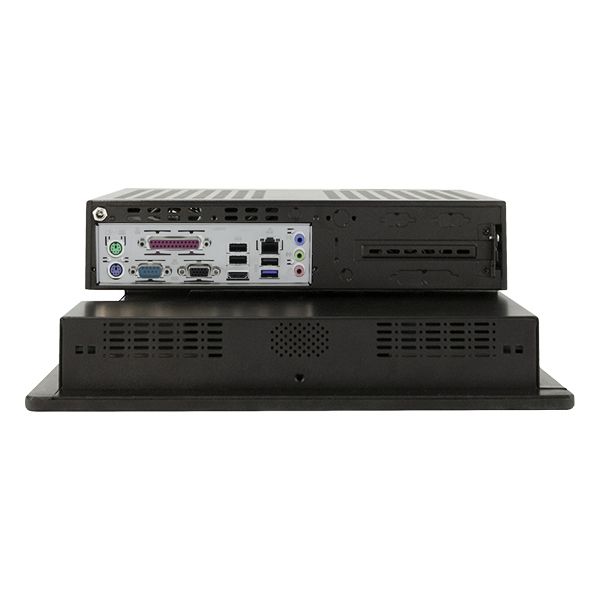

  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 3
  • USB 3.0 Ports (on IO): 1
  • Serial (Rear IO): 1
  • Parallel Ports: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 1
  • Serial (via Headers): 1
  • FAN Connectors: 2
  • Audio on Headers
  • Chassis Intrusion
  • TPM Support: Via 1.2 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • CE
  • FCC
  • Other Features
  • Other Features:

    1 x PCI Express 2.0 x1 Slot



    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size (inches): 17
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4:3
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 337.92mm
  • Display Area (V): 270.33mm
  • Aspect Ratio: 4:3
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • HDMI In: 1
  • Display Port In: 1
  • Touchscreen Interface USB Port (Front): 1
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width):
  • Suggested Cut-Out Dimension (Height):
  • Physical
  • Width:
  • Height:
  • Depth:
  • Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
  • Unboxed Weight: 12lbs
  • Shipping Weight: 35lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • Low Operating Temp: 00
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): 00
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 13Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Built-in Chassis Power Supply: Wide DC Voltage Input: 9 - 36VDC
  • Features:

    Industrial Display

    • Screen Size: 17"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1280 x 1024
    • Brightness (nits): 250
    • Wide DC Voltage Input: 9 - 36VDC

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 7.5""
  • Internal 2.5" Bays: 2
  • Serial Port Punchouts: 3
  • Parallel Port Punchouts: 1
  • Antennae Punchout: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Physical
  • Depth: 2.60"
  • Depth (Inches): 2.6
  • Width: 12.30"
  • Height: 8.27"
  • Shipping Box - Depth: 16"
  • Shipping Box - Width: 16"
  • Shipping Box - Height: 8"
  • Shipping Weight: 11lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
