SL-PPC-24A-J1900B-S18-C This item is no longer available.

A newer version of this item is available: SL-PPC-24A-J4105B-S18-C

24" HMI Panel PC with Multi-Touch Projected Capacitive Touch Screen and IP65 / NEMA4 Rated Front Panel;, 90w output, 12v input DC-DC Power Supply - AC Adapter Included

24
  • Front Angle
  • Front

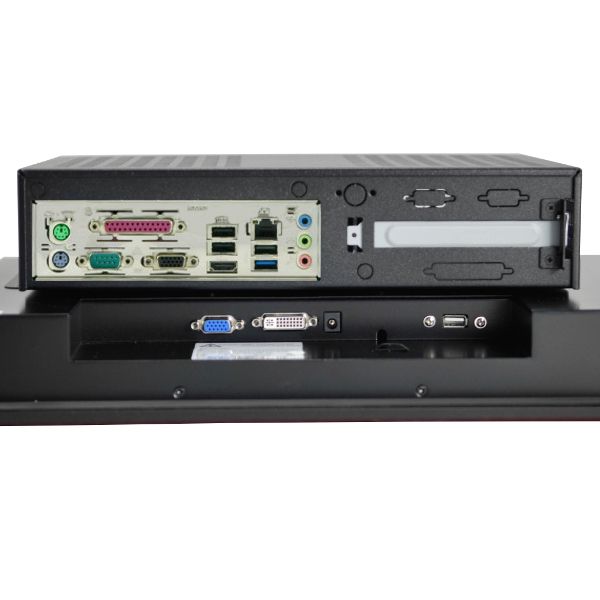

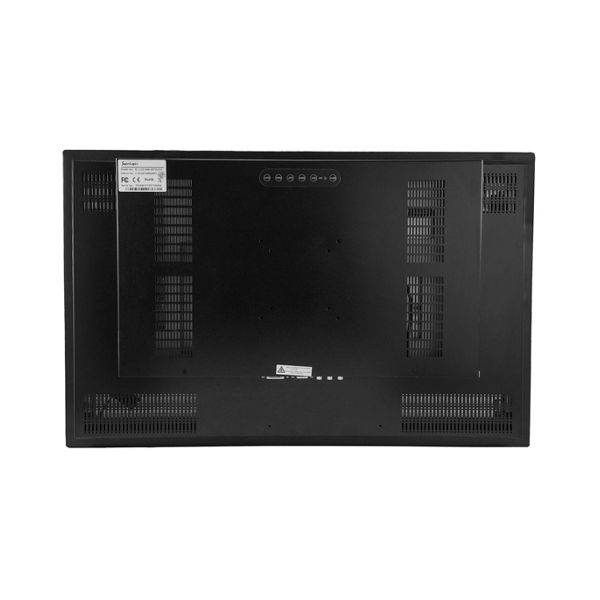

  • Back

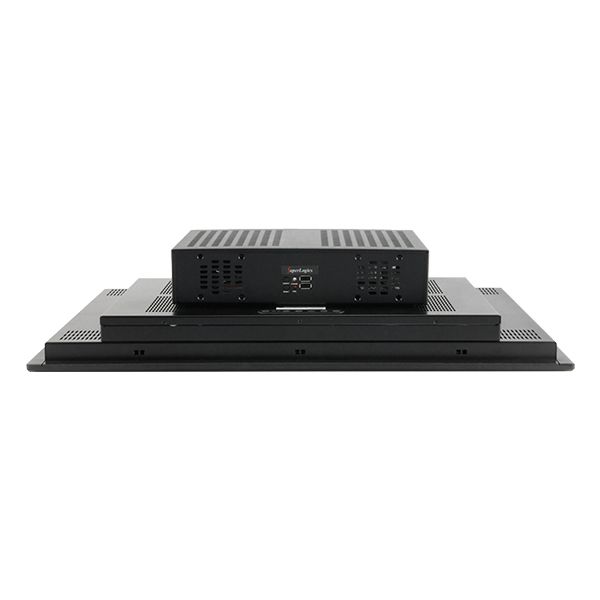

  • Top
  • SL-PPC-24A-J1900B-S18-C
  • Cutout Dimensions
  • Dimensions
  • Wallmount Instructions
  • Included Accessories
Completely Fanless

Type:

  • Panel PC
  • Screen:
    • 24" Multi-Touch Projected Capacitive, Native Resolution: 1920 x 1080, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out
  • No Available Slots
Technical Specifications
Available Downloads

Display Specifications

  • Display
  • Screen Size: 24"
  • Touch Type: Multi-Touch Projected Capacitive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
  • Display Area (H): 531mm
  • Display Area (V): 298mm
  • Aspect Ratio: 16 : 9
  • DisplayColors: 16.2 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 85
  • Viewing Angle(R) : 85
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • S-Video: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 602mm
  • Suggested Cut-Out Dimension (Height): 370mm
  • Physical
  • Width: 636mm
  • Height: 403mm
  • Depth: 62mm
  • Depth (Inches): 2.5
  • Shipping Weight: 50lbs
  • Environmental
  • MTBF: 30000hours
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: -10ºC to 60ºC (14ºF to 140ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 21Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Features:

    Industrial Display

    • Screen Size: 24"
    • Touch Type: Multi-Touch Projected Capacitive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1920 x 1080
    • Brightness (nits): 250
  • Warranty: 1 year

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 7.5""
  • Internal 2.5" Bays: 2
  • Serial Port Punchouts: 3
  • Parallel Port Punchouts: 1
  • Antennae Punchout: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Physical
  • Depth: 2.60"
  • Depth (Inches): 2.6
  • Width: 12.30"
  • Height: 8.27"
  • Shipping Box - Depth: 16"
  • Shipping Box - Width: 16"
  • Shipping Box - Height: 8"
  • Shipping Weight: 11lbs
  • Compliance of Component
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
