SL-PPC-24A-PD-AH110I-S19 This item is no longer available.

A newer version of this item is available: SL-PPC-24A-AH310I-S19

24" HMI Panel PC with Multi-Touch Projected Capacitive Touch Screen and IP65 / NEMA4 Rated Front Panel; Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 1x GB (10/100/1000) LAN, HDD or SSD, Up to 32GB RAM, 7x USB 2.0, 4x USB 3.0, 1x Expansion Slots,1920 x 1080 resolution, 90w output, 12v input DC-DC Power Supply - AC Adapter Included

Type:

  • Panel PC
  • Screen:
    • 24" Multi-Touch Projected Capacitive, Native Resolution: 1920 x 1080, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel H110 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
  • Low Profile Slots:
    1 - PCIe x16
  • LAN: 1x GB (10/100/1000)
  • Video: DVI-D + HDMI
  • Audio: 7.1+2 Channel HD Audio by Realtek ALC892
  • Ports:
    7x USB 2.0 Ports ( 2 Front, 4 Rear, 1 via internal headers )
    4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
  • Memory: 4GB DDR4 2666MHz RAM
  • Hard Drive: 250GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater)
  • Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
  • Chipset
  • Chipset: Intel H110 Chipset
  • Memory
  • Memory Type: DDR4 2133MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: 7.1+2 Channel HD Audio by Realtek ALC892
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: DVI-D + HDMI
  • DVI-D Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 4
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • mini PCIe

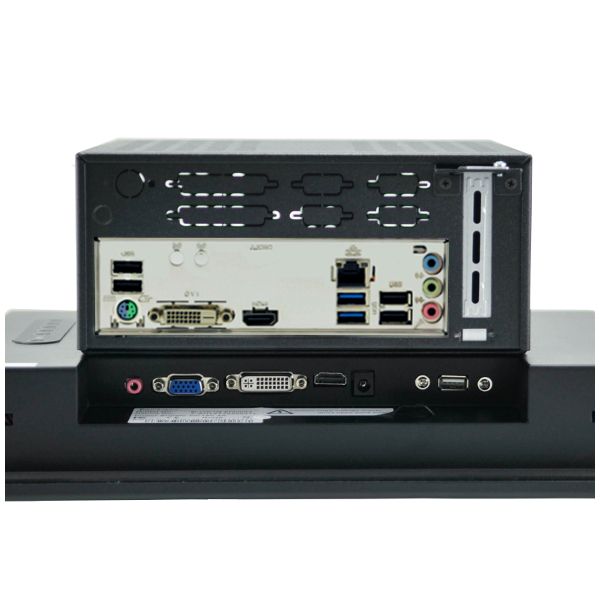

  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 3
  • USB 3.0 Ports (on Headers): 2
  • FAN Connectors: 2
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value
  • Windows 10 IoT Ent
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • CE
  • FCC
  • Other Features
  • Other Features:

    1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size (inches): 24
  • Touch Type: Multi-Touch Projected Capacitive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16 : 9
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 531.36mm
  • Display Area (V): 298.89mm
  • Aspect Ratio: 16 : 9
  • DisplayColors: 16.2 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 85
  • Viewing Angle(R) : 85
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • S-Video: 1
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): Click Technical Specifications Tab > Mechanical Drawings.
  • Suggested Cut-Out Dimension (Height): Click Technical Specifications Tab > Mechanical Drawings.
  • Physical
  • Width: Click Technical Specifications Tab > Mechanical Drawings.
  • Height: Click Technical Specifications Tab > Mechanical Drawings.
  • Depth: Click Technical Specifications Tab > Mechanical Drawings.
  • Depth (Inches): Click Technical Specifications Tab > Mechanical Drawings.
  • Unboxed Weight: 20lbs
  • Shipping Weight: 50lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -10C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 21Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 24"
    • Touch Type: Multi-Touch Projected Capacitive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1920 x 1080
    • Brightness (nits): 250

Chassis Specifications:

  • General
  • Form Factor: Embedded PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Expansion
  • Low Profile Slots: 1
  • Max Card Depth: 7.5""
  • Internal 2.5" Bays: 2
  • Serial Port Punchouts: 2
  • Parallel Port Punchouts: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Physical
  • Depth: 8.30"
  • Depth (Inches): 8.27
  • Width: 8"
  • Height: 3.50"
  • Shipping Box - Depth: 150mm
  • Shipping Box - Width: 380mm
  • Shipping Box - Height: 27mm
  • Shipping Weight: 13lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: Power Adapter Included
