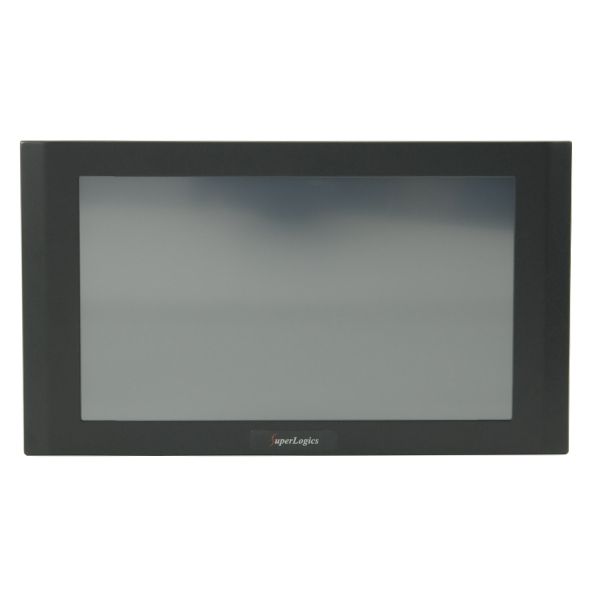

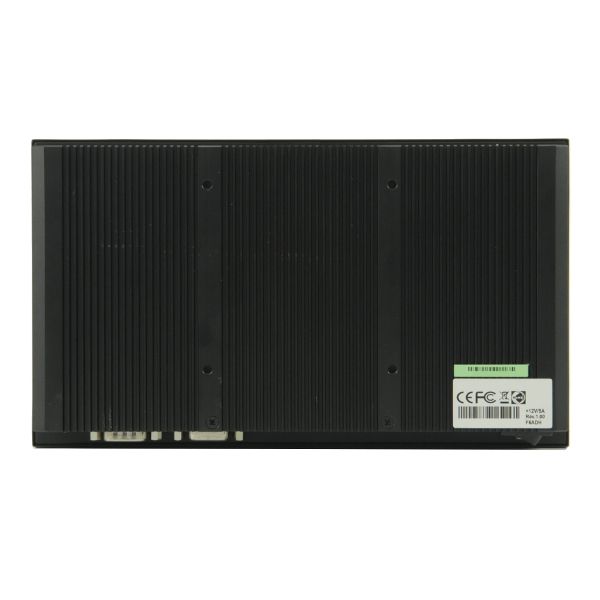

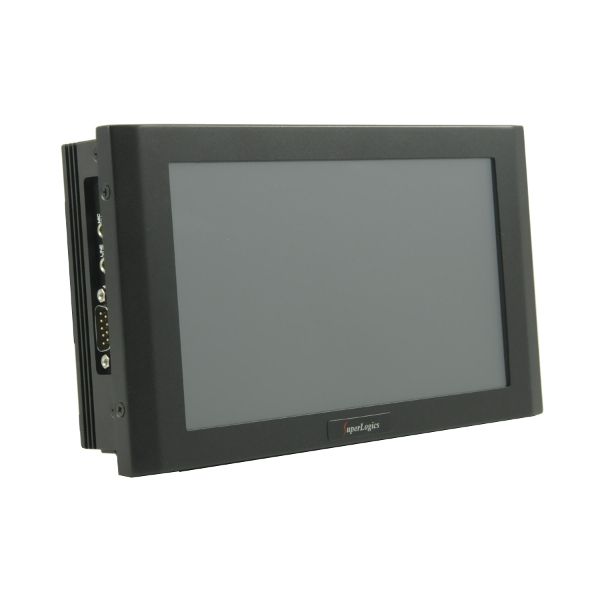

SL-PPC-08Wv2-E3845

8" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 Rated Front Panel; Intel ATOM SoC, Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W, 2x LAN, WIFI,2x Serial, Up to 8GB RAM, 3x USB 2.0, 1x USB 3.2 Gen 1 Type A Ports (on IO), 1024 x 600 resolution, Power Supply 12~28V input / 12VDC 60w External Power adapter included.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Fanless Panel PC
Screen:
- 8" 5-Wire Resistive, Native Resolution: 1024 x 600, Front Panel Rating: IP65

Motherboard:

Featuring Intel ATOM SoC and Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
Full Height Slots:
WiFi: Optional USB WiFi 802.11 b/g
Video: VGA + HDMI
Audio: 5.1 channel by Realtek® ALC892
Ports:
3x USB 2.0 Ports ( 3 Rear )
1x USB 3.2 Gen 1 Port( 1 Rear )
2x COM Port (1 RS232 Rear, 1 RS232/422/485 Rear)
See specifications for more ports
Operating Temperature: 0ºC to 40ºC (0ºF to 104ºF)

Also Included:

Memory: 2GB DDR3 1333MHz SODIMM RAM
Hard Drive: 256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater)
Power Supply: 12~28V input / 12VDC 60w External Power adapter included
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush build ships in 4-5 business days. Non-rush build time is approx. 4 weeks. Shipping not included. show $100.00

Memory

x 2GB DDR3 1333MHz SODIMM RAM show $0.00

x 4GB DDR3L 1600MHz SODIMM RAM 1.35V show $53.00

x 8GB DDR3 1600MHz SODIMM RAM 1.35V show $80.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

Hard Drive

256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater) show $38.00

512GB mSATA SSD SATA 6.0Gb/s, 550/520MB/s read/write (or greater) show $92.00

1TB mSATA SSD SATA 6.0Gb/s, 550/520MB/s read/write (or greater) show $138.00

Networking

USB 2.0 - Mini Dual Band Wireless-AC Network Adapter show $52.00 each

Operating System

None show Included

Microsoft Windows Embedded 7 Standard E 32-bit show $109.00

Microsoft Windows Embedded 7 Standard E 64-bit show $109.00

Microsoft Windows 7 Pro (32 Bit) - For Embedded Systems. Full Version of Windows 7 Pro, But Licensed to Be Used For Single-purpose Embedded Applicatio show $229.00

Microsoft Windows 7 Pro (64 Bit) - For Embedded Systems. Full Version of Windows 7 Pro, But Licensed to Be Used For Single-purpose Embedded Applicatio show $229.00

Microsoft Windows 7 Ultimate for Embedded Systems SP1, 64-Bit show $249.00

Microsoft Windows 10 IoT Enterprise 2019 LTSC 64-BIT - License For Soldered-down Intel Atom, Celeron, and Pentium CPUs show $74.00

Microsoft Windows 10 Home, 64-Bit show $181.00

Microsoft Windows 10 Professional, 64-Bit show $219.00

Productivity Software

Symantec Norton 360 Standard Antivirus -US 1PC OEM show $39.00 each

Microsoft Office Home and Business 2021 Medialess - License ONLY. NO Media. show $250.00 each

Microsoft Office Home and Student 2021 Medialess - License ONLY. NO Media - Non-Commercial Use Only show $150.00 each

Microsoft Office Professional 2021 Medialess - License ONLY. NO Media. show $440.00 each

Microsoft Windows 10 2021 Enterprise LTSC - Upgrade License (U.S. Customer Only) ESD show $377.00 each

Warranty

One-Year Depot Warranty show $0.00

Two-Year Depot Warranty show $99.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $25.00 each

Wireless Keyboard/Mouse show $45.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $111.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $110.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $149.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $135.00 each

USB Keyboard/Mouse - Waterproof, NEMA4 show $372.00 each

USB Keyboard/Mouse - Waterproof, IP67/NEMA4x show $672.00 each

External Power

None show Included

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount show $119.00

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount show $164.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $581.00

Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $120.00

Mounting Option

None show Included

Accessory to mount 8" Panel PC in wall or panel.Part Delay: ETA July 31, 2023 show $119.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: Embedded
Fanless
Supported CPU
Number of Processors: 1
Processor Type: Embedded CPUs (ultra-low power, soldered down)
Embedded CPU: Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
Chipset
Chipset: Intel ATOM SoC
Memory
Memory Type: SO DIMM DDR3 1333MHz
Memory Type: Non-ECC
DIMMS: 1
Maximum Memory: 8GB
On Board Audio
Audio Type: 5.1 channel by Realtek® ALC892
On Board Video
Video Chipset: Intel® Valleyview SoC integrated Graphics
Video on IO: VGA + HDMI
VGA Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Chipset: Intel® i211AT
Second LAN Chipset: Intel® i211AT
Wireless LAN: Optional USB WiFi 802.11 b/g
Drive Interface
Compact Flash: 1
Mini PCIe
mini PCIe
mSATA
half and/or full size mini PCIe card: full size

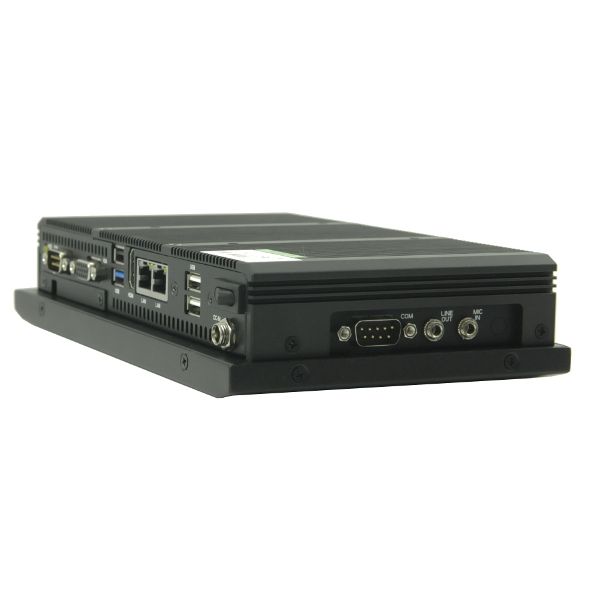

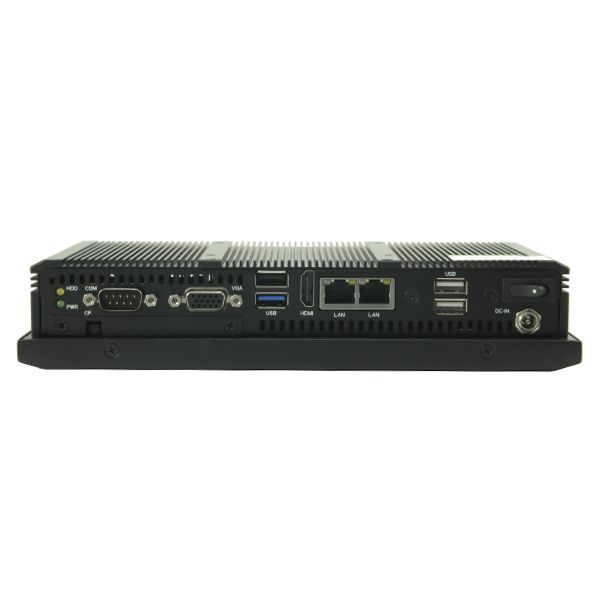

Rear IO
USB 2.0 Ports (on IO): 3
USB 3.2 Gen 1 Type A Ports (on IO): 1
Serial (Rear IO): 1
Serial 232/422/485 Ports: 1
Audio on IO
Management Features
Watch Dog
Environmental
Operating Temperature: 0ºC to 40ºC (0ºF to 104ºF )
High Humidity: 90%
Low Humidity: 00
Operating System Support
Windows 7 Ultimate (64-bit)
Windows 7 Pro (32-bit)
Windows 7 Pro (64-bit)
Windows 7 Pro (FES) 32-Bit
Windows 7 Pro (FES) 64-Bit
Windows Embedded 7 (32-Bit)
Windows Embedded 7 (64-Bit)
Windows Embedded 8 (32-bit)
Windows Embedded 8 (64-bit)
Windows 8.1 (32-bit)
Windows 8.1 (64-bit)
Windows 8.1 Pro (32-bit)
Windows 8.1 Pro (64-bit)
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 IoT Entry 2019 LTSC
Compliance of Component
CE
FCC
Warranty of Component
Motherboard Warranty: 1 Year

Display Specifications

Display
Screen Size (inches): 8
Touch Type: 5-Wire Resistive
Front Panel Rating: IP65
Aspect Ratio: 128 : 75
Native Display Resolution: 1024 x 600
Brightness (nits): 500
Display Area (H): 3.90"
Display Area (V): 7"
Aspect Ratio: 128 : 75
DisplayColors: 256 K
Contrast Ratio: 700:1
Backlight: LED
Viewing Angle(U) : 70
Viewing Angle(D) : 70
Viewing Angle(L) : 75
Viewing Angle(R) : 75
Mounting Options
Mounting Options: VESA 75mm x 75mm, Other options sold separately
Suggested Cut-Out Dimension (Width): 8.80"
Suggested Cut-Out Dimension (Height): 4.80"

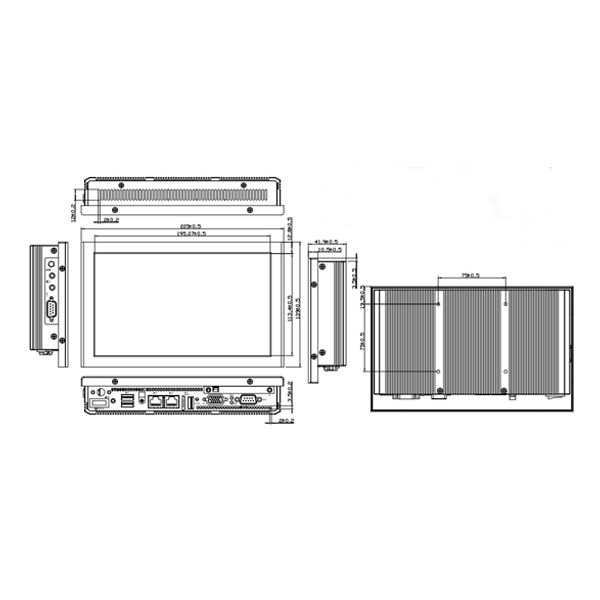

Physical
Width: 225mm
Height: 129mm
Depth: 43.40mm
Depth (Inches): 1.75
Unboxed Weight: 3lbs
Shipping Weight: 6lbs
Environmental
MTBF:
Maximum Operating Temperature: 40C
Low Operating Temp: 00
High Humidity: 90%
Low Humidity: 00
Storage Temp (High): 50C
Storage Temp (Low): -10C
Storage Humidity (High): 90%
Storage Humidity (Low): 10%
Power
Power Supply: Accepts 12VDC, 100-240VAC/12VDC 5A 60W External Power Adapter included
Power Consumption (on): 60Watts
Compliance of Component
CE
FCC
Warranty
Warranty: 1 year
Other
Built-in Chassis Power Supply: 12~28V input / 12VDC 60w External Power adapter included

Chassis Specifications:

General
Form Factor: Panel PC
Color: Black
Material: Metal/Aluminum
Material Thickness: 1mm
Slide Rails: Optional
Physical
Depth: 43.40mm
Depth (Inches): 1.75
Width: 225mm
Height: 129mm
Shipping Box - Depth: 5.50"
Shipping Box - Width: 11"
Shipping Box - Height: 11"
Shipping Weight: 6lbs
Power
Built-in Chassis Power Supply: 12~28V input / 12VDC 60w External Power adapter included
