SL-PPC-10-E3845

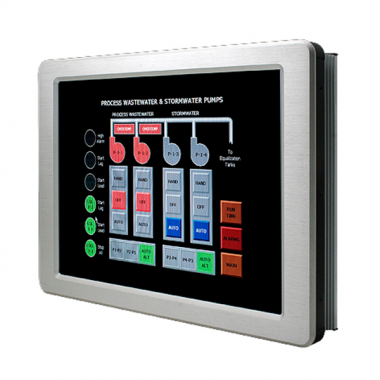

10.4" HMI Panel PC with 5-Wire Resistive Touch Screen Intel ATOM SoC, Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W, 2x LAN, 1x Serial, Up to 8GB RAM, 1x USB 2.0, 1x USB 3.2 Gen 1 Type A Ports (on IO), 1024 x 768 resolution, Power Supply Included Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter) .
Can be Long Lead Time- Please Call for Current Status
Type:
- Panel PC
- Screen:
- 10.4" 5-Wire Resistive, Native Resolution: 1024 x 768, Front Panel Rating: IP65
Motherboard:
- Featuring Intel ATOM SoC and Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
- Video: HDMI
- Audio: Onboard Audio
- Ports:
1x USB 2.0 Port( 1 Rear )
1x USB 3.2 Gen 1 Port( 1 Rear )
1x COM Port (RS232/422/485 Rear)
See specifications for more ports - Operating Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
Also Included:
- Memory: 4GB DDR3 1333MHz SODIMM RAM
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Power Supply: Included Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter)
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: Panel
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
- Chipset
- Chipset: Intel ATOM SoC
- Memory
- Memory Type: SO DIMM DDR3 1600MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: Onboard Audio
- On Board Video
- Video Chipset: Intel® Valleyview SoC integrated Graphics
- Video on IO: HDMI
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Chipset: Intel® i210IT
- Second LAN Chipset: Intel® i210IT
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 1
- Compact Flash: 1
- Mini PCIe
- mini PCIe
- mSATA
- half and/or full size mini PCIe card: full size
- Second mini PCIe
- 3G Data Support
- half and/or full size mini PCIe card: half size

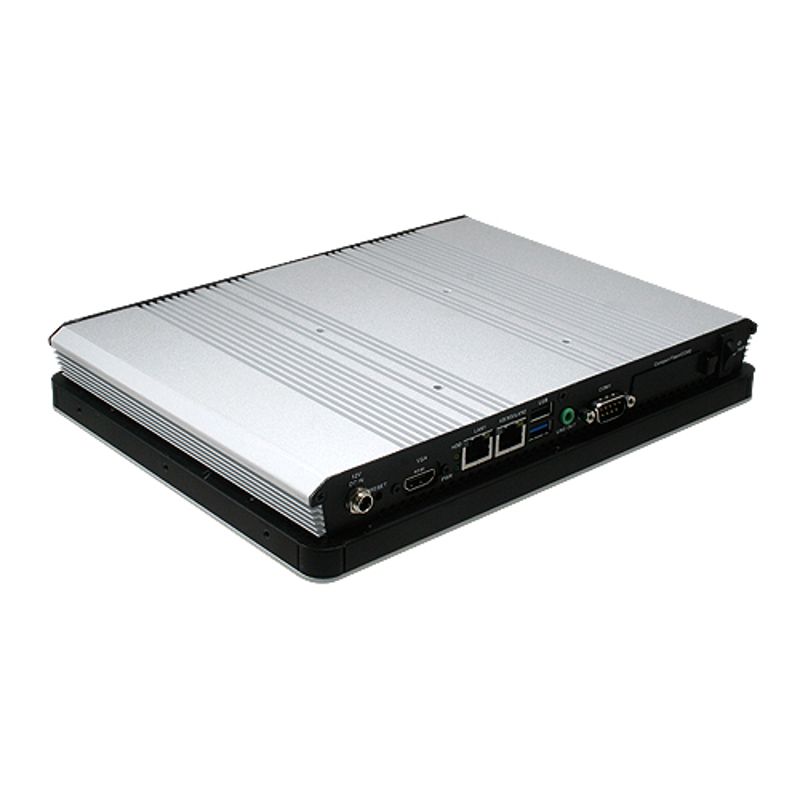

- Rear IO
- USB 2.0 Ports (on IO): 1
- USB 3.2 Gen 1 Type A Ports (on IO): 1
- Serial 232/422/485 Ports: 1
- Environmental
- Operating Temperature: -20ºC to 60ºC (-4ºF to 140ºF )
- High Humidity: 90%
- Low Humidity: 0
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT Entry
- Windows 10 IoT Entry 2019 LTSC
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year
Display Specifications
- Display
- Screen Size (inches): 10.4
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65
- Aspect Ratio: 4 : 3
- Native Display Resolution: 1024 x 768
- Brightness (nits): 500
- Display Area (H): 211.20mm
- Display Area (V): 158.40"
- Aspect Ratio: 4 : 3
- DisplayColors: 16.2 M
- Contrast Ratio: 1200:1
- Backlight: LED
- Viewing Angle(U) : 88
- Viewing Angle(D) : 88
- Viewing Angle(L) : 88
- Viewing Angle(R) : 88
- Mounting Options
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width: 259mm
- Height: 196"
- Depth: 41mm
- Depth (Inches): 1.6
- Unboxed Weight: 5lbs
- Shipping Weight: 10lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 60C
- Low Operating Temp: -20C
- High Humidity: 90%
- Low Humidity: 0
- Storage Temp (High): 60C
- Storage Temp (Low): -20C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 0
- Power
- Power Supply: Accepts 12VDC, 100-240VAC/12VDC 5A 60W External Power Adapter included
- Power Consumption (on): 60Watts
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty
- Warranty: 1 year
- Other
- Built-in Chassis Power Supply: Included Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter)
Chassis Specifications:
- General
- Form Factor: Panel PC
- Color: Silver
- Material: Metal/Aluminum
- Material Thickness: 1mm
- Slide Rails: Optional
- Expansion
- Internal 2.5" Bays: 1
- Front Ports
- USB 2.0 Port (Front): 1
- USB 3.2 Ports (Front): 1
- Front Audio Ports: 1
- Physical
- Depth: 41mm
- Depth (Inches): 1.6
- Width: 259mm
- Height: 196"
- Shipping Box - Depth: 4"
- Shipping Box - Width: 310"
- Shipping Box - Height: 250"
- Shipping Weight: 10lbs
- Power
- Built-in Chassis Power Supply: Included Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter)
