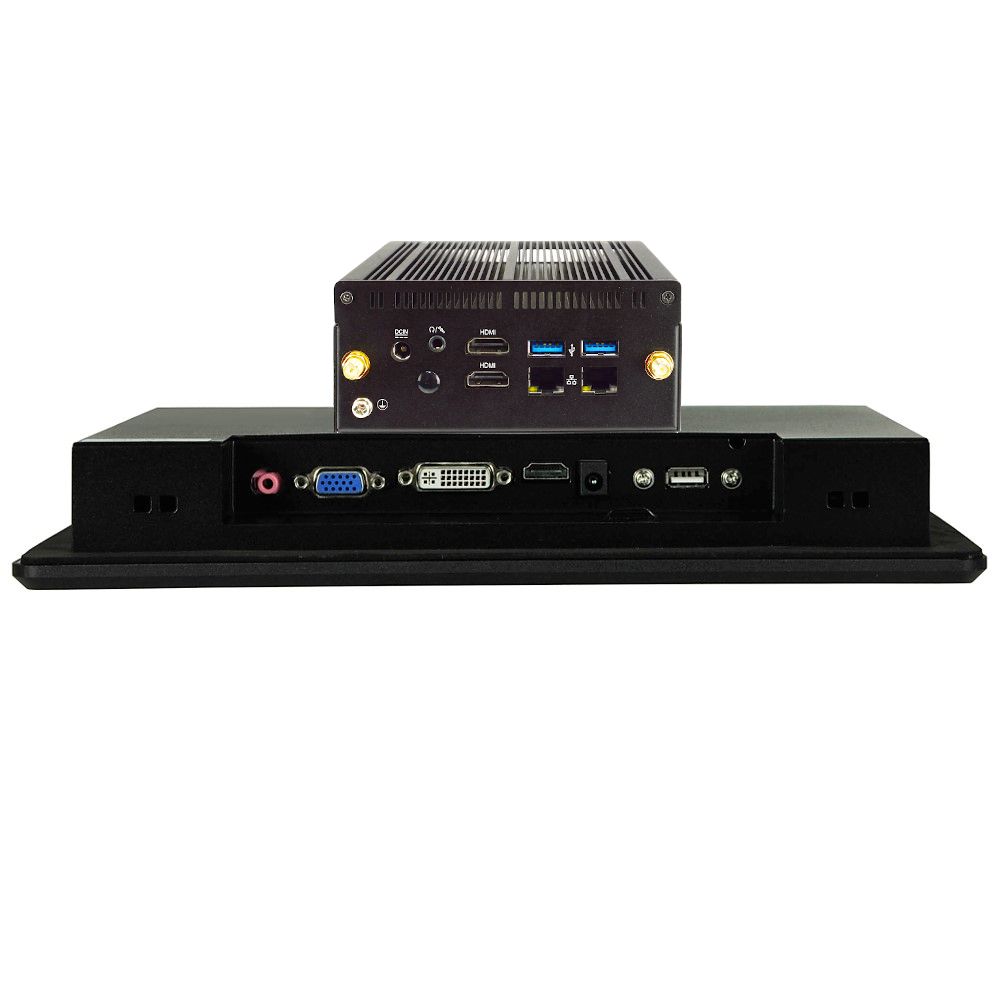

SL-PPC-10AW-J3455-H-2LAN

10" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Long Production Cycle Motherboard (Through Q3 2031) with Intel ATOM SoC, Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W, 2x GB (10/100/1000) LAN, HDD or SSD, 1x Serial, Up to 8GB RAM, 2x USB 3.0, 1280 x 800 resolution, Adapter: AC 90~240V / DC12V / 40W

LCD requires 12VDC power supply (included), Separate Computer input is wide voltage input

Type:

  • Fanless Panel PC
  • Screen:
    • 10" 5-Wire Resistive, Native Resolution: 1280 x 800, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel ATOM SoC and Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W
  • Long Production Cycle Motherboard (Through Q3 2031)
  • LAN: 2x GB (10/100/1000)
  • Video: VGA + HDMI
  • Audio: Realtek® ALC662 HD Audio
  • Ports:
    2x USB 3.0 Ports ( 2 Rear)
    1x COM Port (RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
  • Hard Drive: 256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater)
  • Power Supply: Adapter: AC 90~240V / DC12V / 40W
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: NUC (101x101 mm)
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q3 2031
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W
  • Chipset
  • Chipset: Intel ATOM SoC
  • Memory
  • Memory Type: DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 1
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: Realtek® ALC662 HD Audio
  • On Board Video
  • Video Chipset: Supported by CPU - see Embedded CPU Information
  • Video on IO: VGA + HDMI
  • VGA Port Out: 1
  • HDMI Out: 2
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek RTL8111H
  • Second LAN Chipset: Realtek® RTL8111H
  • Wireless LAN: No Integrated WLAN
  • mini PCIe
  • mSATA
  • half and/or full size mini PCIe card: full size
  • Rear IO
  • USB 3.0 Ports (on IO): 2
  • Serial 232/422/485 Ports: 1
  • Audio on IO
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry 2019 LTSC
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size (inches): 10
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16 : 9
  • Native Display Resolution: 1280 x 800
  • Brightness (nits): 300
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 216.96mm
  • Display Area (V): 135.60mm
  • Aspect Ratio: 16 : 9
  • DisplayColors: 16.2 M
  • Contrast Ratio: 800:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • Touchscreen Interface USB Port: 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): Click Available Downloads Tab > Mechanical Drawings
  • Suggested Cut-Out Dimension (Height): Click Available Downloads Tab > Mechanical Drawings
  • Physical
  • Width: Click Available Downloads Tab > Mechanical Drawings
  • Height: Click Available Downloads Tab > Mechanical Drawings
  • Depth: Click Available Downloads Tab > Mechanical Drawings
  • Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
  • Unboxed Weight: 6lbs
  • Shipping Weight: 25lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • Low Operating Temp: 00
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 12
  • Compliance of Component
  • CE
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    ETA mid-June 2018

    Industrial Display

    • Screen Size: 10"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1280 x 800
    • Brightness (nits): 300

Chassis Specifications:

  • General
  • Form Factor: NUC Box
  • Front Facing I/O
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Expansion
  • Antennae Punchout: 2
  • Front Ports
  • USB 3.0 Ports (Front): 2
  • Physical
  • Depth: 109.20mm
  • Width: 125mm
  • Height: 55.50mm
  • Shipping Box - Depth: 167mm
  • Shipping Box - Width: 158mm
  • Shipping Box - Height: 123.60mm
  • Shipping Weight: 3lbs
  • Power
  • Built-in Chassis Power Supply: Adapter: AC 90~240V / DC12V / 40W
