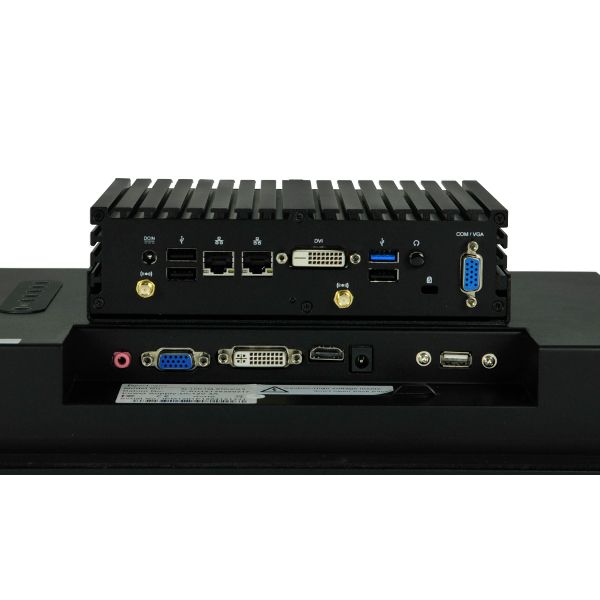

SL-PPC-12A-N2930-J

12" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Long Production Cycle Motherboard (Through Q1 2029) with Intel Celeron SoC, Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W, 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 8GB RAM, 5x USB 2.0, 1x USB 3.0, 800 x 600 resolution, +9V ~ +24V DC-in jack

New SL-LCD-12A-RTOUCH-2 Added HDMI!

Type:

  • Fanless Panel PC
  • Screen:
    • 12" 5-Wire Resistive, Native Resolution: 800 x 600, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
  • Long Production Cycle Motherboard (Through Q1 2029)
  • LAN: 2x GB (10/100/1000)
  • Video: VGA + DVI-D
  • Audio: Realtek® ALC662 HD Audio
  • Ports:
    5x USB 2.0 Ports ( 2 Front, 3 Rear)
    1x USB 3.0 Port ( 1 Rear)
    4x COM Port (2 RS232/422/485 Rear, 2 RS232/422/485 on Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)

Also Included:

  • Memory: 4GB DDR3 1600MHz SODIMM RAM 1.35V
  • Hard Drive: 120GB SSD SATA 6.0Gb/s, 500/320MB/s read/write (or greater)
  • Power Supply: +9V ~ +24V DC-in jack
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Proprietary
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q1 2029
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 1
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: Realtek® ALC662 HD Audio
  • On Board Video
  • Video Chipset: Intel HD Graphics
  • Video on IO: VGA + DVI-D
  • VGA Port Out: 1
  • DVI-D Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111G
  • Second LAN Chipset: Realtek® RTL8111G
  • Wireless LAN: Integrated Realtek 802.11 b/g/n Wireless LAN/Bluetooth 4.0 - Removable Under Networking Section
  • Drive Interface
  • SATA II Ports (3GB): 1
  • SAS 6G Ports: 1
  • mini PCIe
  • mSATA
  • USB and PCIe signals
  • half and/or full size mini PCIe card: full size
  • Rear IO
  • USB 2.0 Ports (on IO): 3
  • USB 3.0 Ports (on IO): 1
  • Serial 232/422/485 Ports: 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • Serial 232/422/485 Ports: 2
  • Management Features
  • Watch Dog
  • Environmental
  • Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry
  • Windows 10 IoT Entry 2019 LTSC
  • Compliance of Component
  • UL
  • CE
  • FCC
  • CB
  • CCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year
  • Other Features
  • Other Features:

    12V AC/DC Adapter, Power Cord, Wall bracket, DIN Rail Clip Included

    *USB 2.0 Header are used for the front USB Ports

Display Specifications

  • Display
  • Screen Size (inches): 12
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4 : 3
  • Native Display Resolution: 800 x 600
  • Brightness (nits): 400
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 246mm
  • Display Area (V): 184.50mm
  • Aspect Ratio: 4 : 3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 600:1
  • Backlight: LED
  • Viewing Angle(U) : 65
  • Viewing Angle(D) : 75
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): Click Technical Specifications Tab > Mechanical Drawings.
  • Suggested Cut-Out Dimension (Height): Click Technical Specifications Tab > Mechanical Drawings.
  • Physical
  • Width: Click Technical Specifications Tab > Mechanical Drawings.
  • Height: Click Technical Specifications Tab > Mechanical Drawings.
  • Depth: Click Technical Specifications Tab > Mechanical Drawings.
  • Depth (Inches): Click Technical Specifications Tab > Mechanical Drawings.
  • Unboxed Weight: 9lbs
  • Shipping Weight: 25lbs
  • Environmental
  • MTBF: 50000hours
  • Maximum Operating Temperature: 80C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 80C
  • Storage Temp (Low): -30C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 12Watts
  • Compliance of Component
  • CE
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 12"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 800 x 600
    • Brightness (nits): 400

Chassis Specifications:

  • General
  • Form Factor: Embedded PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Slide Rails: Optional
  • Expansion
  • Internal 2.5" Bays: 1
  • Serial Port Punchouts: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Front Audio Ports: 1
  • Physical
  • Depth: 142mm
  • Width: 185mm
  • Height: 48mm
  • Shipping Box - Depth: 118mm
  • Shipping Box - Width: 250mm
  • Shipping Box - Height: 295mm
  • Shipping Weight: 7lbs
  • Power
  • Built-in Chassis Power Supply: +9V ~ +24V DC-in jack
