SL-PPC-15A-LL2930J-S29-4LN This item is no longer available.

A newer version of this item is available: SL-PPC-15A-LL6412J-S29

15" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Long Production Cycle Motherboard (Through Q1 2029) with Intel Celeron SoC, Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W, 4x 1GbE (10/100/1000) LAN, 2x Serial, Up to 8GB RAM, 5x USB 2.0 Ports ( 2 Front, 1 Rear, 2 Internal Headers ), 1x USB 3.2 Gen 1 Port( 1 Rear ), 1024 x 768 resolution, Power Supply AC/DC Power Adapter Included.



Type:

  • Fanless Panel PC
  • Screen:
    • 15" 5-Wire Resistive, Native Resolution: 1024 x 768, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
  • Long Production Cycle Motherboard (Through Q1 2029)
  • No Available Slots
  • LAN: 4x Ports (1GbE (10/100/1000))
  • Video: Internal VGA
  • Audio: No Onboard Audio
  • Ports:
    5x USB 2.0 Ports ( 2 Front, 1 Rear, 2 Internal Headers )
    1x USB 3.2 Gen 1 Port( 1 Rear )
    2x COM Port (1 RS232 Internal Headers, 1 RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
  • Hard Drive: 256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater)
  • Power Supply: AC/DC Power Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q1 2029
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: Intel HD Graphics
  • Video on IO: Internal VGA
  • LAN
  • LAN Ports: 4
  • LAN Type: 1GbE (10/100/1000)
  • LAN Chipset: Intel® i211AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • Expansion Slots
  • PCI Express x1 Slots On Motherboard: 2
  • Mini PCIe
  • mini PCIe
  • mSATA
  • half and/or full size mini PCIe card: full size
  • Second mini PCIe
  • USB and PCIe signals (Internal)
  • half and/or full size mini PCIe card: full size

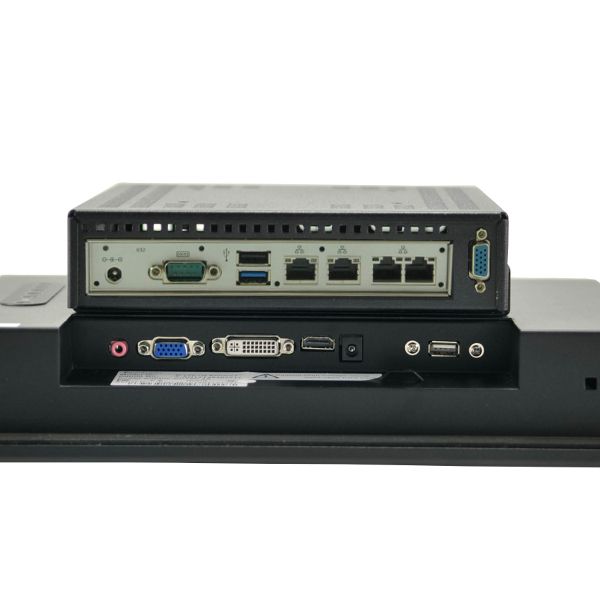

  • Rear IO
  • USB 2.0 Ports (on IO): 1
  • USB 3.0 Ports (on IO): 1
  • Serial 232/422/485 Ports: 1
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • Serial (via Headers): 1
  • FAN Connectors: 3
  • Digital I/O (8 Bit) On Headers
  • PS/2 Combo (Mouse/Keyboard) on Headers
  • Chassis Intrusion
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry
  • Windows 10 IoT Entry 2019 LTSC
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    2x PCI Express x1 Slot

    1x Full size mSATA Slot

    1x Full size mini PCI-E Slot



    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 2 Years

Display Specifications

  • Display
  • Screen Size (inches): 15
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4:3
  • Native Display Resolution: 1024 x 768
  • Brightness (nits): 450
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 304.13mm
  • Display Area (V): 228.10mm
  • Aspect Ratio: 4:3
  • DisplayColors: 16.2 M
  • Contrast Ratio: 800:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • HDMI In: 1
  • Display Port In: 1
  • Touchscreen Interface USB Port (Front): 1
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width):
  • Suggested Cut-Out Dimension (Height):
  • Physical
  • Width:
  • Height:
  • Depth:
  • Depth (Inches): Click Available Downloads Tab
  • Unboxed Weight: 11lbs
  • Shipping Weight: 30lbs
  • Environmental
  • MTBF: 70000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 85C
  • Storage Temp (Low): -30C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 12Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • CB
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Built-in Chassis Power Supply: Wide Voltage Input (9-36VDC)
  • Features:

    Industrial Display

    • Screen Size (inches): 15"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Aspect Ratio: 4:3
    • Native Display Resolution: 1024 x 768
    • Brightness (nits): 450
    • Ports: VGA Port In, DVI-I In, HDMI In
    • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
    • Wide Voltage Input (9-36VDC)

Chassis Specifications:

  • General
  • Form Factor: Embedded PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Internal 2.5" Bays: 1
  • Serial Port Punchouts: 3
  • Parallel Port Punchouts: 1
  • Front Ports
  • USB 2.0 Ports (Front): 2
  • Physical
  • Depth: 193mm
  • Depth (Inches): 7.6
  • Width: 215mm
  • Height: 45mm
  • Shipping Box - Depth: 13"
  • Shipping Box - Width: 9"
  • Shipping Box - Height: 5"
  • Shipping Weight: 5lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
