SL-PPC-15AW-LL2930A-S29

15.6" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Long Production Cycle Motherboard (Through Q1 2021) with Intel Celeron SoC, Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W, 1x GB (10/100/1000) LAN, HDD or SSD, 5x Serial, Up to 8GB RAM, 6x USB 2.0, 4x USB 3.0, 1366 x 768 resolution, 60W Power Adapter Included

15.6
  • Front
  • Front Angle

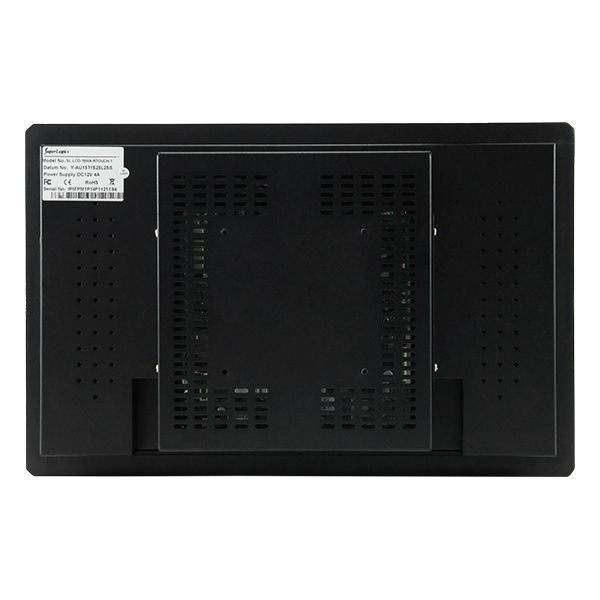

  • Back

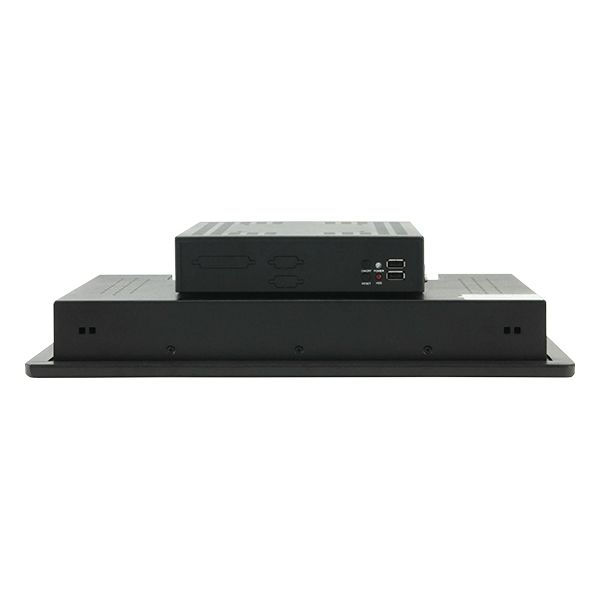

  • Top

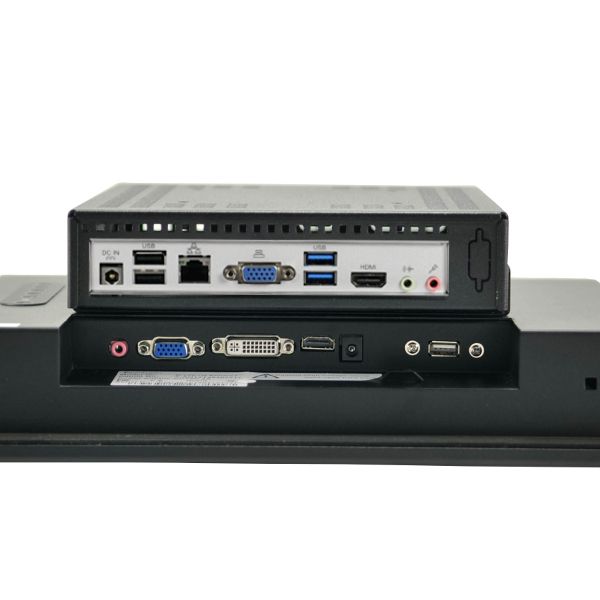

  • Bottom IO View

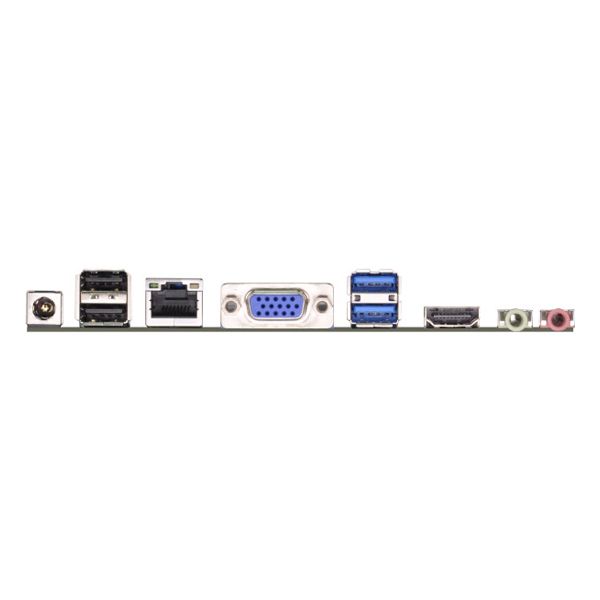

  • I/O
  • Dimensions
  • Wallmount Instructions
  • Included Accessories
  • Widescreen 16 : 9

Type:

  • Fanless Panel PC
  • Screen:
    • 15.6" 5-Wire Resistive, Native Resolution: 1366 x 768, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
  • Long Production Cycle Motherboard (Through Q1 2021)
  • No Available Slots
  • LAN: 1x GB (10/100/1000)
  • Video: VGA + HDMI
  • Audio: 5.1 channel by Realtek® ALC662
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 via internal headers )
    4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
    5x COM Ports (4 on Headers, 1 RS232/422/485 on Headers)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Memory: 4GB DDR3 1333MHz SODIMM RAM - Upgradeable
  • Hard Drive: 64GB SSD mSATA 6Gb/s - TS MSA370 - Upgradeable
  • Power Supply: 60W Power Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Expedite
Display/TouchScreen
Memory
CD/DVD/OpticalDrive
Hard Drive
Cable
Networking
Internal Speaker
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Long Production Cycle
  • Long Life:YES
  • EOL Date:Q1 2021
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: 5.1 channel by Realtek® ALC662
  • On Board Video
  • Video Chipset: Intel® 7th generation (Gen 7) Graphics
  • Video on IO: VGA + HDMI
  • VGA Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Realtek® 8111DL
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • Expansion Slots
  • PCI Express x1 Slots On Motherboard: 1
  • mini PCIe
  • mSATA
  • USB and PCIe signals
  • half and/or full size mini PCIe card: full size
  • half and/or full size mini PCIe card: half size
  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.0 Ports (on IO): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.0 Ports (on Headers): 2
  • Serial (via Headers): 4
  • Serial 232/422/485 Ports: 1
  • Parallel Ports: 1
  • FAN Connectors: 3
  • Digital I/O (8 Bit) On Headers
  • Audio on Headers
  • LVDS
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows 7 Ultimate (64-bit)
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (32 Bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (32 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry 32-bit
  • Windows 10 IoT Ent-Entry
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    1x PCI Express 2.0 x1 Slot

  • Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size: 15.6"
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Color: Black
  • Native Display Resolution: 1366 x 768
  • Brightness (nits): 300
  • Display Area (H): 344mm
  • Display Area (V): 193mm
  • Aspect Ratio: 16:9
  • DisplayColors: 16.2 M
  • Contrast Ratio: 400:1
  • Backlight: TFT, Active Matrix (CCFL)
  • Viewing Angle(U) : 70
  • Viewing Angle(D) : 70
  • Viewing Angle(L) : 60
  • Viewing Angle(R) : 60
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • Mounting Options
  • Bezel Mounting Hardware Included
  • Suitable for Mounting in Cut-Out
  • Suggested Cut-Out Dimension (Width): 382mm
  • Suggested Cut-Out Dimension (Height): 231mm
  • Physical
  • Width: 271mm
  • Height: 422mm
  • Depth: 56mm
  • Depth (Inches): 2.2
  • Shipping Weight: 30lbs
  • Environmental
  • MTBF: 30000hours
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temperature: 0ºC to 60ºC (32ºF to 140ºF)
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 16Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Features:

    Industrial Display

    • Screen Size: 15.6"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1366 x 768
    • Brightness (nits): 300
  • Warranty: 1 year

Chassis Specifications:

  • General
  • Form Factor: Embedded PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Internal 2.5" Bays: 1
  • Serial Port Punchouts: 3
  • Parallel Port Punchouts: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Physical
  • Depth: 193mm
  • Depth (Inches): 7.6
  • Width: 215mm
  • Height: 45mm
  • Shipping Box - Depth: 13"
  • Shipping Box - Width: 9"
  • Shipping Box - Height: 5"
  • Shipping Weight: 5lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: 60W Power Adapter Included
