SL-PPC-17A-LLH110A-S17

A newer version of this item is available: SL-PPC-17A-LLH310I-S17

17" HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Long Production Cycle Motherboard (Through Q1 2030) with Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x GB (10/100/1000) LAN, 4x Serial, Up to 32GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 4 Rear ), 1280 x 1024 resolution, Power Supply AC/DC Power Adapter Included.



Type:

  • Panel PC
  • Screen:
    • 17" 5-Wire Resistive, Native Resolution: 1280 x 1024, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel H110 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
  • Long Production Cycle Motherboard (Through Q1 2030)
  • No Available Slots
  • LAN: 2x Ports (GB (10/100/1000))
  • Video: VGA + DisplayPort + HDMI
  • Audio: Intel® HD Audio
  • Ports:
    4x USB 2.0 Ports ( 2 Front, 2 Internal Headers )
    4x USB 3.2 Gen 1 Ports ( 4 Rear )
    4x COM Ports (1 RS232 Rear, 2 RS232 Internal Headers, 1 RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
  • Memory: 8GB DDR4 2666MHz SODIMM RAM
  • Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
  • Power Supply: 160w output, 12v input DC-DC Power Supply - AC Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty
Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q1 2030
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
  • Chipset
  • Chipset: Intel H110 Chipset
  • Memory
  • Memory Type: SO DIMM DDR4 2133MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: Intel® HD Audio
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + DisplayPort + HDMI
  • VGA Port Out: 1
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Second LAN Chipset: Intel® i210AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SAS 6G Ports: 4
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • Mini PCIe
  • mini PCIe
  • mSATA
  • USB and PCIe signals (Internal)
  • half and/or full size mini PCIe card: full/half size

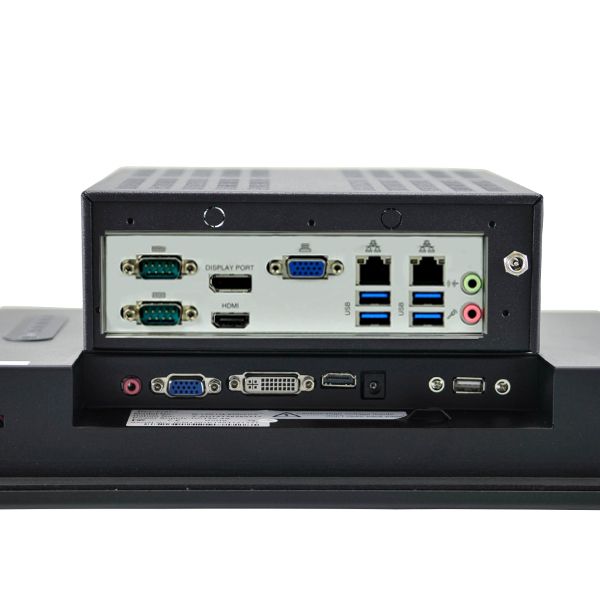

  • Rear IO
  • USB 3.2 Gen 1 Type A Ports (on IO): 4
  • Serial (Rear IO): 1
  • Serial 232/422/485 Ports: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • Serial (via Headers): 2
  • LVDS
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (32 Bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (32 Bit)
  • Windows 10 Pro (64-Bit)
  • SL-Windows 11PRO to 10PRO 32bit
  • SL-Windows 11PRO to 10PRO 64bit
  • Windows 10 IoT Value
  • Windows 10 IoT Ent
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Windows 10 IoT 2021 LTSC Value
  • Windows 10 IoT 2021 LTSC High End
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    1 x PCIe 3.0 x16 (in x16) slot

    1 (half/full size, supports PCIe x1 and USB device)

    1 (full size, shared SATA and USB device)

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size (inches): 17
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 4:3
  • Native Display Resolution: 1280 x 1024
  • Brightness (nits): 250
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 337.92mm
  • Display Area (V): 270.33mm
  • Aspect Ratio: 4:3
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • HDMI In: 1
  • Display Port In: 1
  • Touchscreen Interface USB Port (Front): 1
  • Mounting Options
  • Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width):
  • Suggested Cut-Out Dimension (Height):
  • Physical
  • Width:
  • Height:
  • Depth:
  • Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
  • Unboxed Weight: 12lbs
  • Shipping Weight: 35lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • Low Operating Temp: 00
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): 00
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Power Consumption (on): 13Watts
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Built-in Chassis Power Supply: Wide DC Voltage Input: 9 - 36VDC
  • Features:

    Industrial Display

    • Screen Size: 17"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1280 x 1024
    • Brightness (nits): 250
    • Wide DC Voltage Input: 9 - 36VDC

Chassis Specifications:

  • General
  • Form Factor: Micro PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Expansion
  • Internal 2.5" Bays: 1
  • Serial Port Punchouts: 2
  • Parallel Port Punchouts: 1
  • Antennae Punchout: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 1
  • Physical
  • Depth: 8.27"
  • Depth (Inches): 8.27
  • Width: 7.60"
  • Height: 2.60"
  • Shipping Box - Depth: 13"
  • Shipping Box - Width: 9"
  • Shipping Box - Height: 5"
  • Shipping Weight: 8lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
