SL-PPC-19A-LLH110A-S19

A newer version of this item is available: SL-PPC-19A-LLH310I-S19

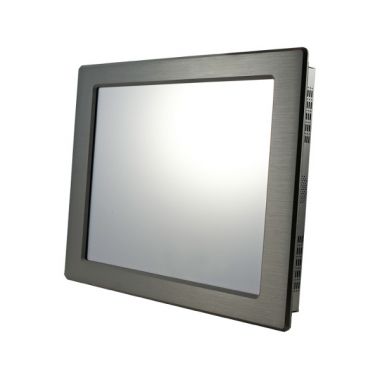

19" HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Long Production Cycle Motherboard (Through Q1 2030) with Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 32GB RAM, 4x USB 2.0, 4x USB 3.0, 1x Expansion Slots,1280 x 1024 resolution, 160w output, 12v input DC-DC Power Supply - AC Adapter Included

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Panel PC
Screen:
- 19" 5-Wire Resistive, Native Resolution: 1280 x 1024, Front Panel Rating: IP65 / NEMA4
Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

Featuring Intel H110 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
Long Production Cycle Motherboard (Through Q1 2030)
Low Profile Slots:
1 - PCIe x16
LAN: 2x GB (10/100/1000)
Video: VGA + DisplayPort + HDMI
Audio: Intel® HD Audio

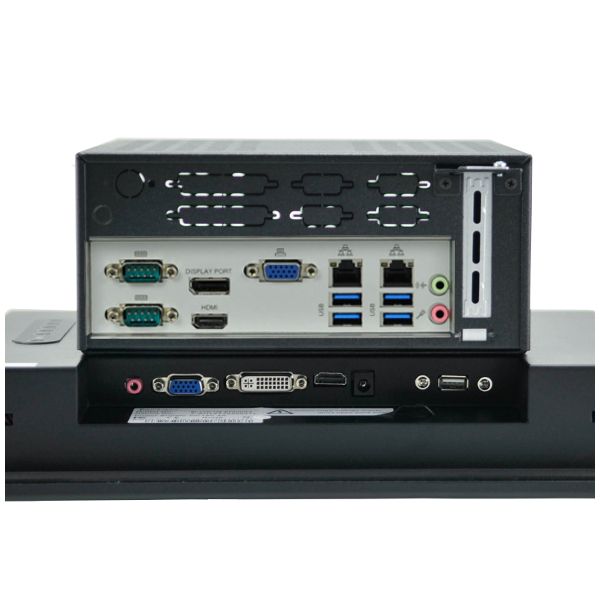

Ports:
4x USB 2.0 Ports ( 2 Front2 via internal headers )
4x USB 3.0 Ports ( 4 Rear)
4x COM Ports (1 Rear, 2 on Headers, 1 RS232/422/485 Rear)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (0ºF to 140ºF)

Also Included:

Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
Memory: 4GB DDR4 2400MHz SODIMM RAM
Hard Drive: 250GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater)
Power Supply: 160w output, 12v input DC-DC Power Supply - AC Adapter Included
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order Rush build ships in 4-5 business days. Non-rush build time is approx. 4 weeks. Shippin show $100.00

Processor

G3900 - 2.8GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics 510 (51W) (ERM) show $68.00

G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better show $138.00

i3-6100 - 3.7GHz Intel Dual Core w/ Hyper-Threading - 3MB Cache, HD Graphics 530 (51W) (ERM) show $203.00

i5-6500 - 3.2GHz (up to 3.6GHz) Intel Quad Core - 6MB Cache, HD Graphics 530 (65W) (ERM) show $315.00

i7-6700 - 3.4GHz (up to 4.0GHz) Intel Quad Core - 8MB Cache, HD Graphics 530 (65W) (ERM) show $485.00

i5-7500 - 3.4GHz (up to 3.8GHz) Intel Quad Core - 6MB Cache, HD Graphics 630 (65W) (ERM) No WIN 7 Su show $366.00

i7-7700 - 3.6GHz (up to 4.2GHz) Intel Quad Core - 8MB Cache, HD Graphics 630 (65W) (ERM) No WIN 7 Su show $550.00

Memory

x 4GB DDR4 2400MHz SODIMM RAM show $30.00

x 8GB DDR4 2400MHz SODIMM RAM show $68.00

x 8GB DDR4 2666MHz SODIMM RAM show $56.00

x 16GB DDR4 2666MHz SODIMM RAM show $100.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

Hard Drive

250GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater) show $70.00

500GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater) show $120.00

2.0TB HDD SATA 6.0b/s 5400RPM 128MB Buffer 2.5" - Seagate show $136.00

120GB SSD SATA 6.0Gb/s, 500/320MB/s read/write (or greater) show $51.00

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $93.00

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $106.00

1.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $150.00

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $284.00

480GB mSATA SSD SATA 6.0Gb/s, 520/500MB/s read/write (or greater) show $120.00

Cable

Add 1 x COM port to the configuration - Requires 1 available DB9 knockout per cable (per system) show $11.00 each

Add 2 USB 2.0 Female Ports via internal USB header cable show $9.00 each

3 ft HDMI® to DVI-D Cable - M/M show $6.00 each

6 ft HDMI® to DVI-D Cable - M/M show $17.00 each

DisplayPort to DVI-D Video Adapter Converter *DVI-D (digital only, will not work with a DVI-I to VGA show $15.00 each

DisplayPort® to HDMI® Video Adapter Converter show $29.00 each

DisplayPort to VGA Video Adapter Converter show $33.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers. show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile.. show $43.00 each

Serial PCIe Card - 1 Port, RS-232 25pin 16550 UARTs - Low Profile Part Delay: No ETA show $75.00 each

Serial PCIe Card, 9pin 16550 UARTs - 2 Ports, Low Profile show $96.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP Mode - 1 Port, Low Profile show $69.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $65.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Networking

USB 2.0 - Mini Dual Band Wireless-AC Network Adapter show $51.00 each

PCIe x1 - WiFi 6 802.11ax Bluetooth 5.0 - Wi-Fi/Bluetooth Combo Adapter - 2.93 Gbit/s - 2.40 GHz ISM - show $85.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter - Full Height or Low Profile show $93.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $201.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile Part Delay: ETA June 17, 2022 show $348.00 each

PCIe x4 - 2.5Gbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Profile show $81.00 each

PCIe x4 - 5Gbps Single Port Network Adapter, 5GBASE-T/NBASE-T - Full Height or Low Profile show $222.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile Part Delay: No ETA show $514.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height Part Delay: No ETA show $1,233.00 each

Internal Speaker

None show Included

Internal Speaker For Industrial Mini Box (S17/S19/S29) show $16.00

Power Supply

160w output, 12v input DC-DC Power Supply - AC Adapter Included show $50.00

125W wide (6V - 24V) intelligent automotive power supply for hardware power-on. No AC/DC Power Adapt show $44.00

Keyboard/Mouse

None show Included

USB Keyboard/Mouse - Black/Silver show $25.00

Wireless Keyboard/Mouse show $51.00

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $96.00

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal show $83.00

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $149.00

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse show $135.00

USB Keyboard/Mouse - Waterproof, NEMA4 show $372.00

USB Keyboard/Mouse - Waterproof, IP67/NEMA4x show $539.00

External Power

None show Included

Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outletsPart Delay: No ETA show $106.00

Uninterruptable Power Supply - 550VA, 120V AC, 330Watt, USB, 8 outlets show $118.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & show $577.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MiniITX
Long Production Cycle
Long Life: YES
EOL Date: Q1 2030
Supported CPU
Number of Processors: 1
Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
Chipset
Chipset: Intel H110 Chipset
Memory
Memory Type: SO DIMM DDR4 2133MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 32GB
On Board Audio
Audio Type: Intel® HD Audio
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: VGA + DisplayPort + HDMI
VGA Port Out: 1
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type: GB (10/100/1000)
LAN Chipset: Intel® i219V
Second LAN Chipset: Intel® i210AT
Wireless LAN: No Integrated WLAN
Drive Interface
SAS 6G Ports: 4
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
mini PCIe
mSATA
USB and PCIe signals
half and/or full size mini PCIe card: full/half size
Rear IO
USB 3.0 Ports (on IO): 4
Serial (Rear IO): 1
Serial 232/422/485 Ports: 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
Serial (via Headers): 2
LVDS
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 0ºC to 60ºC (0ºF to 140ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
Windows 7 Ultimate (64-bit)
Windows 7 Pro (32-bit)
Windows 7 Pro (64-bit)
Windows 7 Pro (FES) 32-Bit
Windows 7 Pro (FES) 64-Bit
SL-Windows 10PRO to 7PRO 32-bit
SL-Windows 10PRO to 7PRO 64-bit
Windows Embedded 7 (32-Bit)
Windows Embedded 7 (64-Bit)
Windows 8.1 (32-bit)
Windows 8.1 (64-bit)
Windows 8.1 Pro (32-bit)
Windows 8.1 Pro (64-bit)
Windows Embedded 8 (32-bit)
Windows Embedded 8 (64-bit)
Windows 10 Home (32 Bit)
Windows 10 Home (64 Bit)
Windows 10 Pro (32 Bit)
Windows 10 Pro (64-Bit)
Windows 10 IoT Value
Windows 10 IoT Ent
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
UL
CE
RoHS
FCC
Other Features
Other Features:
1 x PCIe 3.0 x16 (in x16) slot

1 (half/full size, supports PCIe x1 and USB device)

1 (full size, shared SATA and USB device)

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year

Display Specifications

Display
Screen Size (inches): 19
Touch Type: 5-Wire Resistive
Front Panel Rating: IP65 / NEMA4
Aspect Ratio: 5 : 4
Native Display Resolution: 1280 x 1024
Brightness (nits): 350
Screen Refresh Rate: 60Hz
Display Area (H): 376.32mm
Display Area (V): 301.07mm
Aspect Ratio: 5 : 4
DisplayColors: 16.7 M
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle(U) : 80
Viewing Angle(D) : 80
Viewing Angle(L) : 80
Viewing Angle(R) : 80
Connectivity
VGA Port In: 1
DVI-I In: 1
HDMI In: 1
Touchscreen Interface USB Port: 1
Mounting Options
Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
Suggested Cut-Out Dimension (Width): Click Available Downloads Tab > Mechanical Drawings
Suggested Cut-Out Dimension (Height): Click Available Downloads Tab > Mechanical Drawings
Physical
Width: Click Available Downloads Tab > Mechanical Drawings
Height: Click Available Downloads Tab > Mechanical Drawings
Depth: Click Available Downloads Tab > Mechanical Drawings
Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
Unboxed Weight: 14lbs
Shipping Weight: 40lbs
Environmental
MTBF: 30000hours
Maximum Operating Temperature: 50C
Low Operating Temp: 00
High Humidity: 90%
Low Humidity: 8%
Storage Temp (High): 60C
Storage Temp (Low): -10C
Storage Humidity (High): 90%
Storage Humidity (Low): 8%
Power
Power Supply: AC 100~240V/12V DC
Power Consumption (on): 18Watts
Compliance of Component
CE
RoHS
CCC
Warranty
Warranty: 1 year
Other
Features:
Industrial Display
- Screen Size: 19"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 350

Chassis Specifications:

General
Form Factor: Embedded PC
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: Mini ITX
Expansion
Low Profile Slots: 1
Max Card Depth: 7.5""
Internal 2.5" Bays: 2
Serial Port Punchouts: 2
Parallel Port Punchouts: 1
Front Ports
USB 2.0 Port (Front): 2
Cooling System
Maximum Fan Count: 2
Physical
Depth: 8.30"
Depth (Inches): 8.27
Width: 8"
Height: 3.50"
Shipping Box - Depth: 150mm
Shipping Box - Width: 380mm
Shipping Box - Height: 27mm
Shipping Weight: 13lbs
Other Features
Chassis Warranty: 1 Year
Power
Built-in Chassis Power Supply: Power Adapter Included

Available Downloads

SuperLogics CAD Legal Disclaimer

By downloading a CAD drawing or multiple CAD drawings (collectively as may be downloaded by any requestor on behalf of the Company, the "CAD Drawings"), the requestor agrees to use such CAD Drawings only subject to these Use Restrictions Terms ("Use Terms") and warrants that it is a customer of SuperLogics, Inc. or is exploring designing SuperLogics products into its products ("Company"). All downloaded information remains SuperLogics’ property. For clarity, Company does not acquire any intellectual property rights, including licenses, under these Use Terms. Company agrees not to use, reverse engineer, decompile or disassemble any downloaded CAD Drawings. Information is provided "AS IS" and SuperLogics disclaims all warranties regarding Confidential Information disclosed hereunder and nothing herein will create any rights or commitments to enter into any business transaction. Any dispute arising out of or connected with these Use Terms, including a dispute as to the validity or existence thereof shall be subject to the sole and exclusive jurisdiction of the Massachusetts courts.

Superlogics SL-PPC-19A-s19 Complete System (File Type: STEP)

SL-LCD-19A-RTOUCH-2

Resistive / Infrared Touchscreen Driver for Windows

(Size: 10.1 MB)

Windows 10 Windows 8.1 Windows 8 Windows Embedded 8 Embedded 8.1 Industry Embedded 8.1 Pro Embedded 8 Standard Windows 7 Windows Embedded 7 Embedded Enterprise 7 Embedded Standard 7 Embedded POSReady 7 Windows XP Windows Embedded POSReady 2009 Windows 2000

SuperLogics 19A Mechanical Drawings, Also includes Panel PC Drawings for SL-PPC-19A-*-S17, SL-PPC-19A-*-S18, SL-PPC-19A-*-S19, SL-PPC-19A-*-S29 (File Type: PDF)

SuperLogics LCD-19A 3D Drawing - MONITOR ONLY (File Type: STEP)
