SL-PPC-19AW-LL2930J-S29-4LN

19" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Long Production Cycle Motherboard (Through Q1 2019) with Intel Celeron SoC, Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W, 4x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 8GB RAM, 5x USB 2.0, 1x USB 3.0, 1366 x 768 resolution, AC/DC Power Adapter Included

19
  • Front
  • Front Angle
  • Bottom View
  • Bottom Close Up

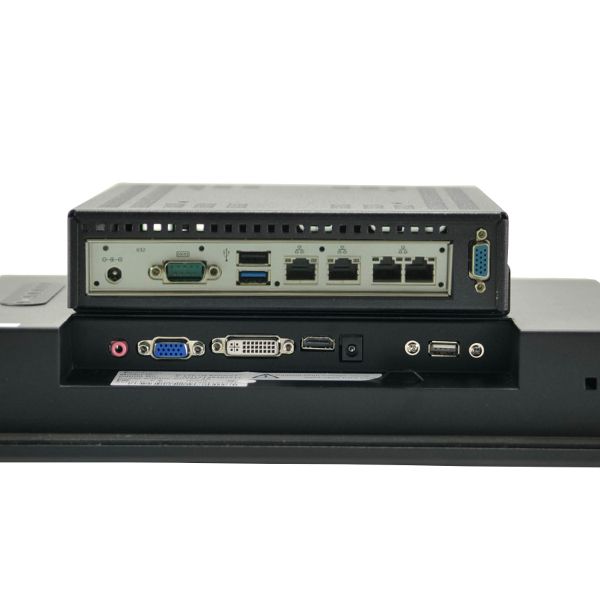

  • I/O
  • Internal
  • Dimensions (LCD Only)
  • Wallmount Instructions
  • Included Accessories

Type:

  • Fanless Panel PC
  • Screen:
    • 19" 5-Wire Resistive, Native Resolution: 1366 x 768, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
  • Long Production Cycle Motherboard (Through Q1 2019)
  • No Available Slots
  • LAN: 4x GB (10/100/1000)
  • Video: Internal VGA
  • Audio: No Onboard Audio
  • Ports:
    5x USB 2.0 Ports ( 2 Front, 1 Rear, 2 via internal headers )
    1x USB 3.0 Port ( 1 Rear )
    2x COM Port (1 on Headers, 1 RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Memory: 4GB DDR3 1600MHz SODIMM RAM - Upgradeable
  • Hard Drive: 120GB mSATA SSD SATA 6.0Gb/s, 520/320MB/s read/write (or greater) - Upgradeable
  • Power Supply: AC/DC Power Adapter Included
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Display/TouchScreen
Memory
CD/DVD/OpticalDrive
Hard Drive
Cable
Networking
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Long Production Cycle
  • Long Life:YES
  • EOL Date:Q1 2019
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: Intel HD Graphics
  • Video on IO: Internal VGA
  • LAN
  • LAN Ports: 4
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i211AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • Expansion Slots
  • PCI Express x1 Slots On Motherboard: 2
  • mini PCIe
  • mSATA
  • half and/or full size mini PCIe card: full size
  • Second mini PCIe
  • USB and PCIe signals
  • half and/or full size mini PCIe card: full size
  • Rear IO
  • USB 2.0 Ports (on IO): 1
  • USB 3.0 Ports (on IO): 1
  • Serial 232/422/485 Ports: 1
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • Serial (via Headers): 1
  • FAN Connectors: 3
  • Digital I/O (8 Bit) On Headers
  • PS/2 Combo (Mouse/Keyboard) on Headers
  • Chassis Intrusion
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Ent-Entry
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    2x PCI Express x1 Slot

    1x Full size mSATA Slot

    1x Full size mini PCI-E Slot



    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 2 Years

Display Specifications

  • Display
  • Screen Size (inches): 19
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16:9
  • Native Display Resolution: 1366 x 768
  • Brightness (nits): 250
  • Display Area (H): 409.8mm
  • Display Area (V): 230.4mm
  • Aspect Ratio: 16:9
  • DisplayColors: 16.7 M
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 85
  • Viewing Angle(R) : 85
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width): 472mm
  • Suggested Cut-Out Dimension (Height): 292mm
  • Width: 332mm
  • Height: 512mm
  • Depth: 56.8mm
  • Depth (Inches): 2.2
  • Unboxed Weight: 14lbs
  • Shipping Weight: 40lbs
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -10C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Environmental
  • Power Consumption (on): 12Watts
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    Industrial Display

    • Screen Size: 18.5"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1366 x 768
    • Brightness (nits): 250

Chassis Specifications:

  • General
  • Form Factor: Embedded PC
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Internal 2.5" Bays: 1
  • Serial Port Punchouts: 3
  • Parallel Port Punchouts: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Physical
  • Depth: 193mm
  • Depth (Inches): 7.6
  • Width: 215mm
  • Height: 45mm
  • Shipping Box - Depth: 13"
  • Shipping Box - Width: 9"
  • Shipping Box - Height: 5"
  • Shipping Weight: 5lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
  • Power
  • Built-in Chassis Power Supply: AC/DC Power Adapter Included
