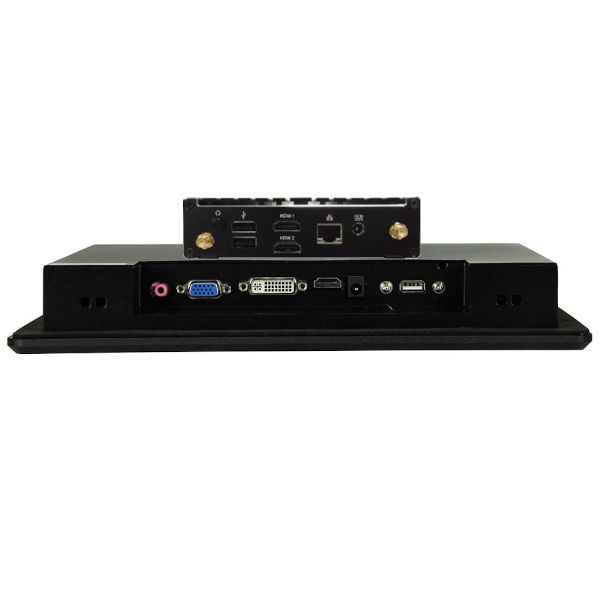

SL-PPC-10AW-N2930-1LAN-AC

10" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen and IP65 / NEMA4 Rated Front Panel; Long Production Cycle Motherboard (Through Q1 2029) with Intel Celeron SoC, Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W, 1x GB (10/100/1000) LAN, WIFI,Up to 8GB RAM, 2x USB 2.0 Ports ( 2 Rear ), 1x USB 3.2 Gen 1 Port( 1 Front ), 1280 x 800 resolution, Power Supply 9V - 24V DC In Jack.



Type:

  • Fanless Panel PC
  • Screen:
    • 10" 5-Wire Resistive, Native Resolution: 1280 x 800, Front Panel Rating: IP65 / NEMA4
  • Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
  • Long Production Cycle Motherboard (Through Q1 2029)
  • LAN: 1x Ports (GB (10/100/1000))
  • WiFi: Wireless AC
  • Video: HDMI
  • Audio: Onboard Audio
  • Ports:
    2x USB 2.0 Ports ( 2 Rear )
    1x USB 3.2 Gen 1 Port( 1 Front )
    See specifications for more ports
  • Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)

Also Included:

  • Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
  • Hard Drive: 256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater)
  • Power Supply: 9V - 24V DC In Jack
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty
Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: NUC (101x101 mm)
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q1 2029
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 1
  • Maximum Memory: 8GB
  • On Board Audio
  • Audio Type: Onboard Audio
  • On Board Video
  • Video Chipset: Supported by CPU - see Embedded CPU Information
  • Video on IO: HDMI
  • HDMI Out: 2
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® 82574L
  • Wireless LAN: Wireless AC
  • Expansion Slots
  • mSATA
  • half and/or full size mini PCIe card: full size
  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • Headers
  • USB 3.2 Gen 1 Ports (on Headers): 1
  • Environmental
  • Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF )
  • High Humidity: 95%
  • Low Humidity: 10%
  • Operating System Support
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 10 IoT 2021 LTSC Entry
  • SL-Windows 11PRO to 10PRO 32bit
  • SL-Windows 11PRO to 10PRO 64bit
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year

Display Specifications

  • Display
  • Screen Size (inches): 10
  • Touch Type: 5-Wire Resistive
  • Front Panel Rating: IP65 / NEMA4
  • Aspect Ratio: 16 : 9
  • Native Display Resolution: 1280 x 800
  • Brightness (nits): 300
  • Screen Refresh Rate: 60Hz
  • Display Area (H): 216.96mm
  • Display Area (V): 135.60mm
  • Aspect Ratio: 16 : 9
  • DisplayColors: 16.2 M
  • Contrast Ratio: 800:1
  • Backlight: LED
  • Viewing Angle(U) : 80
  • Viewing Angle(D) : 80
  • Viewing Angle(L) : 80
  • Viewing Angle(R) : 80
  • Connectivity
  • VGA Port In: 1
  • DVI-I In: 1
  • HDMI In: 1
  • Touchscreen Interface USB Port (Front): 1
  • Mounting Options
  • Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
  • Suggested Cut-Out Dimension (Width):
  • Suggested Cut-Out Dimension (Height):
  • Physical
  • Width:
  • Height:
  • Depth:
  • Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
  • Unboxed Weight: 6lbs
  • Shipping Weight: 25lbs
  • Environmental
  • MTBF: 30000hours
  • Maximum Operating Temperature: 50C
  • High Humidity: 90%
  • Low Humidity: 8%
  • Storage Temp (High): 60C
  • Storage Temp (Low): -20C
  • Storage Humidity (High): 90%
  • Storage Humidity (Low): 8%
  • Power
  • Power Supply: AC 100~240V/12V DC
  • Compliance of Component
  • CE
  • CCC
  • Warranty
  • Warranty: 1 year
  • Other
  • Features:

    ETA mid-June 2018

    Industrial Display

    • Screen Size: 10"
    • Touch Type: 5-Wire Resistive
    • Front Panel Rating: IP65 / NEMA4
    • Native Display Resolution: 1280 x 800
    • Brightness (nits): 300

Chassis Specifications:

  • General
  • Form Factor: NUC Box
  • Front Facing I/O
  • Color: Black
  • Material: Steel & Plastic
  • Material Thickness: 1mm
  • Front Ports
  • USB 3.2 Ports (Front): 1
  • RS232 COM Ports (Front): 1
  • Physical
  • Depth: 109mm
  • Depth (Inches): 4.295
  • Width: 129mm
  • Height: 34mm
  • Shipping Box - Depth:
  • Shipping Box - Width:
  • Shipping Box - Height:
  • Shipping Weight:
  • Power
  • Built-in Chassis Power Supply: 9V - 24V DC In Jack
