SL-PPC-19AW-J1900B-S17 This item is no longer available.

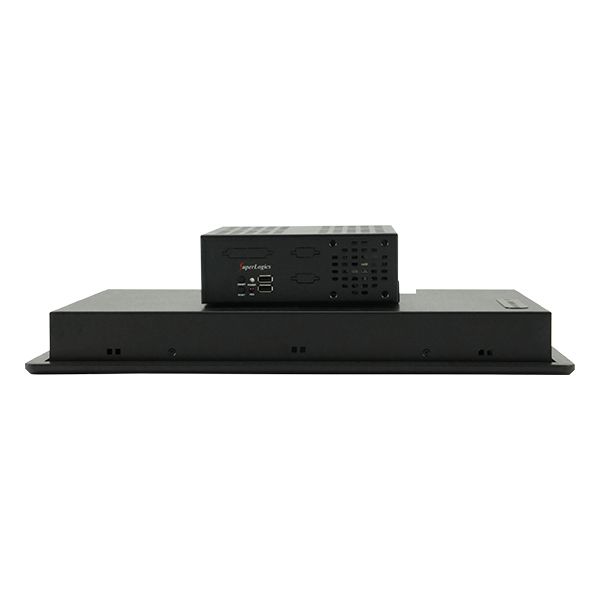

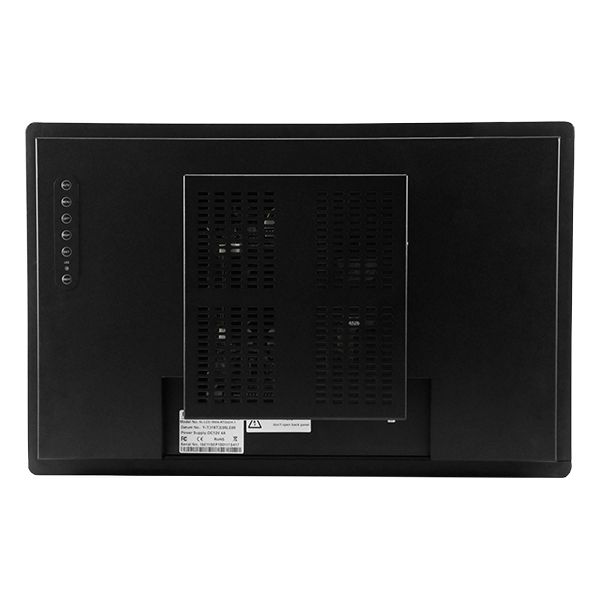

19" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen Intel Celeron SoC, Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W, 1x GB (10/100/1000) LAN, 2x Serial, Up to 16GB RAM, 4x USB 2.0 Ports ( 1 Front, 3 Rear ), 1x USB 3.2 Gen 1 Port( 1 Rear ), 1366 x 768 resolution, Power Supply AC/DC Power Adapter Included.
Widescreen 16 : 9
Type:
- Fanless Panel PC
- Screen:
- 19" 5-Wire Resistive, Native Resolution: 1366 x 768, Front Panel Rating: IP65 / NEMA4
- Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
- No Available Slots
- LAN: 1x Ports (GB (10/100/1000))
- Video: VGA + HDMI
- Audio: 5.1 channel by Realtek® ALC662

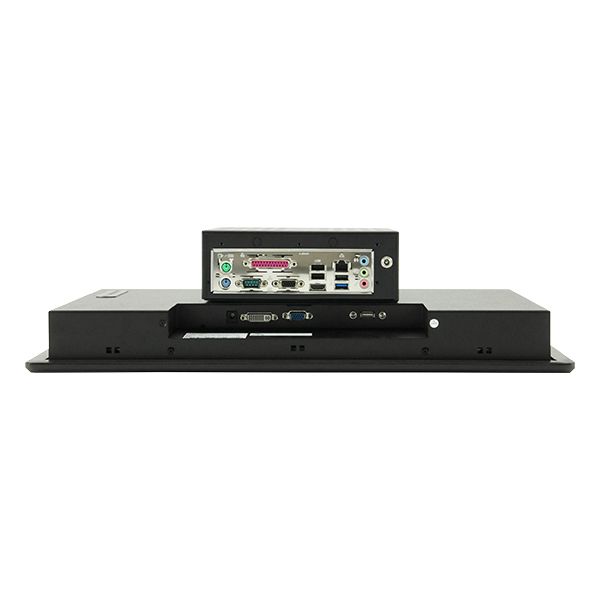

- Ports:
4x USB 2.0 Ports ( 1 Front, 3 Rear )
1x USB 3.2 Gen 1 Port( 1 Rear )
2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
1x Parallel Port (Rear)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
Display Specifications
- Display
- Screen Size (inches): 19
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 16:9
- Native Display Resolution: 1366 x 768
- Brightness (nits): 250
- Screen Refresh Rate: 60Hz
- Display Area (H): 409.80mm
- Display Area (V): 230.40mm
- Aspect Ratio: 16:9
- DisplayColors: 16.7 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 85
- Viewing Angle(R) : 85
- Connectivity
- VGA Port In: 1
- DVI-I In: 1
- HDMI In: 1
- Touchscreen Interface USB Port (Front): 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
- Unboxed Weight: 14lbs
- Shipping Weight: 40lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 60C
- Storage Temp (Low): -10C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 12Watts
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 18.5"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1366 x 768
- Brightness (nits): 250
