SL-1U-AH270M-LG

A newer version of this item is available: SL-1U-AH370M-LG

1U Rack Mount Industrial PC - Rackmount featuring Intel H270 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 1x GB (10/100/1000) LAN, HDD or SSD, 1x Serial, Up to 64GB RAM, 6x USB 2.0, 8x USB 3.1, 260W ATX12V Power Supply

1U Rack Mount Industrial PC - Rackmount featuring Intel H270 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 1x GB (10/100/1000) LAN, HDD or SSD, 1x Serial, Up to 64GB RAM, 6x USB 2.0, 8x USB 3.1

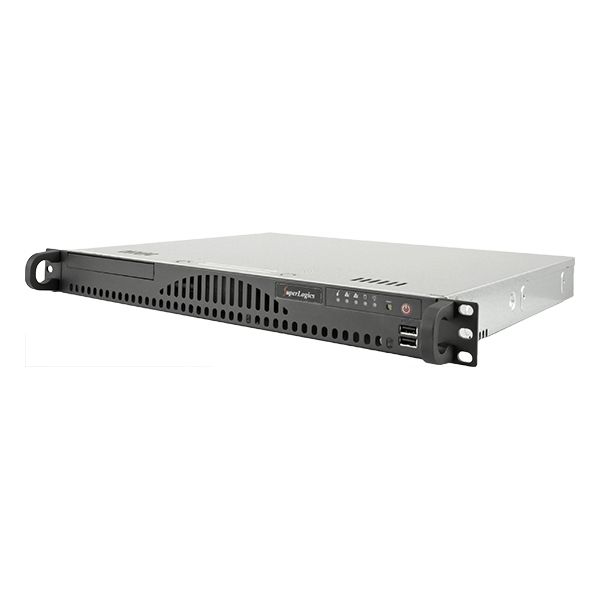

  • Angle Left

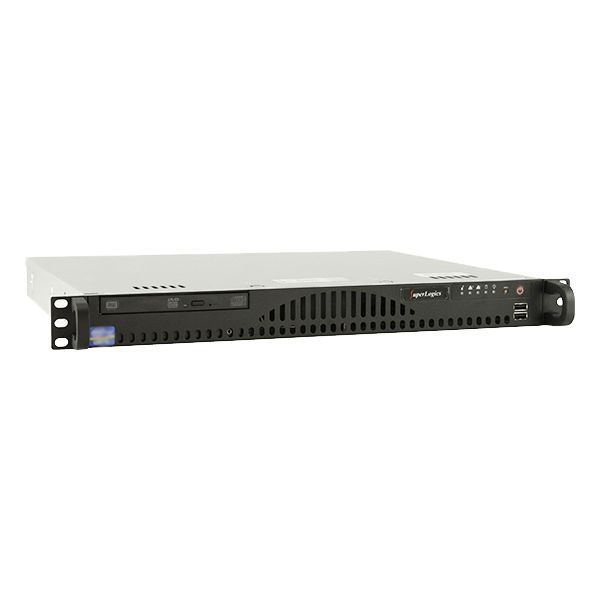

  • Angle

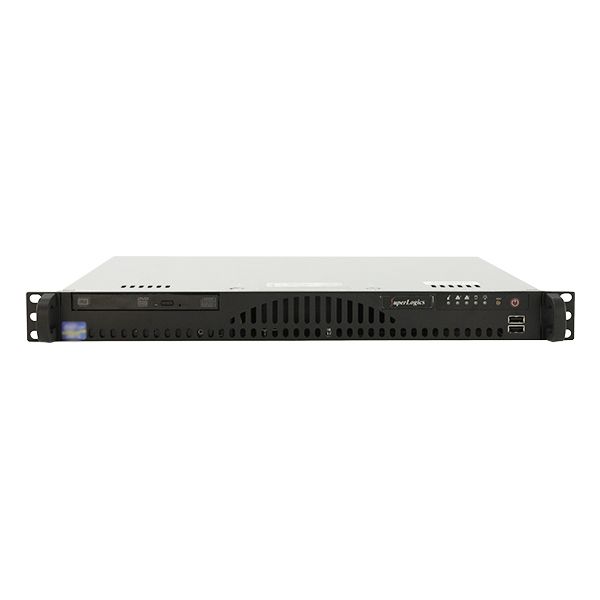

  • Front

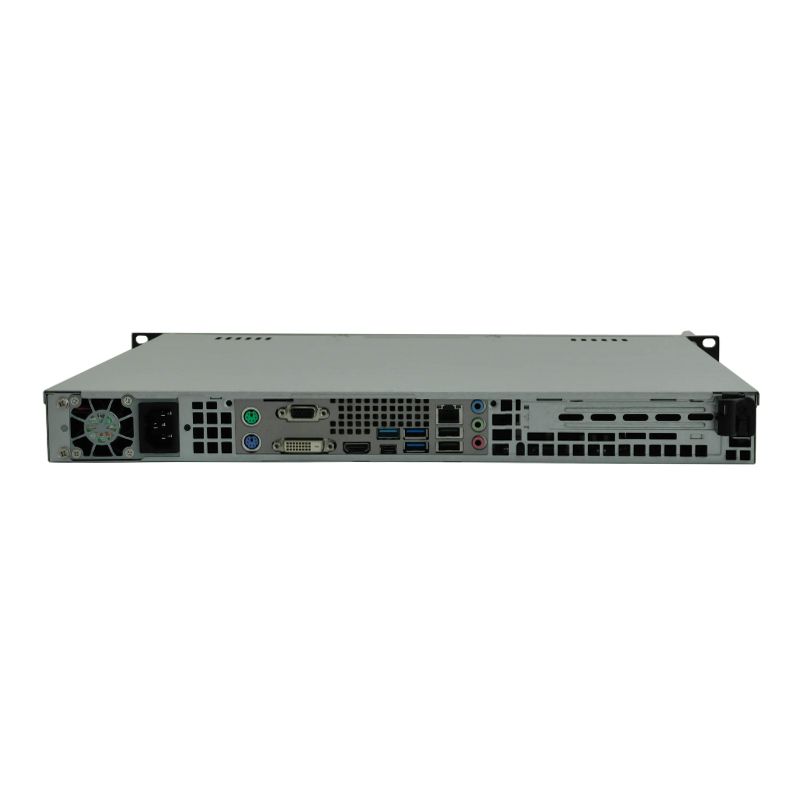

  • Rear I/O
  • Internal

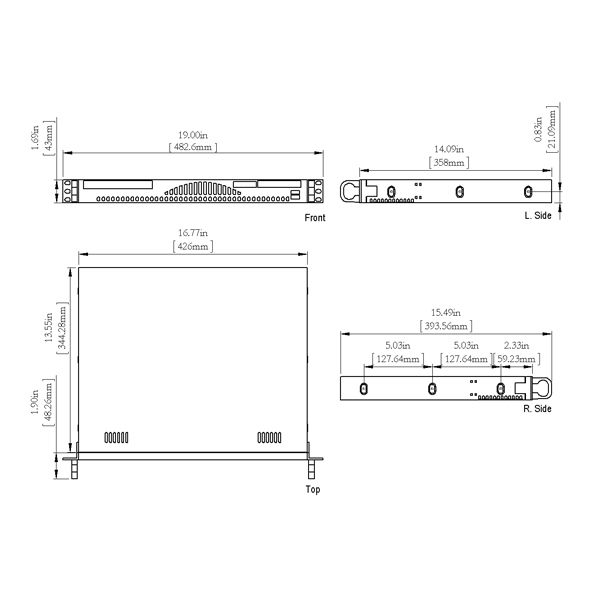

  • Dimensions
  • Chassis Supports 1x 3.5" HDD or 2x 2.5" HDD/SSD

Type:

  • 1U Rack Mount Industrial PC
  • Depth: 14", Max Card Depth: 12.28"

Motherboard:

  • Featuring Intel H270 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
  • LAN: 1x GB (10/100/1000)
  • RAID: 0,1
  • Video: VGA + HDMI + DVI-D
  • Audio: 7.1+2 Channel HD Audio by Realtek ALC892
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 via internal headers )
    8x USB 3.1 Ports ( 4 Rear, 4 via internal headers )
    1x COM Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) - Upgradeable
  • Memory: 4GB DDR4 2400MHz RAM - Upgradeable
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue - Upgradeable
  • Power Supply: 260W ATX12V Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Hard Drive
Additional Hard Drives
Raid Controller
Cable
Riser Card
Plug-In Boards
Add-In Graphic Card
Networking
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
  • Chipset
  • Chipset: Intel H270 Chipset
  • Memory
  • Memory Type: DDR4 2133MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: 7.1+2 Channel HD Audio by Realtek ALC892
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + HDMI + DVI-D
  • VGA Port Out: 1
  • DVI-D Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 6
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • M.2
  • M.2 NVMe: 2
  • M.2
  • PCIe
  • 30mm
  • 42mm
  • 60mm
  • 80mm
  • M.2 (2)
  • PCIe
  • 30mm
  • 42mm
  • 60mm
  • 80mm
  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.1 Type A Ports (on IO): 3
  • USB 3.1 Type C Ports (on IO): 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.1 Ports (on Headers): 4
  • Serial (via Headers): 1
  • FAN Connectors: 4
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent-Value
  • Windows 10 IoT Ent
  • Windows Server 2012
  • Windows Server 2016 STD
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    2 x PCI Express 3.0 x16 Slots (1 x16 mode and 1 x4 mode)*
    2 x PCI Express 3.0 x1 Slots (x1 Mode Flexible PCIe)
    Supports AMD Quad CrossFireX™ and CrossFireX™

    1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

    **Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 12.28"
  • Internal 3.5" Bays: 1
  • Slim CDBay: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 1
  • Included Fans: 1
  • Physical
  • Depth: 14"
  • Depth (Inches): 14
  • Width: 16.80"
  • Height: 1.70"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 21"
  • Shipping Box - Height: 7"
  • Shipping Weight: 20lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: 260W ATX12V Power Supply
