SL-1U-AH410I-RD This item is no longer available.
1U Rack Mount Industrial PC - Rackmount featuring Intel H410 Chipset, 10th Gen Core i7/i5/i3 (LGA1200), 1x GB (10/100/1000) LAN, WIFI,Up to 64GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Rear ), 2x USB 3.2 Gen 1 Ports ( 2 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 1x Expansion Slots.
Type:
- 1U Rack Mount Industrial PC
- Depth: 10.19"
Motherboard:
- Featuring Intel H410 Chipset and 10th Gen Core i7/i5/i3 (LGA1200) processor
- Full Height Slots:
1 - PCIe x16 - LAN: 1x Ports (GB (10/100/1000))
- WiFi: Integrated Intel® 802.11ac WiFi Module + Bluetooth 4.2 - Removable Under Networking Section
- Video: DisplayPort + HDMI
- Audio: Realtek® ALC887 codec
- Ports:
4x USB 2.0 Ports ( 2 Front, 2 Rear )
2x USB 3.2 Gen 1 Ports ( 2 Internal Headers )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
- Memory: 8GB DDR4 3200MHz RAM
- Removable Drive Bay: 2 x 2.5" 5mm-9.5mm HDD/SSD in 5.25" Hot Swap Mobile Rack Cage with Fixed 3.5" Drive/Device Bay.
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Cable: Motherboard PCIe Slot Not Available with the Drive Cage Installed.
- Power Supply: 150W 1U Flex ATX Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Supported CPU
- Number of Processors: 1
- Processor Type: 10th Gen Core i7/i5/i3 (LGA1200)
- Chipset
- Chipset: Intel H410 Chipset
- Memory
- Memory Type: DDR4 2666MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 64GB
- On Board Audio
- Audio Type: Realtek® ALC887 codec
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: DisplayPort + HDMI
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: GB (10/100/1000)
- LAN Chipset: Intel® i219V
- Wireless LAN: Integrated Intel® 802.11ac WiFi Module + Bluetooth 4.2 - Removable Under Networking Section
- Drive Interface
- SATA III Ports (6GB): 4
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 2280 - 22 mm x 80 mm.

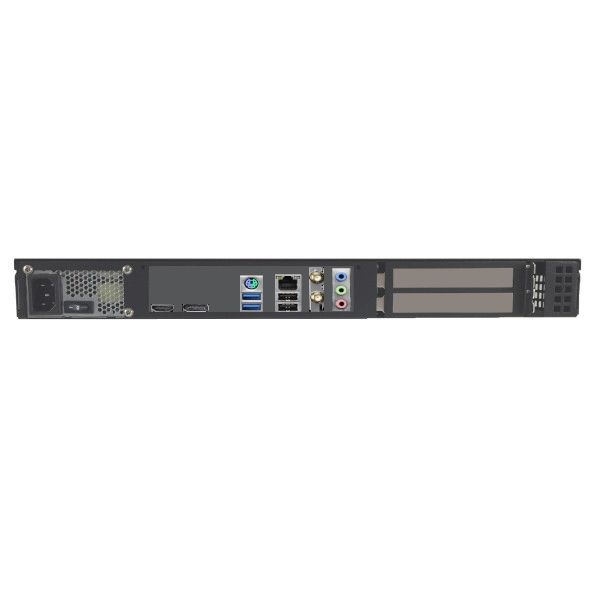

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 2 Type A Ports (on IO): 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- FAN Connectors: 3
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 95%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- FCC
- Other Features
- Features:
*Support in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Front Changeable Air Filter
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 2
- External 5.25" Bays: 1
- Internal 2.5" Bays: 1
- Front Ports
- USB 2.0 Port (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 2
- Physical
- Depth: 10.19"
- Width: 16.85"
- Height: 1.78"
- Shipping Box - Depth:
- Shipping Box - Width:
- Shipping Box - Height:
- Shipping Weight:
- Other Features
- Features:
External 5.25" Bay for upgradable Removable Drive Cage.
- Chassis Warranty: 1 Year
