SL-2U-AH110M-GD This item is no longer available.

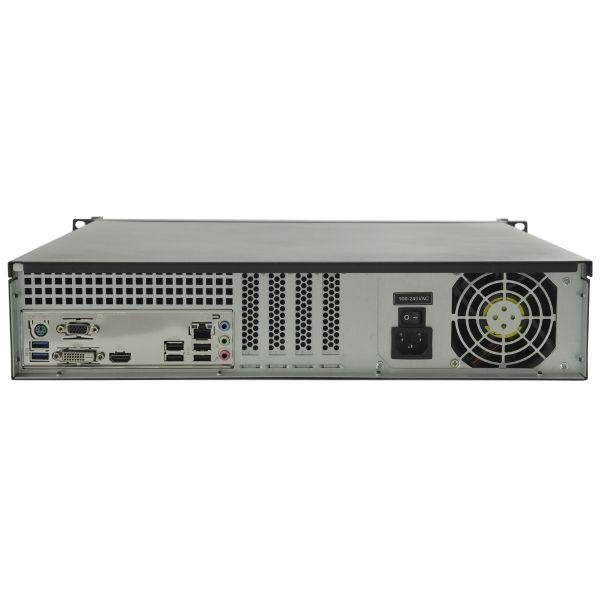

2U Rack Mount Industrial PC - Rackmount featuring Intel H110 Chipset, 6th Gen Core i7/i5/i3 (LGA1151, ‘Skylake’), 1x GB (10/100/1000) LAN, 1x Serial, Up to 32GB RAM, 8x USB 2.0 Ports ( 2 Front, 4 Rear, 2 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), 3x Expansion Slots.
Type:
- 2U Rack Mount Industrial PC
- Depth: 15.35", Max Card Depth: 9.00"
Motherboard:
- Featuring Intel H110 Chipset and 6th Gen Core i7/i5/i3 (LGA1151, ‘Skylake’) processor
- Low Profile Slots:
1 - PCIe x16
2 - PCIe x1 - LAN: 1x Ports (GB (10/100/1000))
- Video: VGA + HDMI + DVI-D
- Audio: 7.1 Channel HD Audio by Realtek ALC887-VD2
- Ports:
8x USB 2.0 Ports ( 2 Front, 4 Rear, 2 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
Chassis Specifications:
CASE-2U-D-213-MATX
