SL-2U-AH270A-DB This item is no longer available.

A newer version of this item is available: SL-2U-AH370A-DB

2U Rack Mount Industrial PC - Rackmount featuring Intel H270 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 1x 1GbE (10/100/1000) LAN, 1x Serial, Up to 64GB RAM, 5x USB 2.0 Ports ( 5 Internal Headers ), 7x USB 3.2 Gen 1 Ports ( 2 Front, 5 Rear ), 1x USB 3.2 Gen 1 Type-C Port (Rear), .



Type:

  • 2U Rack Mount Industrial PC
  • Depth: 17", Max Card Depth: 9 inches"

Motherboard:

  • Featuring Intel H270 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
  • LAN: 1x Ports (1GbE (10/100/1000))
  • RAID: 0,1,5,10
  • Video: VGA + HDMI + DVI-D
  • Audio: 7.1+2 Channel HD Audio by Realtek ALC892
  • Ports:
    5x USB 2.0 Ports ( 5 Internal Headers )
    7x USB 3.2 Gen 1 Ports ( 2 Front, 5 Rear )
    1x USB 3.2 Gen 1 Type-C Port (Rear)
    1x COM Port (RS232 Internal Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
  • Memory: 8GB DDR4 2666MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 400W Full Range Input 1U Power Supply - Active PFC
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
  • Chipset
  • Chipset: Intel H270 Chipset
  • Memory
  • Memory Type: DDR4 2133MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: 7.1+2 Channel HD Audio by Realtek ALC892
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + HDMI + DVI-D
  • VGA Port Out: 1
  • DVI-D Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: 1GbE (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 6
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 2
  • M.2 Slot #1 Specs
  • PCIe Signal
  • 2230 - 22 mm x 30 mm.
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • M.2 Slot #2 Specs
  • PCIe Signal
  • 2230 - 22 mm x 30 mm.
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.

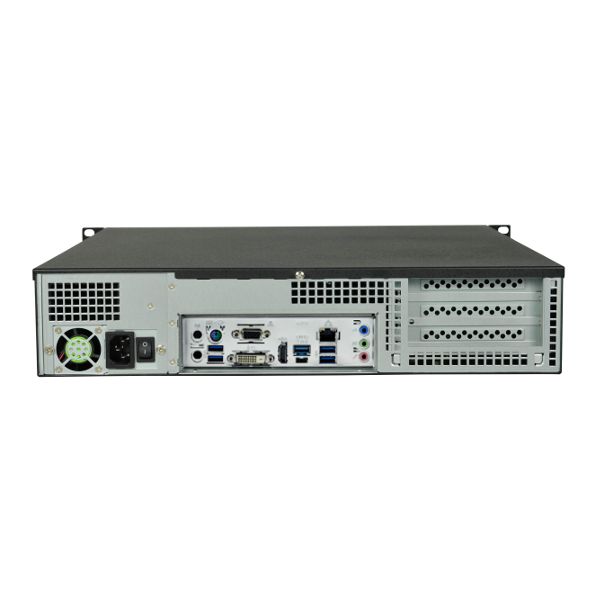

  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 3.2 Gen 1 Type A Ports (on IO): 5
  • USB 3.2 Gen 1 Type C Ports (on I/O): 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 5
  • USB 3.2 Gen 1 Ports (on Headers): 2
  • Thunderbolt 3 via Header: 2
  • Serial (via Headers): 1
  • FAN Connectors: 4
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value
  • Windows 10 IoT Ent
  • Windows Server 2012
  • Windows Server 2016 STD
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
    3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    1 x PCI Slot
    Supports AMD Quad CrossFireX™ and CrossFireX™
    1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

    If PCIE5 slot or PCI slot is occupied, PCIE4 slot will run at x2 mode.

    1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
    If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

    **Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 3
  • Max Card Depth: 9 inches"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 3
  • External 3.5" Bays: 1
  • Front Ports
  • USB 3.2 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 3
  • Physical
  • Depth: 17"
  • Depth (Inches): 17
  • Width: 19"
  • Height: 3.50"
  • Shipping Box - Depth: 24"
  • Shipping Box - Width: 23"
  • Shipping Box - Height: 8"
  • Shipping Weight: 31lbs
  • Compliance of Component
  • RoHS
  • Other Features
  • Chassis Warranty: 1 Year
