SL-2U-AH470A-DF This item is no longer available.

A newer version of this item is available: SL-2U-MZ490A-DF

2U Rack Mount Industrial PC - Rackmount featuring Intel H470 Chipset, 10th Gen Core i7/i5/i3 (LGA1200), 1x GB (10/100/1000) LAN, 1x Serial, Up to 128GB RAM, 7x USB 2.0 Ports ( 4 Rear, 3 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 1x USB 3.2 Gen 2 Port ( 1 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), 6x Expansion Slots.



Type:

  • 2U Rack Mount Industrial PC
  • Depth: 17", Max Card Depth: 9 inches"

Motherboard:

  • Featuring Intel H470 Chipset and 10th Gen Core i7/i5/i3 (LGA1200) processor
  • Low Profile Slots:
    2 - PCIe x16
    4 - PCIe x1
  • LAN: 1x Ports (GB (10/100/1000))
  • RAID: 0,1,5,10
  • Video: DisplayPort + HDMI
  • Audio: 8-Channel HD Audio by Realtek® ALC887
  • Ports:
    7x USB 2.0 Ports ( 4 Rear, 3 Internal Headers )
    6x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
    1x USB 3.2 Gen 2 Port ( 1 Rear )
    1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
    1x COM Port (RS232 Internal Headers)
    See specifications for more ports
  • Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)

Also Included:

  • Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
  • Memory: 8GB DDR4 3200MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 400W Full Range Input 1U Power Supply - Active PFC
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 10th Gen Core i7/i5/i3 (LGA1200)
  • Chipset
  • Chipset: Intel H470 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 128GB
  • On Board Audio
  • Audio Type: 8-Channel HD Audio by Realtek® ALC887
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: DisplayPort + HDMI
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek RTL8111H
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 6
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 2
  • PCI Express x1 Slots On Motherboard: 4
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 2
  • M.2 Slot #1 Specs
  • PCIe Signal
  • 22110 - 22 mm x 110 mm.
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • M.2 Slot #2 Specs
  • M.2 SATA SSD
  • PCIe Signal
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.

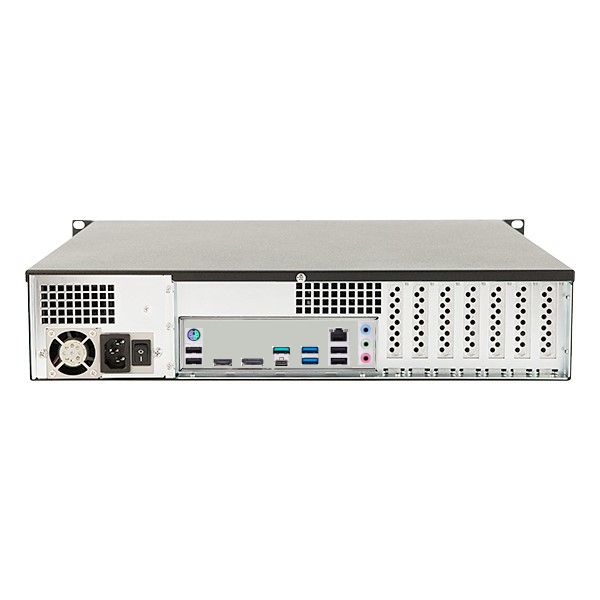

  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 4
  • USB 3.2 Gen 1 Type A Ports (on IO): 2
  • USB 3.2 Gen 2 Type A Ports (on IO): 1
  • USB 3.2 Gen 2 Type C Ports (on I/O): 1
  • Headers
  • USB 2.0 Ports (on Headers): 3
  • USB 3.2 Gen 1 Ports (on Headers): 4
  • Thunderbolt 3 via Header: 1
  • Serial (via Headers): 1
  • SPDIF Connector: 1
  • FAN Connectors: 4
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF )
  • High Humidity: 95%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Features:

    Note:

    *1 When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
    *2 USB_E1, USB_E2, USB_E3 & USB_E4 share bandwidth.

    *1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    *1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*1

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 7
  • Max Card Depth: 9 inches"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 3
  • External 3.5" Bays: 1
  • Front Ports
  • USB 3.2 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 3
  • Physical
  • Depth: 17"
  • Depth (Inches): 17
  • Width: 19"
  • Height: 3.50"
  • Shipping Box - Depth: 24"
  • Shipping Box - Width: 23"
  • Shipping Box - Height: 8"
  • Shipping Weight: 28lbs
  • Compliance of Component
  • RoHS
  • Other Features
  • Chassis Warranty: 1 Year
