SL-2U-AH97A-BA This item is no longer available.

A newer version of this item is available: SL-2U-AH270A-BA

2U Rack Mount Industrial PC - Rackmount featuring Intel H97 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 1x GB (10/100/1000) LAN, 1x Serial, Up to 32GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Rear ), 5x USB 3.2 Gen 1 Ports ( 4 Rear, 1 Internal Headers ), .

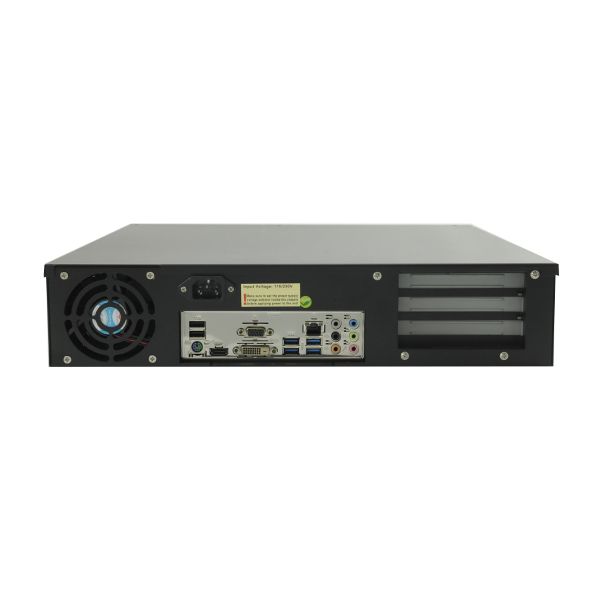

main product photo


Type:

  • 2U Rack Mount Industrial PC
  • Depth: 17.70", Max Card Depth: 9 inches", Locking Front Bezel

Motherboard:

  • Featuring Intel H97 Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
  • LAN: 1x Ports (GB (10/100/1000))
  • RAID: 0,1
  • Video: VGA + DVI-D + DisplayPort
  • Audio: 7.1+2 Channel HD Audio by Realtek ALC892
  • Ports:
    4x USB 2.0 Ports ( 2 Front, 2 Rear )
    5x USB 3.2 Gen 1 Ports ( 4 Rear, 1 Internal Headers )
    1x COM Port (RS232 Internal Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
  • Memory: 4GB DDR3 1600MHz RAM
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

    Chassis Specifications:

      SL-CASE-R2U
      SuperLogics CAD Legal Disclaimer
      By downloading a CAD drawing or multiple CAD drawings (collectively as may be downloaded by any requestor on behalf of the Company, the "CAD Drawings"), the requestor agrees to use such CAD Drawings only subject to these Use Restrictions Terms ("Use Terms") and warrants that it is a customer of SuperLogics, Inc. or is exploring designing SuperLogics products into its products ("Company"). All downloaded information remains SuperLogics’ property. For clarity, Company does not acquire any intellectual property rights, including licenses, under these Use Terms. Company agrees not to use, reverse engineer, decompile or disassemble any downloaded CAD Drawings. Information is provided "AS IS" and SuperLogics disclaims all warranties regarding Confidential Information disclosed hereunder and nothing herein will create any rights or commitments to enter into any business transaction. Any dispute arising out of or connected with these Use Terms, including a dispute as to the validity or existence thereof shall be subject to the sole and exclusive jurisdiction of the Massachusetts courts.
      SuperLogics R2U - BA 3D Drawing (File Type: STEP)
      SuperLogics R2U - BA Drawing (File Type: PDF)
