SL-2U-B560M-GD

2U Rack Mount Industrial PC - Rackmount featuring Intel B560 Chipset, 10th/11th Gen Core i7/i5/i3 (LGA1200), 1x GB (10/100/1000) LAN, HDD or SSD, Up to 128GB RAM, 6x USB 2.0, 6x USB 3.1, 3x Expansion Slots, 400W Power Supply

Type:

  • 2U Rack Mount Industrial PC
  • Depth: 15.35", Max Card Depth: 9.00"

Motherboard:

  • Featuring Intel B560 Chipset and 10th/11th Gen Core i7/i5/i3 (LGA1200) processor
  • Low Profile Slots:
    2 - PCIe x16
    1 - PCIe x1
  • LAN: 1x GB (10/100/1000)
  • Video: DisplayPort + HDMI
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 via internal headers )
    6x USB 3.1 Ports4 Rear, 2 via internal headers )
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
  • Memory: 4GB DDR4 2666MHz RAM
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 10th/11th Gen Core i7/i5/i3 (LGA1200)
  • Chipset
  • Chipset: Intel B560 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 128GB
  • On Board Audio
  • Audio Type: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: DisplayPort + HDMI
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 6
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 2
  • PCI Express x1 Slots On Motherboard: 1
  • mini PCIe
  • M.2
  • M.2 NVMe: 2
  • M.2
  • PCIe
  • 42mm
  • 60mm
  • 80mm
  • M.2 (2)
  • SATA
  • PCIe
  • 80mm

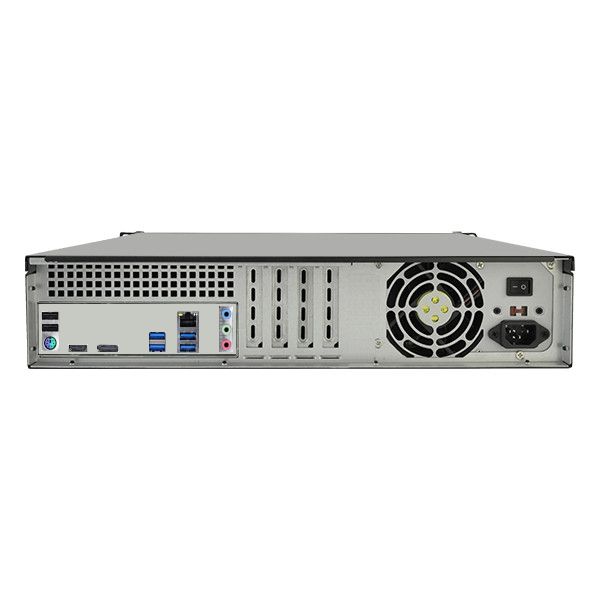

  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 2
  • USB 3.2 Gen 1 Type A Ports (on IO): 4
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.1 Ports Gen 1 (on Headers): 2
  • USB 3.1 Gen 2 Ports (on Headers): 1
  • FAN Connectors: 5
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 95%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Features:

    11th Gen Intel® Core™ Processors
    - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
    10th Gen Intel® Core™ Processors
    - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*

    - 1 x PCI Express 3.0 x1 Slot
    - Supports AMD Quad CrossFireX™ and CrossFireX™
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

    **11th Gen Intel® Core™ Processors support HDMI 2.0. 10th Gen Intel® Core™ Processors support HDMI 1.4.

    *If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.



    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Micro ATX
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 4
  • Max Card Depth: 9.00"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 4
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 1
  • Physical
  • Depth: 15.35"
  • Depth (Inches): 15.35
  • Width: 19"
  • Height: 3.50"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 21"
  • Shipping Box - Height: 7"
  • Shipping Weight: 25lbs
  • Other Features
  • Chassis Warranty: 1 Year
