SL-2U-GZ590A-WD This item is no longer available.

A newer version of this item is available: SL-2U-GZ790A-DF

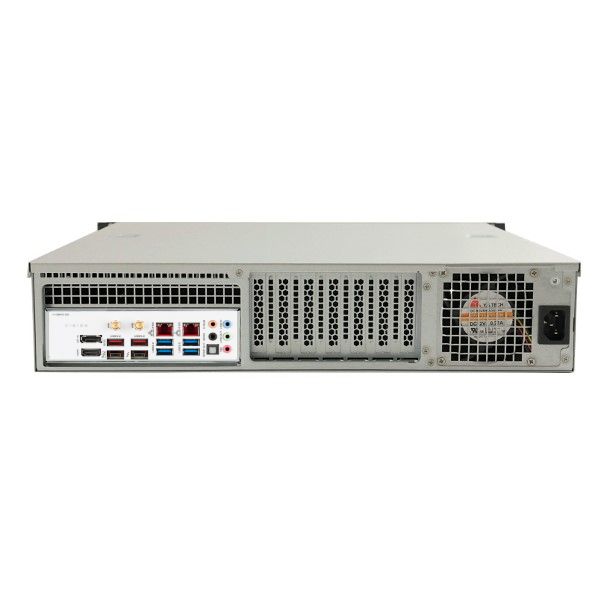

2U Rack Mount Industrial PC - Rackmount featuring Intel Z590 Chipset, 10th/11th Gen Core i7/i5/i3 (LGA1200), 2x 2.5 Gigabit 10/100/1000/2500 Mb/s LAN, WIFI,Up to 128GB RAM, 4x USB 2.0 Ports ( 4 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 4x Expansion Slots.


2x Thunderbolt 4.0 Ports

Type:

  • 2U Rack Mount Industrial PC
  • Depth: 18", Max Card Depth: 12.25", Locking Front Bezel

Motherboard:

  • Featuring Intel Z590 Chipset and 10th/11th Gen Core i7/i5/i3 (LGA1200) processor
  • Low Profile Slots:
    3 - PCIe x16
    1 - PCIe x1
  • LAN: 2x Ports (2.5 Gigabit 10/100/1000/2500 Mb/s)
  • WiFi: Intel AX200 Wi-Fi 6 (802.11ax) + BT 5.2
  • RAID: 0,1,5,10
  • Video: DisplayPort + HDMI
  • Audio: Realtek® ALC4080 codec
  • Ports:
    4x USB 2.0 Ports ( 4 Internal Headers )
    6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear )
    2x USB 3.2 Gen 2 Ports ( 2 Rear )
    2x Thunderbolt™ 4 (supports USB 3.2 Gen 2) Type-C Port (Rear)
    See specifications for more ports
  • Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)

Also Included:

  • Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
  • Memory: 8GB DDR4 3200MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 10th/11th Gen Core i7/i5/i3 (LGA1200)
  • Chipset
  • Chipset: Intel Z590 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 128GB
  • On Board Audio
  • Audio Type: Realtek® ALC4080 codec
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: DisplayPort + HDMI
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: 2.5 Gigabit 10/100/1000/2500 Mb/s
  • LAN Chipset: Chipset Not Specified
  • Second LAN Chipset: Chipset Not Specified
  • Wireless LAN: Intel AX200 Wi-Fi 6 (802.11ax) + BT 5.2
  • Drive Interface
  • SATA III Ports (6GB): 6
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 3
  • PCI Express x1 Slots On Motherboard: 1
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 3
  • M.2 Slot #1 Specs
  • PCIe Signal
  • 22110 - 22 mm x 110 mm.
  • 2280 - 22 mm x 80 mm.
  • M.2 Slot #2 Specs
  • M.2 SATA SSD
  • PCIe Signal
  • 22110 - 22 mm x 110 mm.
  • 2280 - 22 mm x 80 mm.
  • M.2 Slot #3 Specs
  • PCIe Signal
  • 22110 - 22 mm x 110 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • Rear IO
  • USB 3.2 Gen 1 Type A Ports (on IO): 4
  • USB 3.2 Gen 2 Type A Ports (on IO): 2
  • Thunderbolt™ 4 (supports USB 3.2 Gen 2) Type-C Port: 2
  • SPDIF Connector: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.2 Gen 1 Ports (on Headers): 2
  • FAN Connectors: 6
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Windows 10 IoT 2021 LTSC Value
  • Windows 10 IoT 2021 LTSC High End
  • Windows 11 Home (64 Bit)
  • Windows 11 Pro (64 Bit)
  • Windows 11 Pro for WS (64 Bit)
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller:

    1. 1 x VisionLINK TB connector (Intel® Thunderbolt™ 4/USB Type-C® port)
    2. 1 x Intel® Thunderbolt™ 4 connector (USB Type-C® port)
      * The Intel® Thunderbolt™ 4 connectors support DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)
      * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
      * Support for DisplayPort 1.4 version and HDCP 2.3.

    Expansion Slots

    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
      (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)*
      * Supported by 11th Generation processors only.
    3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
    4. 1 x PCI Express x1 slot
      (The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard.)

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 7
  • Max Card Depth: 12.25"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 2
  • External 3.5" Bays: 1
  • Internal 2.5" Bays: 1
  • Front Ports
  • USB 3.2 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 1
  • Physical
  • Depth: 18"
  • Depth (Inches): 18
  • Width: 16.90"
  • Height: 3.50"
  • Shipping Box - Depth: 20"
  • Shipping Box - Width: 40"
  • Shipping Box - Height: 40"
  • Shipping Weight: 35lbs
  • Compliance of Component
  • RoHS
  • Other Features
  • Chassis Warranty: 1 Year
