SL-2U-H81M-DF This item is no longer available.

A newer version of this item is available: SL-2U-AB250M-DF

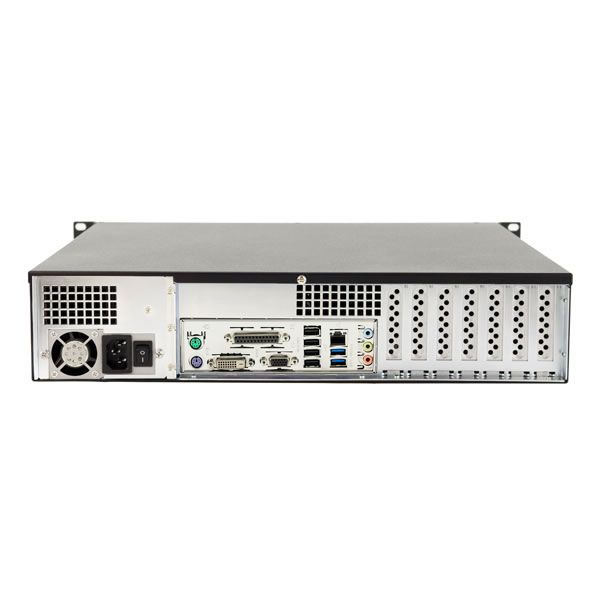

2U Rack Mount Industrial PC - Rackmount featuring Intel H81 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 1x GB (10/100/1000) LAN, HDD or SSD, 1x Serial, Up to 16GB RAM, 8x USB 2.0, 2x USB 3.0, 4x Expansion Slots, 400W Full Range 1U Power Supply - Active PFC

Type:

  • 2U Rack Mount Industrial PC
  • Depth: 17", Max Card Depth: 9 inches"

Motherboard:

  • Featuring Intel H81 Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
  • Low Profile Slots:
    1 - PCIe x16
    2 - PCIe x1
    1 - PCI
  • LAN: 1x GB (10/100/1000)
  • RAID: 0,1,5,10 via Intel RMS Modules
  • Video: VGA + DVI-D
  • Audio: 7.1 Channel HD Audio by Realtek ALC887-VD2
  • Ports:
    8x USB 2.0 Ports ( 2 Front, 4 Rear, 2 via internal headers )
    2x USB 3.0 Ports ( 2 Rear )
    1x COM Port (Headers)
    1x Parallel Port (Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
  • Memory: 4GB DDR3 1600MHz RAM
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
  • Power Supply: 400W Full Range 1U Power Supply - Active PFC
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell')
  • Chipset
  • Chipset: Intel H81 Chipset
  • Memory
  • Memory Type: DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: 7.1 Channel HD Audio by Realtek ALC887-VD2
  • On Board Video
  • Video Chipset: Intel HD Graphics
  • Video on IO: VGA + DVI-D
  • VGA Port Out: 1
  • DVI-D Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111G
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • SATA III Ports (6GB): 2
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • PCI Express x1 Slots On Motherboard: 2
  • PCI Slots (Conventional 32-Bit): 1
  • mini PCIe
  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 2
  • Parallel Ports: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • Serial (via Headers): 1
  • FAN Connectors: 2
  • Audio on Headers
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 64-Bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (32 Bit)
  • Windows 10 Pro (64-Bit)
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 7
  • Max Card Depth: 9 inches"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 3
  • External 3.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 3
  • Physical
  • Depth: 17"
  • Depth (Inches): 17
  • Width: 19"
  • Height: 3.50"
  • Shipping Box - Depth: 24"
  • Shipping Box - Width: 23"
  • Shipping Box - Height: 8"
  • Shipping Weight: 28lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
