SL-2U-LLH410I-GD

A newer version of this item is available: SL-2U-MH510I-GD

2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2026) with Intel H410 Chipset, 10th Gen Intel Core i7, i5, i3/Pentium/Celeron, 2x GB (10/100/1000) LAN, 6x Serial, Up to 64GB RAM, 4x USB 2.0 Ports ( 4 Rear ), 2x USB 3.2 Gen 1 Ports ( 2 Rear ), 1x Expansion Slots.



Type:

  • 2U Rack Mount Industrial PC
  • Depth: 15.35", Max Card Depth: 9.00"

Motherboard:

  • Featuring Intel H410 Chipset and 10th Gen Intel Core i7, i5, i3/Pentium/Celeron processor
  • Long Production Cycle Motherboard (Through Q4 2026)
  • Low Profile Slots:
    1 - PCIe x16
  • LAN: 2x Ports (GB (10/100/1000))
  • Video: VGA + DisplayPort + HDMI
  • Audio: Realtek® ALC897
  • Ports:
    4x USB 2.0 Ports ( 4 Rear )
    2x USB 3.2 Gen 1 Ports ( 2 Rear )
    6x COM Ports (1 RS232 Rear, 4 RS232 Internal Headers, 1 RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
  • Memory: 8GB DDR4 2666MHz SODIMM RAM
  • Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty
Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Long Life: YES
  • EOL Date: Q4 2026
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 10th Gen Intel Core i7, i5, i3/Pentium/Celeron
  • Chipset
  • Chipset: Intel H410 Chipset
  • Memory
  • Memory Type: SO DIMM DDR4 2666MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: Realtek® ALC897
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + DisplayPort + HDMI
  • VGA Port Out: 1
  • Display Port Out: 1
  • Embedded DisplayPort Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i211AT
  • Second LAN Chipset: Intel® i219LM
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 2
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • Mini PCIe
  • mini PCIe
  • USB and PCIe signals (Internal)
  • half and/or full size mini PCIe card: full size
  • M.2 Slot Specs
  • 2242 - 22 mm x 42 mm.
  • 2280 - 22 mm x 80 mm.
  • Rear IO
  • USB 2.0 Ports (on IO): 4
  • USB 3.2 Gen 1 Type A Ports (on IO): 2
  • Serial (Rear IO): 1
  • Serial 232/422/485 Ports: 1
  • Audio on IO
  • Headers
  • Serial (via Headers): 4
  • FAN Connectors: 2
  • TPM Support: TPM via Intel Platform Trust Technology
  • Management Features
  • Watch Dog
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • SL-Windows 11PRO to 10PRO 64bit
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Windows 10 IoT 2021 LTSC Value
  • Windows 10 IoT 2021 LTSC High End
  • Windows 11 Home (64 Bit)
  • Windows 11 Pro (64 Bit)
  • LINUX Ubuntu Desktop
  • Other Features
  • Other Features:

    One PCI-Express x16 slot.
    One PCI-Express Mini Card

    One M.2 Key B type 2242/2280/3042/3052 includes PCIe x2, PCIe + SATA3.0, PCIe
    + USB 3.2 GEN1 interfaces

    One M.2 Key E type 2230 with PCIe x1 and USB2.0.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Micro ATX
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 4
  • Max Card Depth: 9.00"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 4
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 1

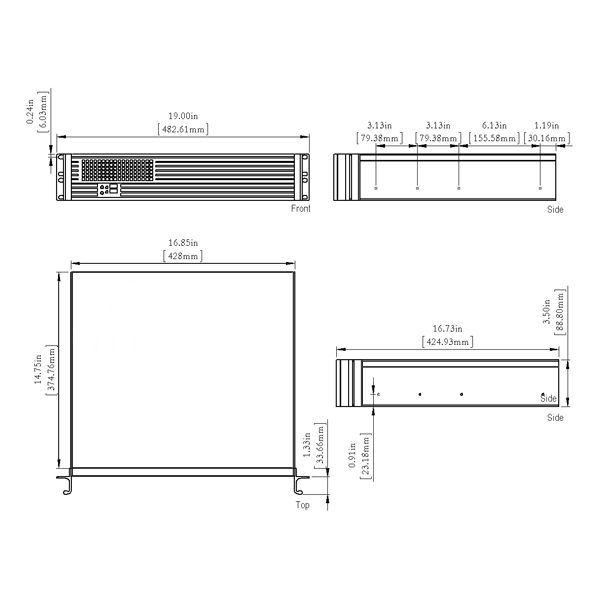

  • Physical
  • Depth: 15.35"
  • Depth (Inches): 15.35
  • Width: 19"
  • Height: 3.50"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 21"
  • Shipping Box - Height: 7"
  • Shipping Weight: 25lbs
  • Other Features
  • Chassis Warranty: 1 Year
