SL-2U-LLQ470M-DF

Name: SL-2U-LLQ470M-DF
SKU: SL-2U-LLQ470M-DF

2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q2 2030) with Intel Q470E Chipset, 10th Gen Core i7/i5/i3 (LGA1200), 2x 1GbE + 1GbE LAN, 4x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 3x USB 3.2 Gen 2 Type-C Ports ( 2 Rear, 1 Internal Headers ), 4x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

2U Rack Mount Industrial PC
Depth: 17", Max Card Depth: 9 inches"

Motherboard:

Featuring Intel Q470E Chipset and 10th Gen Core i7/i5/i3 (LGA1200) processor
Long Production Cycle Motherboard (Through Q2 2030)
Low Profile Slots:
1 - PCIe x16
1 - PCIe x8
2 - PCIe x4
LAN: 2x Ports (1GbE + 1GbE)
RAID: 0,1,5,10
Video: HDMI + DisplayPort + VGA + DVI-D
Audio: 7.1 Channel HD Audio by Realtek® ALC888S
Ports:
6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
3x USB 3.2 Gen 2 Type-C Ports ( 2 Rear, 1 Internal Headers )
4x COM Ports (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 0ºC to 0ºC (32ºF to 0ºF)

Also Included:

Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
Memory: 8GB DDR4 3200MHz RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 400W Full Range Input 1U Power Supply - Active PFC
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W) show $76.00

G5920- 3.50GHz Intel Celeron CPU - Dual Core, 2MB Cache, UHD Graphics 610 (58W) or Better show $54.00

G5925- 3.60GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W) show $90.00

G6400- 4.0GHz Intel Pentium Gold CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W) show $109.00

G6500- 4.1GHz Intel Pentium Gold CPU - Dual Core, 4MB Cache, UHD Graphics 630 (58W) show $159.00

i3-10100 - 3.6GHz (up to 4.3GHz) Intel Quad-Core (4 cores) CPU - 6MB Cache, UHD Graphics 630 (65W) show $180.00

i5-10400 - 2.9GHz (up to 4.30GHz) Intel Hexa-Core (6 cores) CPU - 12MB Cache, UHD Graphics 630 (65W) show $213.00

i5-10500 - 3.1GHz (up to 4.50GHz) Intel Hexa-Core (6 cores) CPU - 12MB Cache, UHD Graphics 630 (65W)Part ETA Varies – Ask Sales show $375.00

i7-10700 - 2.9GHz (up to 4.80GHz) Intel Octo-Core (8 cores) CPU - 16MB Cache, UHD Graphics 630 (65W) show $493.00

Memory

x 8GB DDR4 3200MHz RAM show $28.00

x 16GB DDR4 3200MHz RAM show $46.00

x 32GB DDR4 3200MHz RAM show $104.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

Slim SATA DVDRW Drive show $53.00

5.25" CD/DVD Burner show $31.00

5.25" Blu-Ray 16x Readable & ReWriteable Drive show $148.00

Removable Drive Bay

1x 3.5" Hard Drive Aluminum Removable Bay (Require a 5.25" external bay) show $53.00 each

Replacement Caddy for SL-HDD-MR-SATA-MIL HDD Rack show $33.00 each

Add an Enterprise 2 x 2.5" SATA Hard Drive or SSD Mobile Rack with Full Metal Construction with Lock - show $102.00 each

Replacement Tray for SL-HDD-MR-1FDD-2SSD..7-9.5mm Height, show $48.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage show $208.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage with Locks. show $280.00 each

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $160.00 each

Additional Hard Drives

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $48.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $170.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $211.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $388.00 each

1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue show $88.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $218.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E8 Series show $323.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $133.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $153.00 each

4.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $136.00 each

6.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $182.00 each

Raid Controller

None show Included

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00

Cable

COM Port (Serial Port) Cable, 9-pin, w/ Low-Profile Bracket show $9.00 each

Add 2 USB 3.x A Female Ports via internal USB header cable show $15.00 each

TPM 2.0 Module - 20-pin module with Infineon 9665, TCG 2.0 compliant trusted platform module show $47.00 each

3 ft HDMI® to DVI-D Cable - M/M show $8.00 each

6 ft HDMI® to DVI-D Cable - M/M show $12.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Serial PCIe Card, 9pin 16550 UARTs - 2 Ports, Low Profile show $77.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP Mode - 1 Port, Low Profile show $69.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

4 Ports USB 3.2 Gen 1 PCIe Card Adapter with SATA Power - Supports Low Profile show $70.00 each

Add-In Graphic Card

None show Included

NVIDIA GeForce RTX 4060 8GB 128-Bit GDDR6 PCIe 4.0 x16 - Recommended 450W PSU show $542.00

NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support! show $196.00

NVIDIA Quadro T1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $464.00

NVIDIA Quadro T1000 8GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $500.00

NVIDIA RTX A400 4GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $222.00

NVIDIA RTX A1000 8GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $540.00

NVIDIA Quadro RTX A2000 12GB GDDR6, PCIe 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $791.00

Networking

PCIe x1 - WiFi 6 802.11ax Bluetooth 5.0 - Wi-Fi/Bluetooth Combo Adapter - 2.93 Gbit/s - 2.40 GHz ISM - show $82.00 each

USB 2.0 - Mini Dual Band Wireless-AC Network Adapter show $52.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $250.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $243.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $120.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $284.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

Power Supply

400W Full Range Input 1U Power Supply - Active PFC show $131.00

500W Full Range Input 1U Power Supply - Active PFC show $157.00

460W 1U Power Supply with +24VDC input (18VDC-36VDC input range) show $298.00

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepPart ETA Varies – Ask Sales show $952.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" DeepPart ETA Varies – Ask Sales show $1,482.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI inputPart ETA Varies – Ask Sales show $1,058.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpuPart ETA Varies – Ask Sales show $1,112.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included)Part ETA Varies – Ask Sales show $1,589.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep RacksPart ETA Varies – Ask Sales show $1,047.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep RacksPart ETA Varies – Ask Sales show $1,578.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $369.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $423.00 each

External Power

None show Included

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount show $125.00

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount show $181.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $626.00

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $95.00

Mounting Option

None show Included

20" Sliding rails 2U/3U show $46.00

26" Sliding rails 2U/3U - Fits 26" - 37.75" deep racks show $57.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Long Production Cycle
Long Life: YES
EOL Date: Q2 2030
Supported CPU
Number of Processors: 1
Processor Type: 10th Gen Core i7/i5/i3 (LGA1200)
Chipset
Chipset: Intel Q470E Chipset
Memory
Memory Type: DDR4 2666MHz
Memory Type: Non-ECC
DIMMS: 4
Maximum Memory: 128GB
On Board Audio
Audio Type: 7.1 Channel HD Audio by Realtek® ALC888S
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: HDMI + DisplayPort + VGA + DVI-D
VGA Port Out: 1
DVI-D Out: 1
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type: 1GbE + 1GbE
LAN Chipset: Intel® i210AT
Second LAN Chipset: Intel® i219LM
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 6
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
PCI Express x8 Slots On Motherboard: 1
PCI Express x4 Slots On Motherboard: 2
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 1
M.2 Slot #1 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2280 - 22 mm x 80 mm.

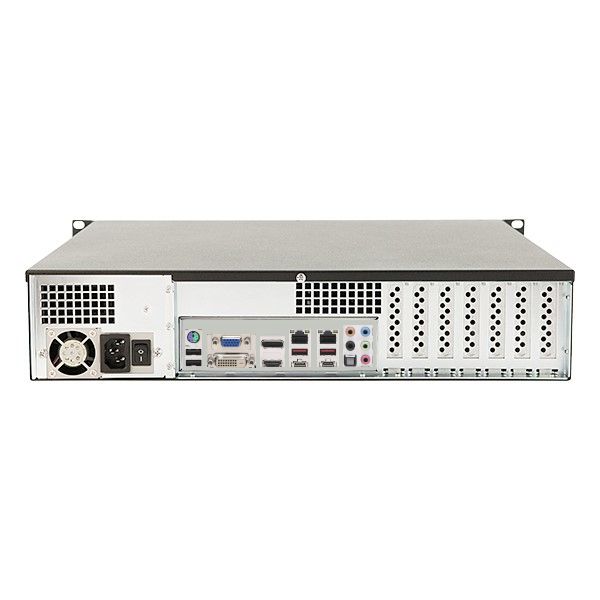

Rear IO
PS/2 Combo (Mouse/Keyboard)
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 2 Type A Ports (on IO): 2
USB 3.2 Gen 2 Type C Ports (on I/O): 2
SPDIF Connector: 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 2 Type-C (on Headers): 1
Serial (via Headers): 4
FAN Connectors: 4
Audio on Headers
TPM Support: Via 2.0 Header
Management Features
AMT
vPRO
Watch Dog
Environmental
Operating Temperature: 0ºC to 0ºC (32ºF to 0ºF )
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
RED HAT Enterprise LINUX WORKSTATION STANDARD
RED HAT Enterprise LINUX SERVER BASIC
RED HAT Enterprise LINUX SERVER STANDARD
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
CE
FCC
Other Features
Features:
PCI-E
- 1 PCI-E 3.0 x16 (in x16 slot),
- 1 PCI-E 3.0 x8,
- 2 PCI-E 3.0 x4
M.2
- M.2 Interface: 1 PCI-E 3.0 x4, RAID 0 & 1
- Form Factor: 2242/2280
- Key: M-Key
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year
