SL-2U-MCX-C621ASPL-DN

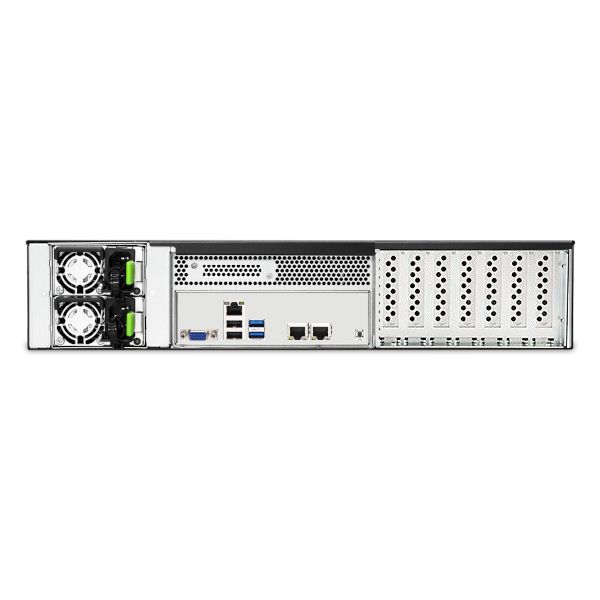

2U Rack Mount Industrial PC - Rackmount featuring Intel C621A Chipset, Intel® Xeon® Scalable Processors 3rd Gen, 2x 1GbE + 1GbE LAN, 1x Serial, Up to 2048GB RAM, 6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 7x Expansion Slots, Power Supply 800W 1+1 redundant PSU 80+ Platinum.
Type:
- 2U Rack Mount Industrial PC
- Depth: 17.72"
Motherboard:
- Featuring Intel C621A Chipset and Intel® Xeon® Scalable Processors 3rd Gen processor
- Low Profile Slots:
2 - PCIe x16
5 - PCIe x8 - LAN: 2x Ports (1GbE + 1GbE)
- RAID: 0,1,5,10
- Video: VGA
- Audio: No Onboard Audio
- Ports:
6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)
Also Included:
- Processor: 3rd Gen Xeon Silver 4310 - 2.1GHz (up to 3.3GHz) Twelve Core Intel Processor - 18MB Cache (120W)
- Memory: 2 x 8GB DDR4 2666MHz ECC Registered RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 800W 1+1 redundant PSU 80+ Platinum
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Xeon® Scalable Processors 3rd Gen
- Chipset
- Chipset: Intel C621A Chipset
- Memory
- Memory Type: DDR4 2666MHz ECCR
- Memory Type: ECC Registered
- DIMMS: 8
- Maximum Memory: 2048GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: ASPEED AST2600 BMC
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE + 1GbE
- LAN Chipset: Intel® i210
- Second LAN Chipset: Intel® i210
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 10
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 2
- PCI Express x8 Slots On Motherboard: 5
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2280 - 22 mm x 80 mm.
- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 2
- USB 3.0 Type A Interal: 1
- Serial (via Headers): 1
- FAN Connectors: 7
- TPM Support: Via 2.0 Header
- Management Features
- Watch Dog
- Environmental
- Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF )
- High Humidity: 85%
- Low Humidity: 10%
- Operating System Support
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows Server 2016 STD
- Windows Server 2019 Std
- RED HAT Enterprise LINUX WORKSTATION STANDARD
- RED HAT Enterprise LINUX SERVER BASIC
- RED HAT Enterprise LINUX SERVER STANDARD
- Ubuntu Server Edition
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Other Features:
PCI-E
1 PCI-E 4.0 x16,
1 PCI-E 4.0 x8 (in x16 slot),
2 PCI-E 4.0 x8,
3 PCI-E 3.0 x8 - Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 2U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: E-ATX
- Redundant Power Supply Capable
- Slide Rails: Optional
- Expansion
- Low Profile Slots: 7
- 2.5" Hot Swap Bays: 4
- Front Ports
- USB 3.2 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 4
- Included Fans: 4
- Physical
- Depth: 450mm
- Depth (Inches): 17.7
- Width: 438mm
- Height: 88mm
- Shipping Box - Depth: 580mm
- Shipping Box - Width: 655mm
- Shipping Box - Height: 244mm
- Shipping Weight: 29lbs
- Power
- Built-in Chassis Power Supply: 800W 1+1 redundant PSU 80+ Platinum
- Remote Server Management:
