SL-3U-AH270A-KA This item is no longer available.

A newer version of this item is available: SL-3U-AH370A-KA

3U Rack Mount Industrial PC - Rackmount featuring, 350W Power Supply

3U Rack Mount Industrial PC - Rackmount featuring Intel H270 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151)
  • Angle
  • Front
  • Angle with Key
  • Front Open Doors

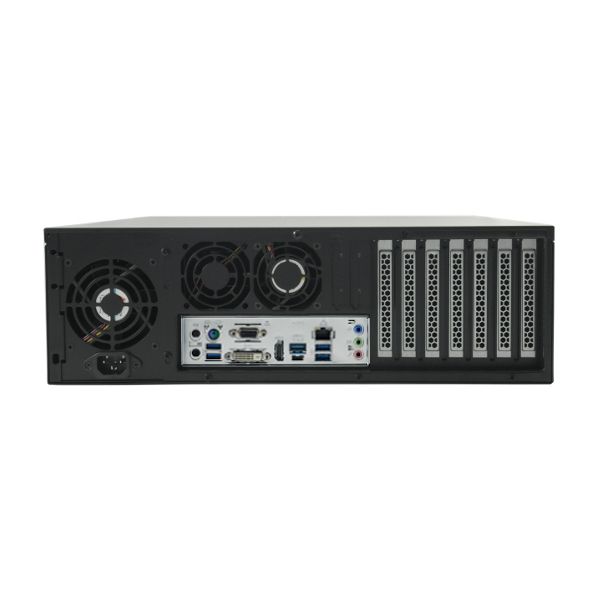

  • IO

Type:

  • 3U Rack Mount Industrial PC
  • Depth: 20.79", Max Card Depth: 292mm"
  • No Available Slots
Technical Specifications
Available Downloads

Chassis Specifications:

  • General
  • Form Factor: 3U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Micro ATX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 7
  • Max Card Depth: 292mm"
  • External 5.25" Bays: 2
  • Internal 3.5" Bays: 3
  • External 3.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 2
  • Physical
  • Depth: 528mm
  • Depth (Inches): 20.79
  • Width: 483mm
  • Height: 133mm
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 27"
  • Shipping Box - Height: 10"
  • Shipping Weight: 40lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
