SL-3U-AH310M-GK

3U Rack Mount Industrial PC - Rackmount featuring Intel H310 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 1x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 32GB RAM, 8x USB 2.0, 4x USB 3.1, 4x Expansion Slots, 350W Power Supply

3U Rack Mount Industrial PC - Rackmount featuring Intel H310 Chipset, 8th Gen Core i7/i5/i3 (LGA1151), 1x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 32GB RAM, 8x USB 2.0, 4x USB 3.1, 4x Expansion Slots
  • Angle
  • Front

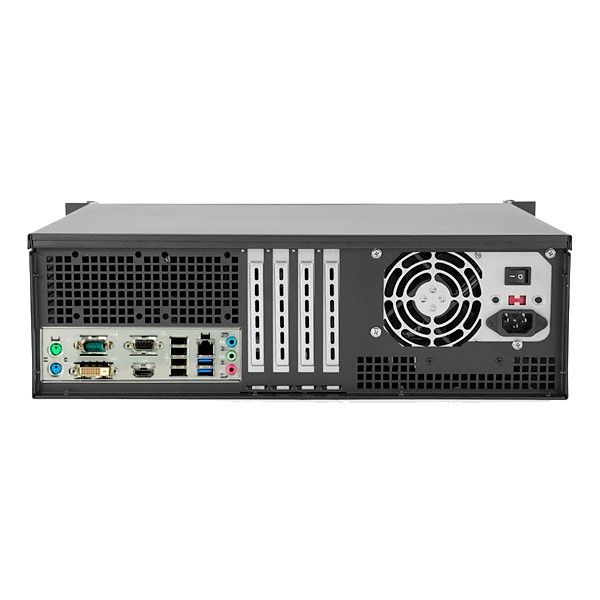

  • I/O
  • I/O Diagram
  • Internal

Type:

  • 3U Rack Mount Industrial PC
  • Depth: 15.35", Max Card Depth: 8.5"

Motherboard:

  • Featuring Intel H310 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
  • Full Height Slots:
    1 - PCIe x16
    2 - PCIe x1
    1 - PCI
  • LAN: 1x GB (10/100/1000)
  • Video: VGA + DVI-D + HDMI
  • Audio: 8-Channel HD Audio by Realtek® ALC887
  • Ports:
    8x USB 2.0 Ports ( 2 Front, 4 Rear, 2 via internal headers )
    4x USB 3.1 Ports ( 2 Rear, 2 via internal headers )
    2x COM Ports (1 Rear, 1 on Headers)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Processor: G4900 - 3.1GHz Intel Celeron CPU - Dual Core, 2MB Cache, UHD Graphics 610 (54W) - (Or Better) - Upgradeable
  • Memory: 4GB DDR4 2400MHz RAM - Upgradeable
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue - Upgradeable
  • Power Supply: 350W Power Supply - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Removable Drive Bay
Hard Drive
Additional Hard Drives
Cable
Plug-In Boards
Add-In Graphic Card
Networking
Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 8th and 9th Gen Core i7/i5/i3 (LGA1151)
  • Chipset
  • Chipset: Intel H310 Chipset
  • Memory
  • Memory Type: DDR4 2400MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: 8-Channel HD Audio by Realtek® ALC887
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + DVI-D + HDMI
  • VGA Port Out: 1
  • DVI-D Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111GN
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 4
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • PCI Express x1 Slots On Motherboard: 2
  • PCI Slots (Conventional 32-Bit): 1
  • mini PCIe
  • M.2
  • M.2
  • SATA
  • PCIe
  • 30mm
  • 42mm
  • 60mm
  • 80mm
  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 4
  • USB 3.1 Type A Ports (on IO): 2
  • Serial (Rear IO): 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.1 Ports (on Headers): 2
  • Serial (via Headers): 1
  • Parallel Ports: 1
  • FAN Connectors: 3
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent-Value
  • Windows 10 IoT Ent
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

    - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
    - 2 x PCI Express 2.0 x1 Slots
    - 1 x PCI Slot

    *Supports NVMe SSD as boot disks - M.2 PCI Express module up to Gen2 x2 (10 Gb/s)

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 3U Rackmount
  • Color: Black
  • Material: Metal/Aluminum
  • Material Thickness: 1mm
  • Motherboard Compatibility: Micro ATX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 4
  • Max Card Depth: 8.5"
  • External 5.25" Bays: 2
  • Internal 3.5" Bays: 4
  • External 3.5" Bays: 1
  • Internal 2.5" Bays: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 4
  • Included Fans: 2
  • Physical
  • Depth: 15.35"
  • Depth (Inches): 15.35
  • Width: 19.10"
  • Height: 5.25"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 21"
  • Shipping Box - Height: 9"
  • Shipping Weight: 35lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
