SL-3U-LLH812-KA

3U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2020) with Intel H81 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 2x GB (10/100/1000) LAN, HDD or SSD, 10x Serial, Up to 16GB RAM, 6x USB 2.0, 2x USB 3.0, 7x Expansion Slots, 350W Power Supply

3U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2020) with Intel H81 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 2x GB (10/100/1000) LAN, HDD or SSD, 10x Serial, Up to 16GB RAM, 6x USB 2.0, 2x US...
  • Angle
  • Front
  • Angle with Key
  • Front Open Doors

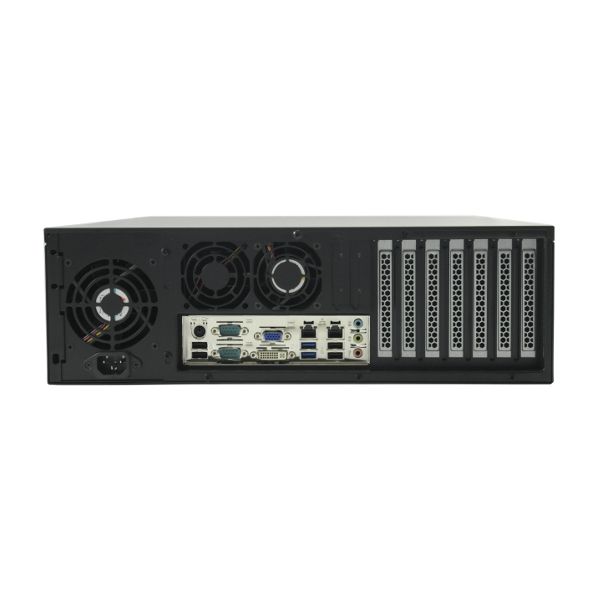

  • Rear IO View
  • TOP

Type:

  • 3U Rack Mount Industrial PC
  • Depth: 20.79", Max Card Depth: 292mm"

Motherboard:

  • Featuring Intel H81 Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
  • Long Production Cycle Motherboard (Through Q3 2020)
  • Full Height Slots:
    1 - PCIe x16
    1 - PCIe x4
    5 - PCI
  • LAN: 2x GB (10/100/1000)
  • Video: VGA + DVI-D
  • Audio: 5.1 channel by Realtek® ALC886
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 4 Rear )
    2x USB 3.0 Ports ( 2 Rear )
    10x COM Ports (2 Rear, 7 on Headers, 1 RS232/422/485 on Headers)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM) - Upgradeable
  • Memory: 4GB DDR3 1600MHz RAM - Upgradeable
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue - Upgradeable
  • Power Supply: 350W Power Supply - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Removable Drive Bay
Hard Drive
Additional Hard Drives
Cable
Plug-In Boards
Add-In Graphic Card
Networking
Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q3 2020
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell')
  • Chipset
  • Chipset: Intel H81 Chipset
  • Memory
  • Memory Type: DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: 5.1 channel by Realtek® ALC886
  • On Board Video
  • Video Chipset: Intel HD Graphics
  • Video on IO: VGA + DVI-D
  • VGA Port Out: 1
  • DVI-I Out (DVI-D Signal): 1
  • LAN
  • LAN Ports: 2
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i210AT
  • Second LAN Chipset: Intel® i210AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • SATA III Ports (6GB): 2
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • PCI Express x4 Slots On Motherboard: 1
  • PCI Slots (Conventional 32-Bit): 5
  • mini PCIe
  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 2
  • Serial (Rear IO): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 2.0 Ports (Type A): 1
  • Serial (via Headers): 7
  • Serial 232/422/485 Ports: 1
  • Parallel Ports: 1
  • SPDIF Connector: 1
  • eSATA Ports: 4
  • FAN Connectors: 3
  • Digital I/O (8 Bit) On Headers
  • Audio on Headers
  • Chassis Intrusion
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent-Value
  • Windows 10 IoT Ent
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • 1x PCIe x16 Gen 3 slot (PCIe 3.0)
  • 1x PCIe x4 Gen 2 slot (PCIe 2.0)
  • 5x PCI slots (PCI 2.3)

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 3U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Micro ATX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 7
  • Max Card Depth: 292mm"
  • External 5.25" Bays: 2
  • Internal 3.5" Bays: 3
  • External 3.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 2
  • Physical
  • Depth: 528mm
  • Depth (Inches): 20.79
  • Width: 483mm
  • Height: 133mm
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 27"
  • Shipping Box - Height: 10"
  • Shipping Weight: 40lbs
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Chassis Warranty: 1 Year
