SL-4U-C226SAE-WB-1 This item is no longer available.

A newer version of this item is available: SL-4U-WS-PD-C236SAE-WB

4U Rack Mount Industrial PC - Rackmount featuring Intel C226 Chipset, Xeon E3-1200v3 (LGA1150, 'Haswell'), 2x GB (10/100/1000) LAN, 2x Serial, Up to 32GB RAM, 10x USB 2.0 Ports ( 2 Front, 4 Rear, 4 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Rear, 4 Internal Headers ), 7x Expansion Slots.



Type:

  • 4U Rack Mount Industrial PC
  • Depth: 17.50", Max Card Depth: 12.28 inches"

Motherboard:

  • Featuring Intel C226 Chipset and Xeon E3-1200v3 (LGA1150, 'Haswell') processor
  • Full Height Slots:
    2 - PCIe x16
    3 - PCIe x1
    2 - PCI
  • LAN: 2x Ports (GB (10/100/1000))
  • RAID: 0,1,5,10
  • Video: VGA + HDMI + DVI-I + DisplayPort
  • Audio: Realtek® ALC1150
  • Ports:
    10x USB 2.0 Ports ( 2 Front, 4 Rear, 4 Internal Headers )
    6x USB 3.2 Gen 1 Ports ( 2 Rear, 4 Internal Headers )
    2x COM Ports (RS232 Internal Headers)
    s
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
  • Memory: 4GB DDR3 1600MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

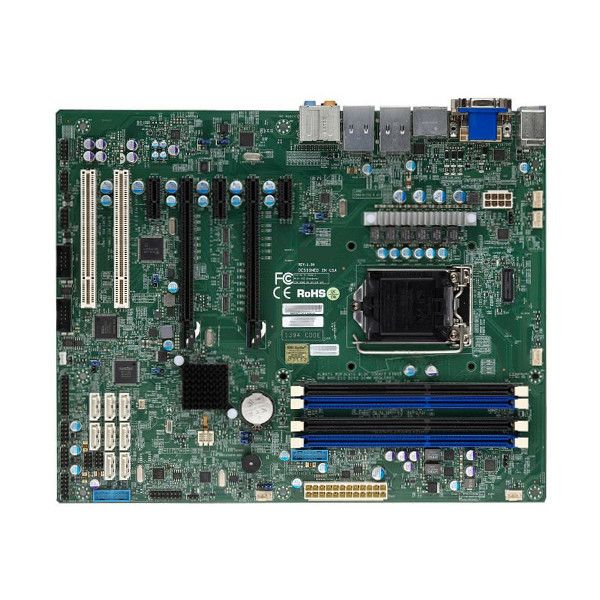

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Xeon E3-1200v3 (LGA1150, 'Haswell')
  • Chipset
  • Chipset: Intel C226 Chipset
  • Memory
  • Memory Type: DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: Realtek® ALC1150
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + HDMI + DVI-I + DisplayPort
  • VGA Port Out: 1
  • DVI-D Out: 1
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i217LM
  • Second LAN Chipset: Intel® i210AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 8
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 2
  • PCI Express x1 Slots On Motherboard: 3
  • PCI Slots (Conventional 32-Bit): 2

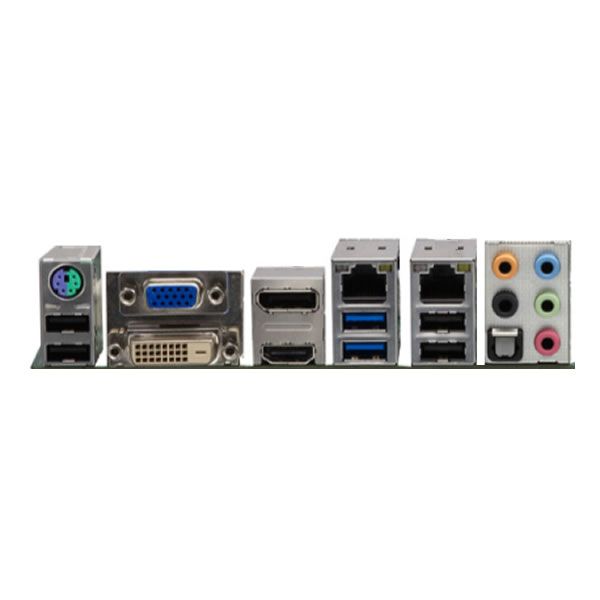

  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 2
  • SPDIF Connector: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 6
  • USB 3.0 Ports (on Headers): 4
  • Firewire Ports: 2
  • Serial (via Headers): 2
  • FAN Connectors: 5
  • DOM
  • Chassis Intrusion
  • TPM Support: Via 2.0 Header
  • Management Features
  • vPRO
  • Watch Dog
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
  • High Humidity: 90%
  • Low Humidity: 10%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value
  • Windows 10 IoT Ent
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Windows Server 2012
  • Windows Server 2016 STD
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    PCI-Express

    • 2x PCI-E 3.0 x16 slots - Function as: 16/NA or 8/8
    • 3x PCI-E 2.0 x1 slots



    PCI

    • 2x PCI 5V 32-bit slots



    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 4U Rackmount
  • Front Changeable Air Filter
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1.20mm
  • Motherboard Compatibility: ATX
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 7
  • Max Card Depth: 12.28 inches"
  • External 5.25" Bays: 3
  • Internal 3.5" Bays: 4
  • External 3.5" Bays: 2
  • Serial Port Punchouts: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 1
  • Physical
  • Depth: 17.50"
  • Depth (Inches): 17.5
  • Width: 16.90"
  • Height: 7"
  • Shipping Box - Depth: 23"
  • Shipping Box - Width: 22"
  • Shipping Box - Height: 12"
  • Shipping Weight: 28lbs
  • Compliance of Component
  • RoHS
  • Other Features
  • Chassis Warranty: 1 Year
