SL-4U-LLH81-HA-ISA

4U Rack Mount Industrial PC - Rackmount featuring Intel H81 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 2x GB (10/100/1000) LAN, HDD or SSD, 10x Serial, Up to 16GB RAM, 8x USB 2.0, 2x USB 3.0, 7x Expansion Slots, 350W Power Supply

4U Rack Mount Industrial PC - Rackmount featuring Intel H81 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 2x GB (10/100/1000) LAN, HDD or SSD, 10x Serial, Up to 16GB RAM, 8x USB 2.0, 2x USB 3.0, 7x Expansion Slots
  • Angle
  • Front
  • Front Door Open

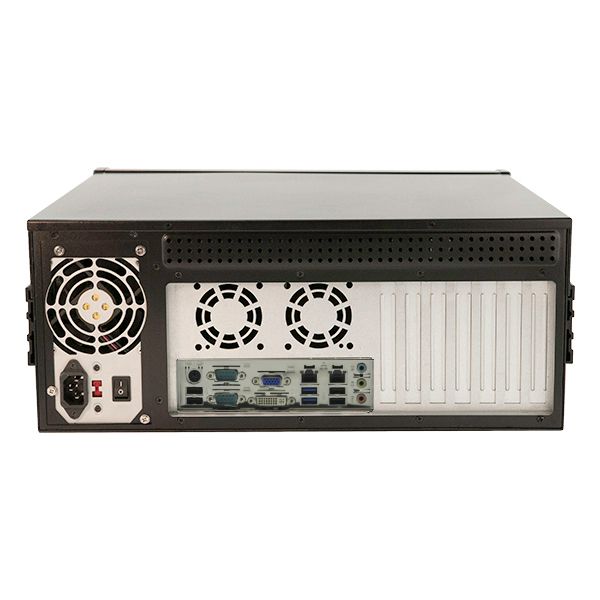

  • I/O
  • Motherboard Angle

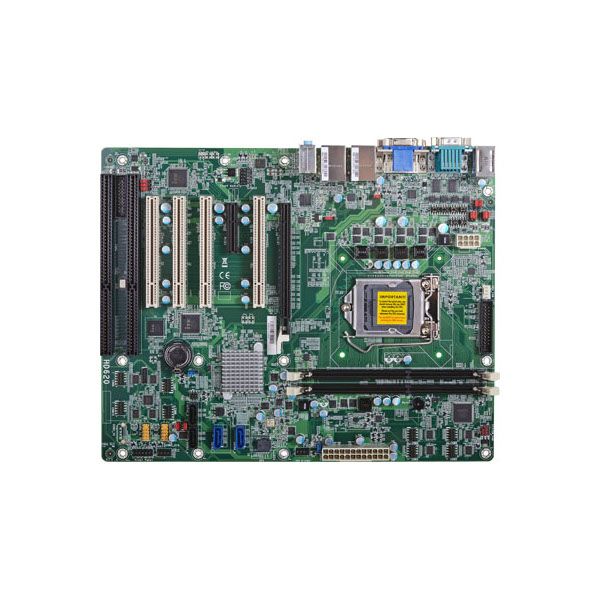

  • Motherboard
  • Dimensions

Type:

  • 4U Rack Mount Industrial PC
  • Depth: 17.70", Max Card Depth: 12.28", Locking Front Bezel

Motherboard:

  • Featuring Intel H81 Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
  • Full Height Slots:
    1 - PCIe x16
    1 - PCIe x4
    3 - PCI
    2 - ISA
  • LAN: 2x GB (10/100/1000)
  • RAID: 0,1,5,10 via LSI MegaRAID
  • Video: VGA + DVI-D
  • Audio: 5.1 channel by Realtek® ALC886
  • Ports:
    8x USB 2.0 Ports ( 2 Front, 4 Rear, 2 via internal headers )
    2x USB 3.0 Ports ( 2 Rear )
    10x COM Ports (8 on Headers, 2 RS232/422/485 Rear)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM) - Upgradeable
  • Memory: 4GB DDR3 1600MHz RAM - Upgradeable
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue - Upgradeable
  • Power Supply: 350W Power Supply - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Removable Drive Bay
Hard Drive
Additional Hard Drives
Raid Controller
Cable
Plug-In Boards
Add-In Graphic Card
Networking
Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell')
  • Chipset
  • Chipset: Intel H81 Chipset
  • Memory
  • Memory Type: DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: 5.1 channel by Realtek® ALC886
  • On Board Video
  • Video Chipset: Intel HD Graphics
  • Video on IO: VGA + DVI-D
  • VGA Port Out: 1
  • DVI-D Out: 1
  • LAN
  • LAN Ports: 2
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i217LM
  • Second LAN Chipset: Intel® 82574L
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • SATA III Ports (6GB): 2
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • PCI Express x4 Slots On Motherboard: 1
  • PCI Slots (Conventional 32-Bit): 3
  • ISA Slots: 2
  • mini PCIe
  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 2
  • Serial 232/422/485 Ports: 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 2.0 Ports (Type A): 1
  • Serial (via Headers): 8
  • Parallel Ports: 1
  • SPDIF Connector: 1
  • FAN Connectors: 2
  • Digital I/O (8 Bit) On Headers
  • Audio on Headers
  • Chassis Intrusion
  • Management Features
  • Watch Dog
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent-Value
  • Windows 10 IoT Ent
  • Windows Server 2012
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • CB
  • Other Features
  • 1 PCIe x16 Gen 3 slot (PCIe 3.0)
  • 1 PCIe x4 Gen 2 slot (PCIe 2.0) - x1 signal
  • 4 PCI slots (PCI 2.3) - 1 shared with ISA slot
  • 2 ISA slots

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 4U Rackmount
  • Locking Bezel: 1
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 7
  • Max Card Depth: 12.28"
  • External 5.25" Bays: 3
  • Internal 3.5" Bays: 2
  • External 3.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 1
  • Physical
  • Depth: 17.70"
  • Depth (Inches): 17.7
  • Width: 19"
  • Height: 7"
  • Shipping Box - Depth: 26"
  • Shipping Box - Width: 23"
  • Shipping Box - Height: 12"
  • Shipping Weight: 45lbs
  • Compliance of Component
  • RoHS
  • Other Features
  • Chassis Warranty: 1 Year
