SL-4U-LLH812-HA This item is no longer available.

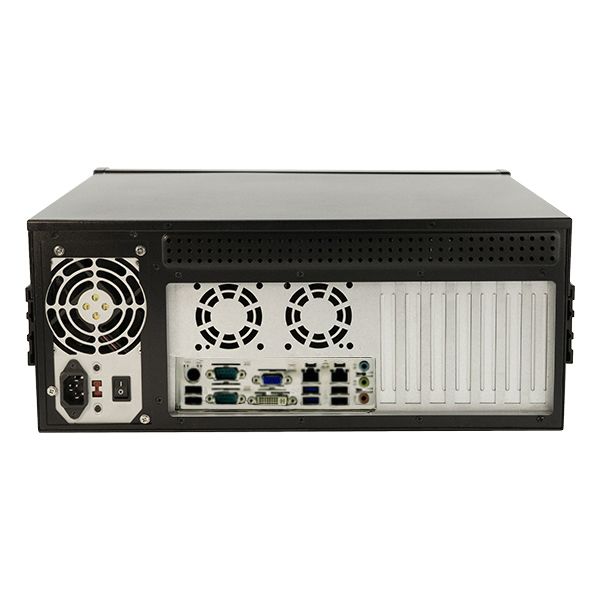

4U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2020) with Intel H81 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 2x GB (10/100/1000) LAN, 10x Serial, Up to 16GB RAM, 6x USB 2.0 Ports ( 2 Front, 4 Rear ), 2x USB 3.2 Gen 1 Ports ( 2 Rear ), 7x Expansion Slots.



Type:

  • 4U Rack Mount Industrial PC
  • Depth: 17.70", Max Card Depth: 12.28", Locking Front Bezel

Motherboard:

  • Featuring Intel H81 Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
  • Long Production Cycle Motherboard (Through Q3 2020)
  • Full Height Slots:
    1 - PCIe x16
    1 - PCIe x4
    5 - PCI
  • LAN: 2x Ports (GB (10/100/1000))
  • Video: VGA + DVI-D
  • Audio: 5.1 channel by Realtek® ALC886
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 4 Rear )
    2x USB 3.2 Gen 1 Ports ( 2 Rear )
    10x COM Ports (2 RS232 Rear, 7 RS232 Internal Headers, 1 RS232/422/485 Internal Headers)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
  • Memory: 4GB DDR3 1600MHz RAM
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q3 2020
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell')
  • Chipset
  • Chipset: Intel H81 Chipset
  • Memory
  • Memory Type: DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: 5.1 channel by Realtek® ALC886
  • On Board Video
  • Video Chipset: Intel HD Graphics
  • Video on IO: VGA + DVI-D
  • VGA Port Out: 1
  • DVI-I Out (DVI-D Signal): 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i210AT
  • Second LAN Chipset: Intel® i210AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • SATA III Ports (6GB): 2
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • PCI Express x4 Slots On Motherboard: 1
  • PCI Slots (Conventional 32-Bit): 5
  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 2
  • Serial (Rear IO): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 2.0 Ports (Type A): 1
  • Serial (via Headers): 7
  • Serial 232/422/485 Ports: 1
  • Parallel Ports: 1
  • SPDIF Connector: 1
  • eSATA Ports: 4
  • FAN Connectors: 3
  • Digital I/O (8 Bit) On Headers
  • Audio on Headers
  • Chassis Intrusion
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value
  • Windows 10 IoT Ent
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • 1x PCIe x16 Gen 3 slot (PCIe 3.0)
  • 1x PCIe x4 Gen 2 slot (PCIe 2.0)
  • 5x PCI slots (PCI 2.3)

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 4U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 7
  • Max Card Depth: 12.28"
  • External 5.25" Bays: 3
  • Internal 3.5" Bays: 2
  • External 3.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 1
  • Physical
  • Depth: 17.70"
  • Depth (Inches): 17.7
  • Width: 19"
  • Height: 7"
  • Shipping Box - Depth: 26"
  • Shipping Box - Width: 23"
  • Shipping Box - Height: 12"
  • Shipping Weight: 45lbs
  • Other Features
  • Chassis Warranty: 1 Year
