SL-4U-PD-Q170SSQ-WB This item is no longer available.

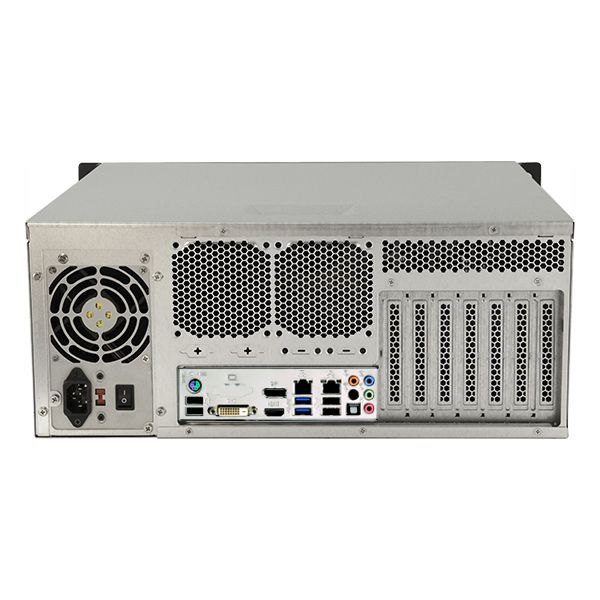

4U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2025) with Intel Q170 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x GB (10/100/1000) LAN, 4x Serial, Up to 64GB RAM, 8x USB 2.0 Ports ( 4 Rear, 4 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 4x Expansion Slots.
Type:
- 4U Rack Mount Industrial PC
- Depth: 17.50", Max Card Depth: 12.28 inches"
Motherboard:
- Featuring Intel Q170 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
- Long Production Cycle Motherboard (Through Q4 2025)
- Full Height Slots:
1 - PCIe x16
2 - PCIe x4
1 - PCIe x1 - LAN: 2x Ports (GB (10/100/1000))
- RAID: 0,1,5,10
- Video: DVI-D + HDMI + DisplyPort
- Audio: 7.1 Channel HD Audio by Realtek® ALC888S
- Ports:
8x USB 2.0 Ports ( 4 Rear, 4 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
4x COM Ports (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
Chassis Specifications:
