SL-4U-W480ACE-WB This item is no longer available.
4U Rack Mount Industrial PC - Rackmount featuring Intel W480 Chipset, 10th / 11th Gen Intel Core i9, i7, i5, i3/Pentium/Celeron, Intel Xeon W-1200, 1x Serial, Up to 128GB RAM, 4x USB 2.0 Ports ( 4 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 4x USB 3.2 Gen 2 Ports ( 4 Rear ), 5x Expansion Slots.
Type:
- 4U Rack Mount Industrial PC
- Depth: 17.50", Max Card Depth: 12.28 inches"
Motherboard:
- Featuring Intel W480 Chipset and 10th / 11th Gen Intel Core i9, i7, i5, i3/Pentium/Celeron, Intel Xeon W-1200 processor
- Full Height Slots:
3 - PCIe x16
2 - PCIe x1 - LAN: 2.5 Gigabit + 1 Gigabit
- RAID: 0,1,5,10
- Video: DisplayPort + HDMI
- Audio: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
- Ports:
4x USB 2.0 Ports ( 4 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
4x USB 3.2 Gen 2 Ports ( 4 Rear )
2x Thunderbolt™ 3 (supports USB 3.2 Gen 2) Type-C Port (Rear)
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 5ºC to 40ºC (41ºF to 104ºF)
Also Included:
- Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
- Memory: 8GB DDR4 3200MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: 10th / 11th Gen Intel Core i9, i7, i5, i3/Pentium/Celeron, Intel Xeon W-1200
- Chipset
- Chipset: Intel W480 Chipset
- Memory
- Memory Type: DDR4 2666MHz
- Memory Type: ECC Unbuffered
- DIMMS: 4
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: DisplayPort + HDMI
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Type: 2.5 Gigabit + 1 Gigabit
- LAN Chipset: Intel® i225-LM 2.5GbE Ethernet
- Second LAN Chipset: Realtek® RTL8117
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 3
- PCI Express x1 Slots On Motherboard: 2
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- M.2 SATA SSD
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

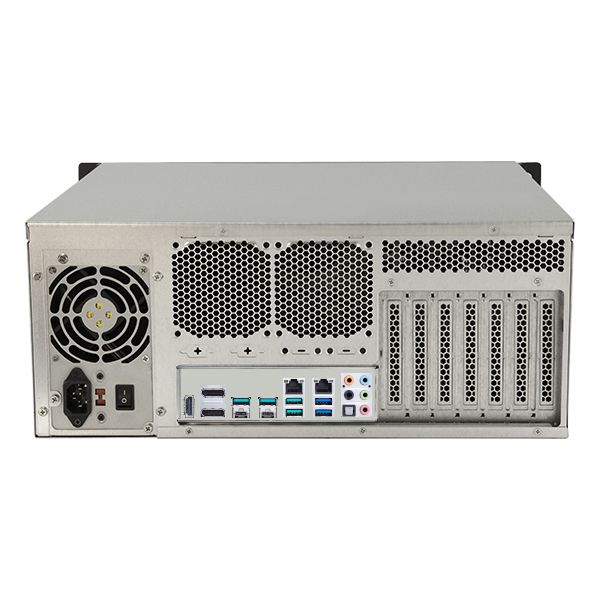

- Rear IO
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- USB 3.2 Gen 2 Type A Ports (on IO): 4
- Thunderbolt™ 3 (supports USB 3.2 Gen 2) Type-C Port: 2
- SPDIF Connector: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 2
- Serial (via Headers): 1
- FAN Connectors: 5
- Audio on Headers
- Environmental
- Operating Temperature: 5ºC to 40ºC (41ºF to 104ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- RoHS
- FCC
- Other Features
- Other Features:
2 x Thunderbolt™ 3 ports (USB Type-C®) supports DisplayPort 1.4 and
Thunderbolt™ video outputs from an add-on graphics card**
* Output at TBT(U32G2)_EC1, the USB Type-C® port near HDMI™, requires a
USB-C® to DisplayPort adapter cable.
* Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please
refer to www.intel.com for any update.
** Resolution depends on graphics cards’ resolution.
*** Graphics specifications may vary between CPU types.Expansion Slots
Intel® 10th Gen processors*
2 x PCIe 3.0 x16 slots
(support x16, x8/x8, x8/x4+x4, x8+x4+x4/x0 modes)
Intel® W480 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)**
2 x PCIe 3.0 x1 slots
* Support PCIe bifurcation for RAID on CPU function.
** PCIe 3.0 x4 will be switched from Thunderbolt™ 3 to PCIEX16_3 if the slot is
populated; by then Thunderbolt™ 3 will have no output.* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 4U Rackmount
- Front Changeable Air Filter
- Color: Black & Silver
- Material: Metal/Steel
- Material Thickness: 1.20mm
- Motherboard Compatibility: ATX
- Redundant Power Supply Capable
- Slide Rails: Optional
- Expansion
- Full Height Slots: 7
- Max Card Depth: 12.28 inches"
- External 5.25" Bays: 3
- Internal 3.5" Bays: 4
- External 3.5" Bays: 2
- Serial Port Punchouts: 2
- Front Ports
- USB 3.2 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 3
- Included Fans: 1
- Physical
- Depth: 17.50"
- Depth (Inches): 17.5
- Width: 16.90"
- Height: 7"
- Shipping Box - Depth: 23"
- Shipping Box - Width: 22"
- Shipping Box - Height: 12"
- Shipping Weight: 28lbs
- Compliance of Component
- RoHS
- Other Features
- Chassis Warranty: 1 Year
