SL-4U-Z490A-HA This item is no longer available.

A newer version of this item is available: SL-4U-GZ790A-HA

Desktop PC - Desktop featuring Intel Z490 Chipset, 10th Gen Core i7/i5/i3 (LGA1200), 1x 2.5GbE (10/100/1000/2500) LAN, 1x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Internal Headers ), 3x USB 3.2 Gen 2 Ports ( 3 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), 5x Expansion Slots.



Type:

  • Desktop PC
  • Dimension: 17.70" x 19" x 7", Locking Front Bezel

Motherboard:

  • Featuring Intel Z490 Chipset and 10th Gen Core i7/i5/i3 (LGA1200) processor
  • Full Height Slots:
    3 - PCIe x16
    2 - PCIe x1
  • LAN: 1x Ports (2.5GbE (10/100/1000/2500))
  • RAID: 0,1,5,10
  • Video: DisplayPort + HDMI
  • Audio: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
  • Ports:
    6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
    2x USB 3.2 Gen 1 Ports ( 2 Internal Headers )
    3x USB 3.2 Gen 2 Ports ( 3 Rear )
    1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
    1x COM Port (RS232 Internal Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)

Also Included:

  • Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
  • Memory: 8GB DDR4 3200MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 10th Gen Core i7/i5/i3 (LGA1200)
  • Chipset
  • Chipset: Intel Z490 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 128GB
  • On Board Audio
  • Audio Type: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: DisplayPort + HDMI
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: 2.5GbE (10/100/1000/2500)
  • LAN Chipset: Intel® I225-V 2.5GbE Ethernet
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 6
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 3
  • PCI Express x1 Slots On Motherboard: 2
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 1
  • M.2 Slot #1 Specs
  • M.2 SATA SSD
  • PCIe Signal
  • 22110 - 22 mm x 110 mm.
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • M.2 Slot #2 Specs
  • PCIe Signal
  • 22110 - 22 mm x 110 mm.
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.

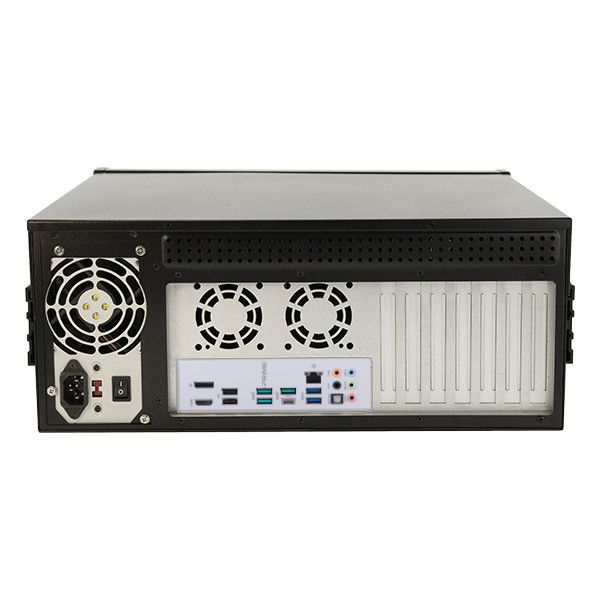

  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.2 Gen 2 Type A Ports (on IO): 3
  • USB 3.2 Gen 2 Type C Ports (on I/O): 1
  • SPDIF Connector: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.2 Gen 1 Ports (on Headers): 2
  • Serial (via Headers): 1
  • FAN Connectors: 4
  • Audio on Headers
  • Chassis Intrusion
  • Environmental
  • Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF )
  • High Humidity: 95%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Compliance of Component
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    *1 The PCIe x1_2 slot shares bandwidth with M.2 slot (Key E).
    *2 Support PCIe bifurcation for RAID on CPU function.
    *3 The M.2_1 socket shares bandwidth with SATA_2.
    *4 M.2_2 slot shares bandwidth with SATA_56. When M.2_2 slot is operating in PCIe x4 mode, SATA_56 will be disabled.

    *Intel® 10th Gen Processors
    *2 x PCIe 3.0 x16 (x16 or dual x8) *1
    *Intel® Z490 Chipset
    *1 x PCIe 3.0 x16 (max at x4 mode)
    *3 x PCIe 3.0 x1 *2



    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.



    If you have any questions, please discuss with our Sales Engineers.



  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 4U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 7
  • Max Card Depth: 12.28"
  • External 5.25" Bays: 3
  • Internal 3.5" Bays: 2
  • External 3.5" Bays: 1
  • Front Ports
  • USB 2.0 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 1
  • Physical
  • Depth: 17.70"
  • Depth (Inches): 17.7
  • Width: 19"
  • Height: 7"
  • Shipping Box - Depth: 26"
  • Shipping Box - Width: 23"
  • Shipping Box - Height: 12"
  • Shipping Weight: 45lbs
  • Other Features
  • Chassis Warranty: 1 Year
