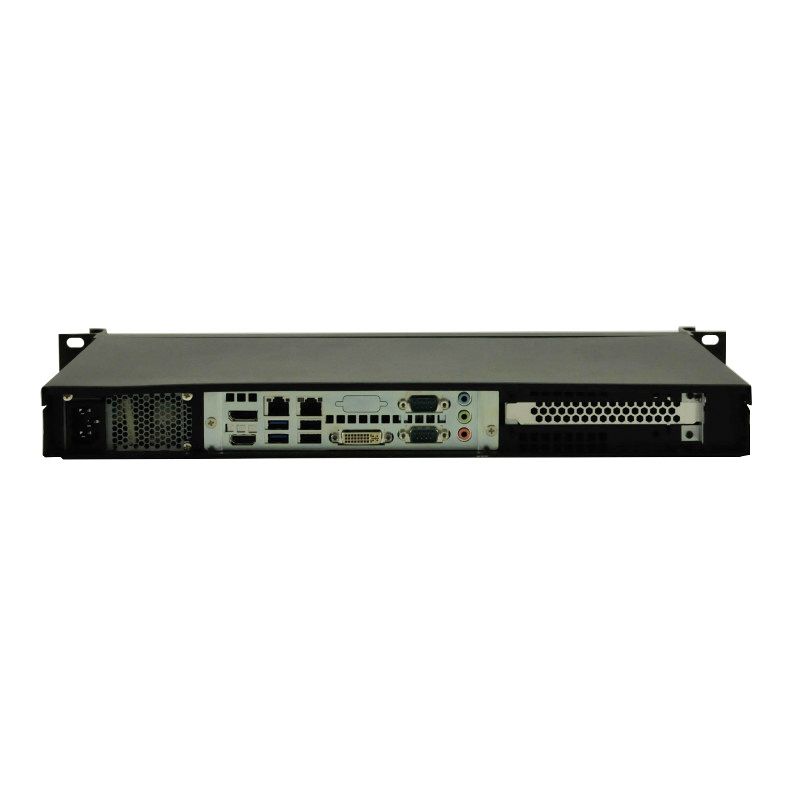

SL-1U-H81SLV-GC

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2022) with Intel H81 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 16GB RAM, 4x USB 2.0, 2x USB 3.2 Gen 1 Type A Ports (on IO), 150W 1U Flex ATX Power Supply

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

1U Rack Mount Industrial PC
Depth: 11", Max Card Depth: 6.5 inches"

Motherboard:

Featuring Intel H81 Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
Long Production Cycle Motherboard (Through Q4 2022)
Full Height Slots:
LAN: 2x Ports (GB (10/100/1000))
Video: DVI-I + HDMI + DisplayPort
Audio: 7.1 Channel HD Audio by Realtek® ALC888S
Ports:
4x USB 2.0 Ports ( 2 Front, 2 Rear )
2x 3.2 Gen 1 Type A Ports ( on IO )
4x COM Ports (2 Rear, 1 on Headers, 1 RS232/422/485 on Headers)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (0ºF to 140ºF)

Also Included:

Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
Power Supply: 150W 1U Flex ATX Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush build ships in 4-5 business days. Non-rush build time is approx. 4 weeks. Shipping not included. show $100.00

Processor

G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM) show $103.00

G3420 - 3.2GHz Intel Pentium Dual Core CPU - 3MB Cache, HD Graphics (53W) (ERM) show $134.00

i3-4330 - 3.5GHz Intel Dual Core CPU - 4MB Cache, HD Graphics 4600 (54W) (ERM) show $297.00

i5-4570S - 2.9GHz (up to 3.6GHz) Intel Quad Core CPU - 6MB Cache, HD Graphics 4600 (65W) (ERM) show $429.00

i7-4790S - 3.2GHz (up to 4.0GHz) Intel Quad Core CPU - 8MB Cache, HD Graphics 4600 (65W) (ERM) show $490.00

Memory

x 4GB DDR3L 1600MHz SODIMM RAM 1.35V show $53.00

x 8GB DDR3 1600MHz SODIMM RAM 1.35V show $80.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

Hard Drive

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $60.00

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $82.00

1.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $143.00

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $230.00

120GB SSD SATA 6.0Gb/s, 500/320MB/s read/write (or greater) show $51.00

250GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater) show $70.00

500GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater) show $117.00

2.0TB HDD SATA 6.0b/s 5400RPM 128MB Buffer 2.5" - Seagate show $136.00

480GB mSATA SSD SATA 6.0Gb/s, 520/500MB/s read/write (or greater) show $120.00

Additional Hard Drives

250GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater) show $70.00 each

500GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater) show $117.00 each

1.0TB HDD SATA 6.0b/s 5400RPM 128MB Buffer 2.5" - Seagate show $81.00 each

2.0TB HDD SATA 6.0b/s 5400RPM 128MB Buffer 2.5" - Seagate show $136.00 each

4.0TB HDD SATA 6Gb/s 5400RPM 128 MB Buffer 2.5" - Seagate show $231.00 each

120GB SSD SATA 6.0Gb/s, 500/320MB/s read/write (or greater) show $51.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $60.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $82.00 each

1.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $143.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $230.00 each

4.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $500.00 each

Cable

COM Port (Serial Port) Cable, 9-pin, w/ Standard-Height Bracket show $10.00 each

TPM 2.0 20-pin module with Infineon 9665, TCG 2.0 compliant trusted platform module show $47.00 each

Riser Card

Optional Riser Card Not Selected - Riser Required when selecting optional plug-in board(s) show $0.00

Riser Card - 1 Slot: PCIe x16 w/ extender show $52.00

1-slot PCIe x1 to PCI-32 bridge-based active riser card with extension for slot 7. show $78.00

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile.. show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $61.00 each

4-Port USB 3.0 PCIe Express Card - PCIe x1, Full-Height Only show $34.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $83.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Add-In Graphic Card

None show Included

NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support! show $218.00

NVIDIA Quadro T600 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $342.00

NVIDIA Quadro T1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $457.00

NVIDIA Quadro T1000 8GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $501.00

Networking

USB 2.0 - Mini Dual Band Wireless-AC Network Adapter show $51.00 each

PCIe x1 - WiFi 6 802.11ax Bluetooth 5.0 - Wi-Fi/Bluetooth Combo Adapter - 2.93 Gbit/s - 2.40 GHz ISM - show $85.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter - Full Height or Low Profile show $60.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $221.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $385.00 each

PCIe x4 - 2.5Gbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Profile show $72.00 each

PCIe x4 - 5Gbps Single Port Network Adapter, 5GBASE-T/NBASE-T - Full Height or Low Profile show $113.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $501.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $1,233.00 each

Power Supply

150W 1U Flex ATX Power Supply show $66.00

300W 1U Flex ATX Power Supply - 80+ Bronze Certified show $97.00

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" Deep show $925.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" Deep show $1,570.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (Short Depth: 18.1") with integrated keyboard and touchpad (VGA inputs), Includes cables for USB co show $993.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (Short Depth: 18.1") with integrated keyboard and trackball (DVI-D inputs), Includes cables for USB show $993.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included) show $1,477.00

1U Rackmount 19" LCD Keyboard Drawer, USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep Racks show $1,023.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep Racks show $1,506.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $25.00 each

Wireless Keyboard/Mouse show $45.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $111.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $110.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $149.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $135.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $341.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. show $341.00 each

External Power

Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $120.00 each

Uninterruptable Power Supply - 550VA, 120V AC, 330Watt, USB, 8 outlets show $118.00 each

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $581.00 each

Mounting Option

20" Adjustable Slide Rails - Fits 22.3" - 31" deep cabinet. Support chassis up to 23" deep show $51.00 each

24" Adjustable Slide Rails - Fits 26.3" - 39" deep cabinet. Support chassis up to 27" deep show $57.00 each

26" Adjustable Slide Rails - Fits 28.4" - 39" deep cabinet. Supported chassis up to 29" deep show $65.00 each

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MiniITX
Long Life: YES
EOL Date: Q4 2022
Supported CPU
Number of Processors: 1
Processor Type: 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell')
Chipset
Chipset: Intel H81 Chipset
Memory
Memory Type: SO DIMM DDR3 1600MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 16GB
On Board Audio
Audio Type: 7.1 Channel HD Audio by Realtek® ALC888S
On Board Video
Video Chipset: Intel HD Graphics 4600
Video on IO: DVI-I + HDMI + DisplayPort
DVI-I Out: 1
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type: GB (10/100/1000)
LAN Chipset: Intel® i210AT
Second LAN Chipset: Intel® i217V
Wireless LAN: No Integrated WLAN
Drive Interface
SATA II Ports (3GB): 2
SATA III Ports (6GB): 2
Mini PCIe
mini PCIe
mSATA
half and/or full size mini PCIe card: full/half size
mSATA
USB and PCIe signals
3G Data Support
mSATA
M.2 Slot Specs
22110 - 22 mm x 110 mm.
Rear IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 2
Serial (Rear IO): 2
Audio on IO
Headers
USB 2.0 Ports (on Headers): 2
USB 2.0 Ports (Type A): 1
Serial (via Headers): 1
Serial 232/422/485 Ports: 1
FAN Connectors: 3
Audio on Headers
DOM
Chassis Intrusion
TPM Support: Via 2.0 Header
Management Features
NMI
Watch Dog
Environmental
Operating Temperature: 0ºC to 60ºC (0ºF to 140ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
Windows 7 Ultimate (64-bit)
Windows 7 Pro (32-bit)
Windows 7 Pro (64-bit)
Windows 7 Pro (FES) 32-Bit
Windows 7 Pro (FES) 64-Bit
SL-Windows 10PRO to 7PRO 32-bit
SL-Windows 10PRO to 7PRO 64-bit
Windows Embedded 7 (32-Bit)
Windows Embedded 7 (64-Bit)
Windows 8.1 (32-bit)
Windows 8.1 (64-bit)
Windows 8.1 Pro (32-bit)
Windows 8.1 Pro (64-bit)
Windows Embedded 8 (32-bit)
Windows Embedded 8 (64-bit)
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
Windows 10 IoT Value
Windows 10 IoT Ent
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
UL
CE
RoHS
FCC
Other Features
Other Features:
PCI-E
- 1 PCI-E 2.0 x16,
- Mini-PCIe with mSATA support
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: 1U Rackmount
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: Mini ITX
Slide Rails: Optional
Expansion
Full Height Slots: 1
Max Card Depth: 6.5 inches"
Internal 2.5" Bays: 2
Front Ports
USB 2.0 Port (Front): 2
Cooling System
Maximum Fan Count: 2
Included Fans: 2
Physical
Depth: 11"
Depth (Inches): 11
Width: 19.10"
Height: 1.75"
Shipping Box - Depth: 22"
Shipping Box - Width: 15"
Shipping Box - Height: 5"
Shipping Weight: 15lbs
Other Features
Chassis Warranty: 1 Year

Available Downloads

SuperLogics CAD Legal Disclaimer

By downloading a CAD drawing or multiple CAD drawings (collectively as may be downloaded by any requestor on behalf of the Company, the "CAD Drawings"), the requestor agrees to use such CAD Drawings only subject to these Use Restrictions Terms ("Use Terms") and warrants that it is a customer of SuperLogics, Inc. or is exploring designing SuperLogics products into its products ("Company"). All downloaded information remains SuperLogics’ property. For clarity, Company does not acquire any intellectual property rights, including licenses, under these Use Terms. Company agrees not to use, reverse engineer, decompile or disassemble any downloaded CAD Drawings. Information is provided "AS IS" and SuperLogics disclaims all warranties regarding Confidential Information disclosed hereunder and nothing herein will create any rights or commitments to enter into any business transaction. Any dispute arising out of or connected with these Use Terms, including a dispute as to the validity or existence thereof shall be subject to the sole and exclusive jurisdiction of the Massachusetts courts.

CASE-1U-D-118V2-ITX

SuperLogics 1U-GC 3D drawing (File Type: STEP)

SuperLogics 1U-GC- Drawing (File Type: PDF)
