SL-1U-LLH110A-GC

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2022) with Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 32GB RAM, 4x USB 2.0, 4x USB 3.0, 150W 1U Flex ATX Power Supply

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2022) with Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 32GB RAM, 4x USB 2.0, 4x USB 3.0
  • Angle
  • Front

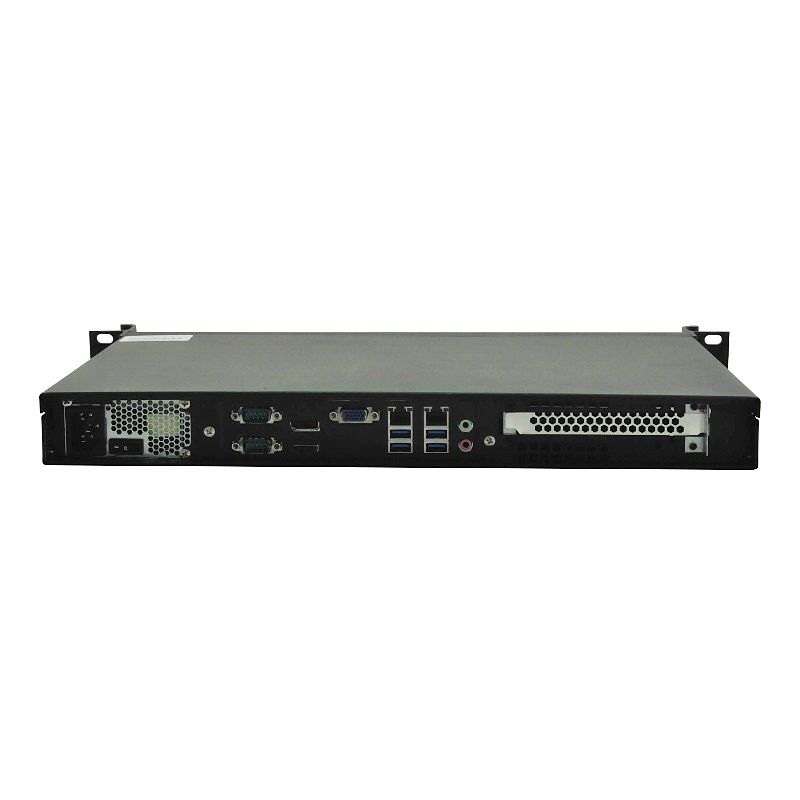

  • I/O
  • TOP
  • Dimensions

Type:

  • 1U Rack Mount Industrial PC
  • Depth: 11", Max Card Depth: 6.5 inches"

Motherboard:

  • Featuring Intel H110 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
  • Long Production Cycle Motherboard (Through Q3 2022)
  • LAN: 2x GB (10/100/1000)
  • Video: VGA + DisplayPort + HDMI
  • Audio: Intel® HD Audio
  • Ports:
    4x USB 2.0 Ports ( 2 Front 2 via internal headers )
    4x USB 3.0 Ports ( 4 Rear )
    4x COM Ports (1 Rear, 2 on Headers, 1 RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) - Upgradeable
  • Memory: 4GB DDR4 2400MHz SODIMM RAM - Upgradeable
  • Hard Drive: 500GB SATA 6Gb/s 7200 RPM 32MB 2.5" WD Black - Upgradeable
  • Power Supply: 150W 1U Flex ATX Power Supply - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Hard Drive
Additional Hard Drives
Cable
Riser Card
Plug-In Boards
Add-In Graphic Card
Networking
Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q3 2022
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
  • Chipset
  • Chipset: Intel H110 Chipset
  • Memory
  • Memory Type: SO DIMM DDR4 2133Mhz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: Intel® HD Audio
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + DisplayPort + HDMI
  • VGA Port Out: 1
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i219V
  • Second LAN Chipset: Intel® i210AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SAS 6G Ports: 4
  • mini PCIe
  • mSATA
  • USB and PCIe signals
  • half and/or full size mini PCIe card: full/half size
  • Rear IO
  • USB 3.0 Ports (on IO): 4
  • Serial (Rear IO): 1
  • Serial 232/422/485 Ports: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • Serial (via Headers): 2
  • LVDS
  • TPM Support: Via 2.0 Header
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • Windows 7 Ultimate (64-bit)
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent-Value
  • Windows 10 IoT Ent
  • LINUX Ubuntu Desktop
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    1 x PCIe 3.0 x16 (in x16) slot

    1 (half/full size, supports PCIe x1 and USB device)

    1 (full size, shared SATA and USB device)

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 6.5 inches"
  • Internal 2.5" Bays: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 2
  • Physical
  • Depth: 11"
  • Depth (Inches): 11
  • Width: 19"
  • Height: 1.75"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 15"
  • Shipping Box - Height: 5"
  • Shipping Weight: 15lbs
  • Compliance of Component
  • RoHS
  • Other Features
  • Chassis Warranty: 1 Year
