SL-1U-Q87SLQ-LG

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2020) with Intel Q87 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 32GB RAM, 8x USB 2.0, 4x USB 3.0, 260W ATX12V Power Supply

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2020) with Intel Q87 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 2x GB (10/100/1000) LAN, HDD or SSD, 4x Serial, Up to 32GB RAM, 8x USB 2.0, 4x USB...
  • Angle
  • Front
  • Angle Left

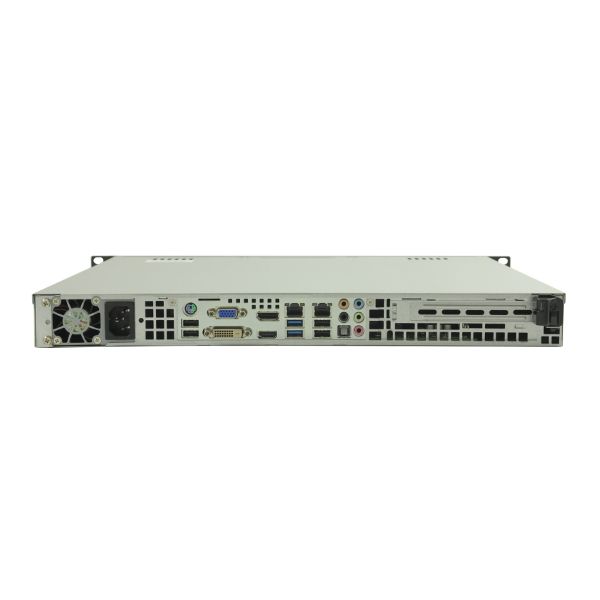

  • Rear IO View
  • TOP
  • Dimensions
  • Chassis Supports 1x 3.5" HDD or 2x 2.5" HDD/SSD

Type:

  • 1U Rack Mount Industrial PC
  • Depth: 14", Max Card Depth: 12.28"

Motherboard:

  • Featuring Intel Q87 Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
  • Long Production Cycle Motherboard (Through Q3 2020)
  • LAN: 2x GB (10/100/1000)
  • RAID: 0,1
  • Video: HDMI + DisplayPort + VGA + DVI-D
  • Audio: 7.1 Channel HD Audio by Realtek® ALC888S
  • Ports:
    8x USB 2.0 Ports ( 2 Front, 4 Rear, 2 via internal headers )
    4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
    4x COM Ports (3 on Headers, 1 RS232/422/485 on Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM) - Upgradeable
  • Memory: 4GB DDR3 1600MHz RAM - Upgradeable
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue - Upgradeable
  • Power Supply: 260W ATX12V Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Hard Drive
Raid Controller
Cable
Riser Card
Plug-In Boards
Add-In Graphic Card
Networking
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q3 2020
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell')
  • Chipset
  • Chipset: Intel Q87 Chipset
  • Memory
  • Memory Type: DDR3 1600MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: 7.1 Channel HD Audio by Realtek® ALC888S
  • On Board Video
  • Video Chipset: Intel HD Graphics 4600
  • Video on IO: HDMI + DisplayPort + VGA + DVI-D
  • VGA Port Out: 1
  • DVI-D Out: 1
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Intel® i217LM
  • Second LAN Chipset: Intel® i210AT
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 5
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • mSATA
  • half and/or full size mini PCIe card: full/half size
  • mSATA
  • Rear IO
  • PS/2 Combo (Mouse/Keyboard)
  • USB 2.0 Ports (on IO): 4
  • USB 3.0 Ports (on IO): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 4
  • USB 3.0 Ports (on Headers): 2
  • Serial (via Headers): 3
  • Serial 232/422/485 Ports: 1
  • FAN Connectors: 4
  • Audio on Headers
  • DOM
  • PS/2 Combo (Mouse/Keyboard) on Headers
  • Chassis Intrusion
  • TPM Support: Via 1.2 Header
  • Management Features
  • AMT
  • vPRO
  • NMI
  • Watch Dog
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent-Value
  • Windows 10 IoT Ent
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • RoHS
  • Other Features
  • Other Features:
    • 1x PCI-E 3.0 x16 (in x16) slot
    • 1x PCI-E 2.0 x4 slot
    • 1x PCI-E 2.0 x1 slot
    • 1x Mini-PCI-E w/ mSATA support

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 12.28"
  • Internal 3.5" Bays: 1
  • Slim CDBay: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 1
  • Included Fans: 1
  • Physical
  • Depth: 14"
  • Depth (Inches): 14
  • Width: 16.80"
  • Height: 1.70"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 21"
  • Shipping Box - Height: 7"
  • Shipping Weight: 20lbs
  • Other Features
  • Chassis Warranty: 1 Year
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: 260W ATX12V Power Supply
