SL-2U-GQ570M-WD This item is no longer available.
2U Rack Mount Industrial PC - Rackmount featuring Intel Q570 Chipset, 10th/11th Gen Core i7/i5/i3 (LGA1200), 2x GB (10/100/1000) LAN, 2x Serial, Up to 128GB RAM, 4x USB 2.0 Ports ( 2 Rear, 2 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear ), 1x USB 3.2 Gen 2 Port ( 1 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), 4x Expansion Slots.
TPM Support: 2.0 Module Included
Type:
- 2U Rack Mount Industrial PC
- Depth: 18", Max Card Depth: 12.25", Locking Front Bezel
Motherboard:
- Featuring Intel Q570 Chipset and 10th/11th Gen Core i7/i5/i3 (LGA1200) processor
- Low Profile Slots:
2 - PCIe x16
1 - PCIe x1
1 - PCI - LAN: 2x Ports (GB (10/100/1000))
- RAID: 0,1,5,10
- Video: VGA + HDMI + DisplayPort
- Audio: Realtek® Audio CODEC
- Ports:
4x USB 2.0 Ports ( 2 Rear, 2 Internal Headers )
6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear )
1x USB 3.2 Gen 2 Port ( 1 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
2x COM Ports (RS232 Internal Headers)
1x Parallel Port (Headers)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (0ºF to 122ºF)
Also Included:
- Processor: G5900- 3.40GHz Intel Celeron CPU - Dual Core, 2MB Cache, UHD Graphics 610 (58W) or Better
- Memory: 8GB DDR4 3200MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Supported CPU
- Number of Processors: 1
- Processor Type: 10th/11th Gen Core i7/i5/i3 (LGA1200)
- Chipset
- Chipset: Intel Q570 Chipset
- Memory
- Memory Type: DDR4 2666MHz
- Memory Type: Non-ECC
- DIMMS: 4
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: Realtek® Audio CODEC
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: VGA + HDMI + DisplayPort
- VGA Port Out: 1
- Display Port Out: 2
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Type: GB (10/100/1000)
- LAN Chipset: Intel® GbE LAN chip
- Second LAN Chipset: Intel® GbE LAN chip
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 2
- PCI Express x1 Slots On Motherboard: 1
- PCI Slots (Conventional 32-Bit): 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- M.2 SATA SSD
- PCIe Signal
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

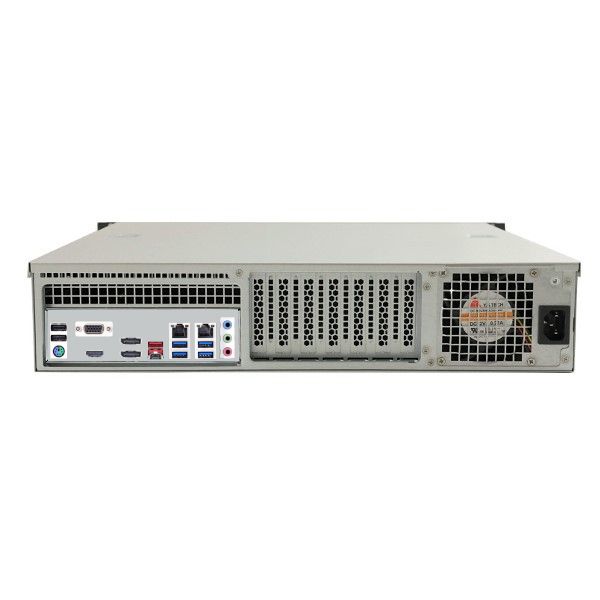

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 4
- USB 3.2 Gen 2 Type A Ports (on IO): 1
- USB 3.2 Gen 2 Type C Ports (on I/O): 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- Thunderbolt 3 via Header: 2
- Serial (via Headers): 2
- Parallel Ports: 1
- FAN Connectors: 2
- Audio on Headers
- TPM Support: 2.0 Module Included
- Environmental
- Operating Temperature: 0ºC to 50ºC (0ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Windows 10 IoT 2021 LTSC Value
- Windows 10 IoT 2021 LTSC High End
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Other Features:
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
(Note) Supported by 11th Generation processors only. - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) - 1 x PCI slot
- 1 x M.2 Socket 1 connector for an Intel® CNVi or PCIe wireless module (M2_WIFI)
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)
(Note) Supported by 11th Generation processors only. - 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 2U Rackmount
- Color: Black & Silver
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Slide Rails: Optional
- Expansion
- Low Profile Slots: 7
- Max Card Depth: 12.25"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 2
- External 3.5" Bays: 1
- Internal 2.5" Bays: 1
- Front Ports
- USB 3.2 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 3
- Included Fans: 1
- Physical
- Depth: 18"
- Depth (Inches): 18
- Width: 16.90"
- Height: 3.50"
- Shipping Box - Depth: 20"
- Shipping Box - Width: 40"
- Shipping Box - Height: 40"
- Shipping Weight: 35lbs
- Compliance of Component
- RoHS
- Other Features
- Chassis Warranty: 1 Year
