SL-2U-LLH310M-WD This item is no longer available.

A newer version of this item is available: SL-2U-GH510M-WD

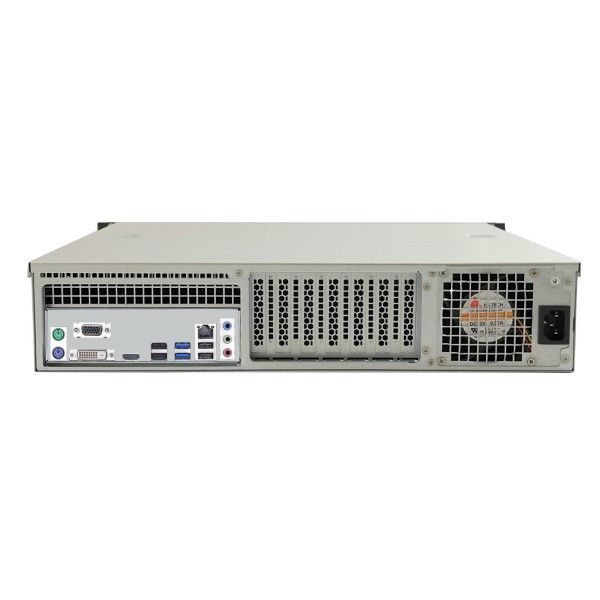

2U Rack Mount Industrial PC - Rackmount featuring Intel H310 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 1x GB (10/100/1000) LAN, Up to 32GB RAM, 6x USB 2.0 Ports ( 4 Rear, 2 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 3x Expansion Slots.



Type:

  • 2U Rack Mount Industrial PC
  • Depth: 18", Max Card Depth: 12.25", Locking Front Bezel

Motherboard:

  • Featuring Intel H310 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
  • Low Profile Slots:
    1 - PCIe x16
    2 - PCIe x1
  • LAN: 1x Ports (GB (10/100/1000))
  • Video: VGA + DVI-D + HDMI
  • Audio: Realtek® ALC887 codec
  • Ports:
    6x USB 2.0 Ports ( 4 Rear, 2 Internal Headers )
    4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (0ºF to 122ºF)

Also Included:

  • Processor: G4900 - 3.1GHz Intel Celeron CPU - Dual Core, 2MB Cache, UHD Graphics 610 (54W) (ERM) - or Better
  • Memory: 8GB DDR4 2666MHz RAM
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 8th and 9th Gen Core i7/i5/i3 (LGA1151)
  • Chipset
  • Chipset: Intel H310 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: Realtek® ALC887 codec
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + DVI-D + HDMI
  • VGA Port Out: 1
  • DVI-D Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8118
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 4
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • PCI Express x1 Slots On Motherboard: 2
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 1
  • M.2 Slot #1 Specs
  • M.2 SATA SSD
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 4
  • USB 3.2 Gen 1 Type A Ports (on IO): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.2 Gen 1 Ports (on Headers): 2
  • FAN Connectors: 2
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (0ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value
  • Windows 10 IoT Ent
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Windows 11 Home (64 Bit)
  • Windows 11 Pro (64 Bit)
  • Windows 11 Pro for WS (64 Bit)
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    Expansion Slots

    • 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    • 2 x PCI Express x1 slots
      (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

    M.2 Slot

    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black & Silver
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: ATX
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 7
  • Max Card Depth: 12.25"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 2
  • External 3.5" Bays: 1
  • Internal 2.5" Bays: 1
  • Front Ports
  • USB 3.2 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 1
  • Physical
  • Depth: 18"
  • Depth (Inches): 18
  • Width: 16.90"
  • Height: 3.50"
  • Shipping Box - Depth: 20"
  • Shipping Box - Width: 40"
  • Shipping Box - Height: 40"
  • Shipping Weight: 35lbs
  • Compliance of Component
  • RoHS
  • Other Features
  • Chassis Warranty: 1 Year
