SL-2U-MCX-C622DPIT-LG

2U Rack Mount Server - Rackmount featuring Intel C622 Chipset, Intel® Xeon® Scalable Processors, 2x 10GBase-T LAN, HDD or SSD, 1x Serial, Up to 2048GB RAM, 2x USB 2.0, 4x USB 3.0, 6x Expansion Slots, 1000W Redundant Power Supplies with PMBus 80+ Titanium

Type:

  • 2U Rack Mount Server
  • Depth: 25.50", Max Card Depth: 8 - 14 Inches"

Motherboard:

  • Featuring Intel C622 Chipset and Intel® Xeon® Scalable Processors processor
  • Low Profile Slots:
    4 - PCIe x16
    2 - PCIe x8
  • LAN: 2x 10GBase-T
  • RAID: 0,1,5,10
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    2x USB 2.0 Ports ( 2 Front, 2 Rear )
    4x USB 3.0 Ports ( 2 Rear, 2 via internal headers )
    1x COM Port (Rear)
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: 2 x Xeon Bronze 3104 - 1.70GHz Six Core Intel Processor - 8.25MB Cache (85W)
  • Memory: 2 x 8GB DDR4 2400MHz ECC Registered RAM
  • Hard Drive: 250GB NVMe SSD M.2 3.5GB/2.3GB - Samsung 970 EVO Plus
  • Power Supply: 1000W Redundant Power Supplies with PMBus 80+ Titanium
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: Extended ATX
  • Supported CPU
  • Number of Processors: 2
  • Processor Type: Intel® Xeon® Scalable Processors
  • Chipset
  • Chipset: Intel C622 Chipset
  • Memory
  • Memory Type: DDR4 2400MHz ECCR
  • Memory Type: ECC Registered
  • DIMMS: 16
  • Maximum Memory: 2048GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: ASPEED AST2500 BMC
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: 10GBase-T
  • LAN Chipset: Intel® X722
  • Second LAN Chipset: Intel® X557
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 14
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 4
  • PCI Express x8 Slots On Motherboard: 2
  • mini PCIe
  • M.2
  • M.2 NVMe: 1
  • M.2
  • PCIe
  • 110mm
  • 60mm
  • 80mm

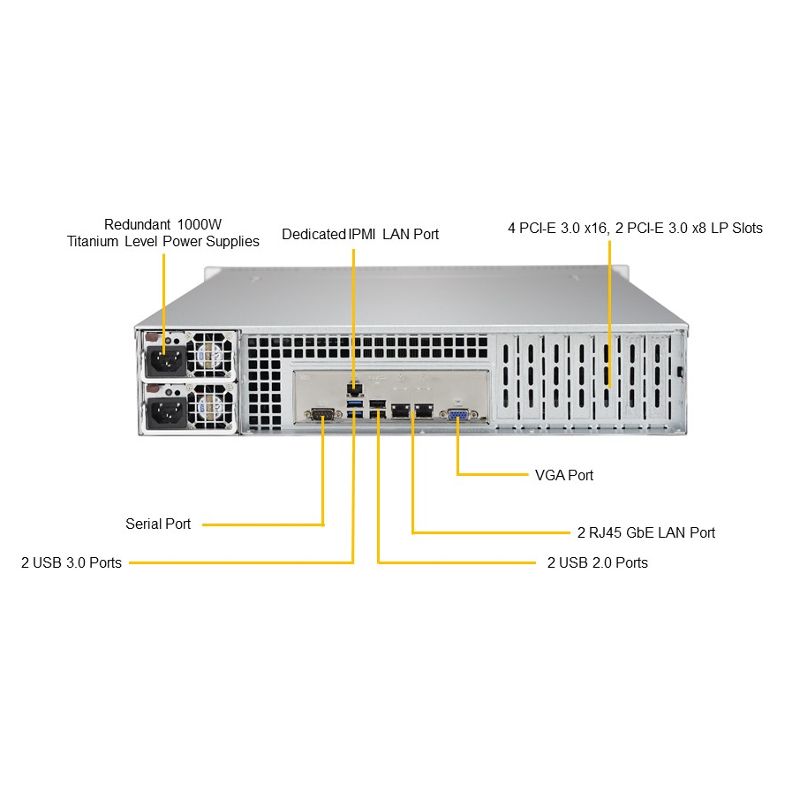

  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.0 Ports (on IO): 2
  • Serial (Rear IO): 1
  • Headers
  • USB 3.0 Ports (on Headers): 2
  • FAN Connectors: 8
  • Chassis Intrusion
  • Management Features
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 10 Pro WS (64-Bit)
  • Ubuntu Server Edition
  • Windows Server 2016 STD
  • Windows Server 2019 Std
  • RED HAT Enterprise LINUX SERVER STANDARD
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year
  • Other Features
  • Other Features:

    PCI-Express

    • 4 PCI-E 3.0 x16 (Low-profile)
    • 2 PCI-E 3.0 x8 (Low-profile)

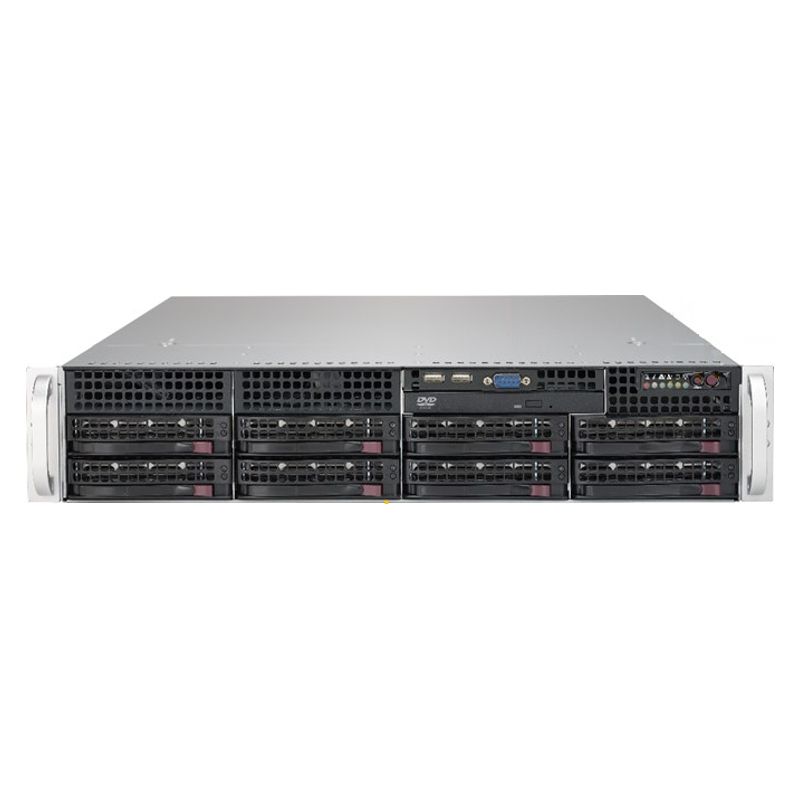

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black
  • Material: Steel & Plastic
  • Material Thickness: 1mm
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 6
  • Max Card Depth: 8 - 14 Inches"
  • 3.5" Hot Swap Bays: 8
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 3
  • Included Fans: 3
  • Physical
  • Depth: 25.50"
  • Depth (Inches): 25.5
  • Width: 17.20"
  • Height: 3.50"
  • Shipping Box - Depth: 34.50"
  • Shipping Box - Width: 11.40"
  • Shipping Box - Height: 26.70"
  • Shipping Weight: 37lbs
  • Power
  • Built-in Chassis Power Supply: 1000W Redundant Power Supplies with PMBus 80+ Titanium
