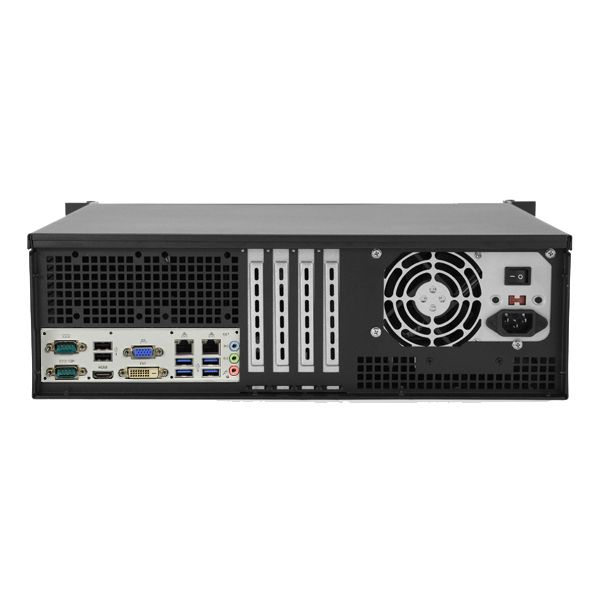

SL-3U-JH110M-GK

A newer version of this item is available: SL-3U-LLH310M-GK

3U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2030) with Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x 1GbE + 1GbE LAN, 10x Serial, Up to 32GB RAM, 5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 4 Rear ), 4x Expansion Slots.



Type:

  • 3U Rack Mount Industrial PC
  • Depth: 15.35", Max Card Depth: 8.5"

Motherboard:

  • Featuring Intel H110 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
  • Long Production Cycle Motherboard (Through Q3 2030)
  • Full Height Slots:
    1 - PCIe x16
    1 - PCIe x1
    2 - PCI
  • LAN: 2x Ports (1GbE + 1GbE)
  • Video: VGA + HDMI + DVI-D
  • Audio: 5.1 channel by Realtek® ALC662
  • Ports:
    5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers )
    4x USB 3.2 Gen 1 Ports ( 4 Rear )
    10x COM Ports (1 RS232 Rear, 8 RS232 Internal Headers, 1 RS232/422/485 Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
  • Memory: 8GB DDR4 2666MHz RAM
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty
Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q3 2030
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
  • Chipset
  • Chipset: Intel H110 Chipset
  • Memory
  • Memory Type: DDR4 2133MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 32GB
  • On Board Audio
  • Audio Type: 5.1 channel by Realtek® ALC662
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + HDMI + DVI-D
  • VGA Port Out: 1
  • DVI-D Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: 1GbE + 1GbE
  • LAN Chipset: Realtek® RTL8111G
  • Second LAN Chipset: Realtek® RTL8111G
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 3
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • PCI Express x1 Slots On Motherboard: 1
  • PCI Slots (Conventional 32-Bit): 2
  • Mini PCIe
  • mini PCIe
  • mSATA
  • half and/or full size mini PCIe card: full size
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 1
  • M.2 Slot #1 Specs
  • M.2 SATA SSD
  • 22110 - 22 mm x 110 mm.
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • USB 3.2 Gen 1 Type A Ports (on IO): 4
  • Serial (Rear IO): 1
  • Serial 232/422/485 Ports: 1
  • Headers
  • USB 2.0 Ports (on Headers): 3
  • Serial (via Headers): 8
  • TPM Support: 1.2 Module Included
  • Environmental
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • SL-Windows 11PRO to 10PRO 64bit
  • Windows 10 IoT Value
  • Windows 10 IoT Ent
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • Windows 10 IoT 2021 LTSC Value
  • Windows 10 IoT 2021 LTSC High End
  • RED HAT Enterprise LINUX SERVER STANDARD
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    1x PCI-E 2.0 x16 Slot (by 16-lane)

    1x PCI-E 2.0 x1 Slot

    1x mini PCI-E Slot (Full-size)

    1x M.2 SATA M-key, 2242/2260/2280/22110 (SATA SSD Only)

    2x PCI Slot

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 3U Rackmount
  • Color: Black
  • Material: Metal/Aluminum
  • Material Thickness: 1mm
  • Motherboard Compatibility: Micro ATX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 4
  • Max Card Depth: 8.5"
  • External 5.25" Bays: 2
  • Internal 3.5" Bays: 4
  • External 3.5" Bays: 1
  • Internal 2.5" Bays: 2
  • Front Ports
  • USB 2.0 Ports (Front): 2
  • Cooling System
  • Maximum Fan Count: 4
  • Included Fans: 2
  • Physical
  • Depth: 15.35"
  • Depth (Inches): 15.35
  • Width: 19.10"
  • Height: 5.25"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 21"
  • Shipping Box - Height: 9"
  • Shipping Weight: 35lbs
  • Other Features
  • Chassis Warranty: 1 Year
