SL-1U-J1900B-GC-NF

1U Rack Mount Industrial PC - Rackmount featuring Intel Celeron SoC, Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W, 1x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 16GB RAM, 4x USB 2.0, 1x USB 3.0, 90w output, 12v input DC-DC Power Supply - AC Adapter Included

1U Rack Mount Industrial PC - Rackmount featuring Intel ATOM/Celeron SoC, Intel Celeron J1900 Processor (Quad Core, 2.0GHz), 1x GB (10/100/1000) LAN, HDD or SSD, 2x Serial, Up to 16GB RAM, 4x USB 2.0, 1x USB 3.0, 90w output
  • Angle
  • Front

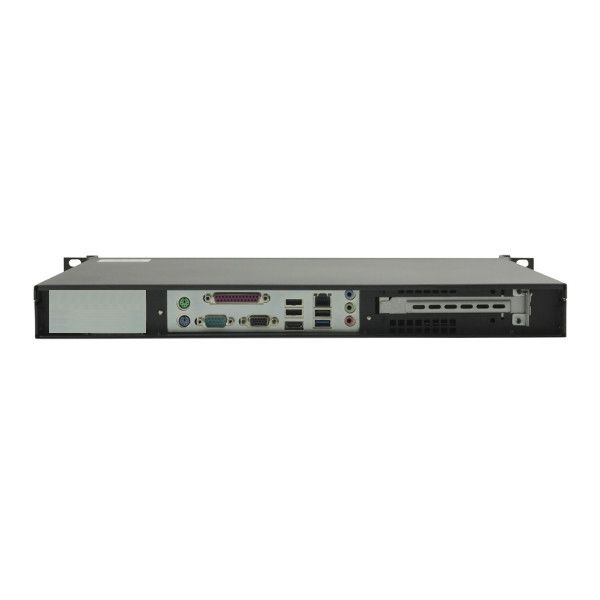

  • Rear IO View
  • Top
  • Dimensions
  • FANLESS Rackmount!

Type:

  • 1U Rack Mount Industrial PC
  • Depth: 11", Max Card Depth: 8.5"

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • LAN: 1x GB (10/100/1000)
  • Video: VGA + HDMI
  • Audio: 5.1 channel by Realtek® ALC662
  • Ports:
    4x USB 2.0 Ports ( 2 Front, 3 Rear )
    1x USB 3.0 Port ( 1 Rear )
    2x COM Ports (1 Rear, 1 on Headers)
    1x Parallel Port (Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

  • Memory: 4GB DDR3 1333MHz SODIMM RAM - Upgradeable
  • Hard Drive: 500GB SATA 6Gb/s 7200 RPM 32MB 2.5" WD Black - Upgradeable
  • Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Expedite
Memory
CD/DVD/OpticalDrive
Hard Drive
Additional Hard Drives
Cable
Riser Card
Plug-In Boards
Networking
Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: SO DIMM DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: 5.1 channel by Realtek® ALC662
  • On Board Video
  • Video Chipset: Intel® 7th generation (Gen 7) Graphics
  • Video on IO: VGA + HDMI
  • VGA Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • Lan Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111G
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • mini PCIe
  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 3
  • USB 3.0 Ports (on IO): 1
  • Serial (Rear IO): 1
  • Parallel Ports: 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 1
  • Serial (via Headers): 1
  • FAN Connectors: 2
  • Audio on Headers
  • Chassis Intrusion
  • TPM Support: Via 1.2 Header
  • Environmental
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Ent-Entry
  • LINUX Ubuntu Desktop
  • Compliance of Component
  • CE
  • FCC
  • Other Features
  • Other Features:

    1 x PCI Express 2.0 x1 Slot



    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • Max Card Depth: 8.5"
  • Internal 2.5" Bays: 2
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Physical
  • Depth: 11"
  • Depth (Inches): 11
  • Width: 19"
  • Height: 1.75"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 15"
  • Shipping Box - Height: 5"
  • Shipping Weight: 15lbs
  • Compliance of Component
  • RoHS
  • Other Features
  • Chassis Warranty: 1 Year
  • Related Products Default Upgrade Groups
  • Built-in Chassis Power Supply: 60W AC/DC Power Adapter Included
