SL-1U-LL2930J-GC-4LN This item is no longer available.

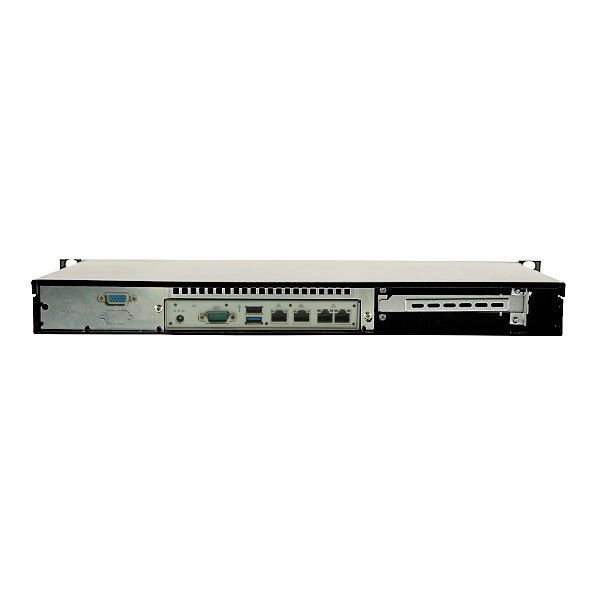

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2029) with Intel Celeron SoC, Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W, 4x GB (10/100/1000) LAN, 2x Serial, Up to 8GB RAM, 5x USB 2.0 Ports ( 2 Front, 1 Rear, 2 Internal Headers ), 1x USB 3.2 Gen 1 Port( 1 Rear ), .
Type:
- 1U Rack Mount Industrial PC
- Depth: 11", Max Card Depth: 6.5 inches"
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
- Long Production Cycle Motherboard (Through Q1 2029)
- LAN: 4x Ports (GB (10/100/1000))
- Video: Internal VGA
- Audio: No Onboard Audio
- Ports:
5x USB 2.0 Ports ( 2 Front, 1 Rear, 2 Internal Headers )
1x USB 3.2 Gen 1 Port( 1 Rear )
2x COM Port (1 RS232 Internal Headers, 1 RS232/422/485 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

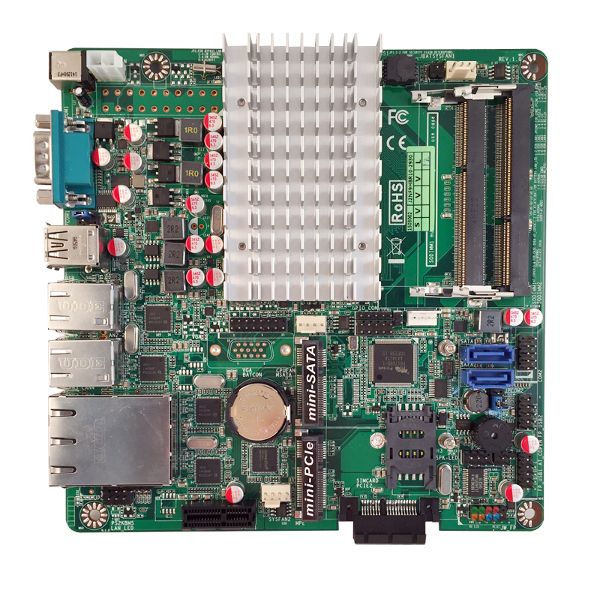

MotherBoard Specifications:
Chassis Specifications:
CASE-1U-D-118V2-ITX
