SL-2U-J1900M-GD This item is no longer available.

2U Rack Mount Industrial PC - Rackmount featuring Intel Celeron SoC, Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W, 1x GB (10/100/1000) LAN, 1x Serial, Up to 16GB RAM, 5x USB 2.0 Ports ( 2 Front, 3 Rear ), 1x USB 3.2 Gen 1 Port( 1 Rear ), 3x Expansion Slots.


Backorder

Type:

  • 2U Rack Mount Industrial PC
  • Depth: 15.35", Max Card Depth: 9.00"

Motherboard:

  • Featuring Intel Celeron SoC and Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • Low Profile Slots:
    1 - PCIe x16
    2 - PCIe x1
  • LAN: 1x Ports (GB (10/100/1000))
  • Video: VGA + HDMI + DVI-D
  • Audio: 5.1 channel by Realtek® ALC662
  • Ports:
    5x USB 2.0 Ports ( 2 Front, 3 Rear )
    1x USB 3.2 Gen 1 Port( 1 Rear )
    1x COM Port (RS232 Internal Headers)
    1x Parallel Port (Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 50ºC (0ºF to 122ºF)

Also Included:

  • Memory: 4GB DDR3 1333MHz RAM
  • Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
  • Power Supply: 400W Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

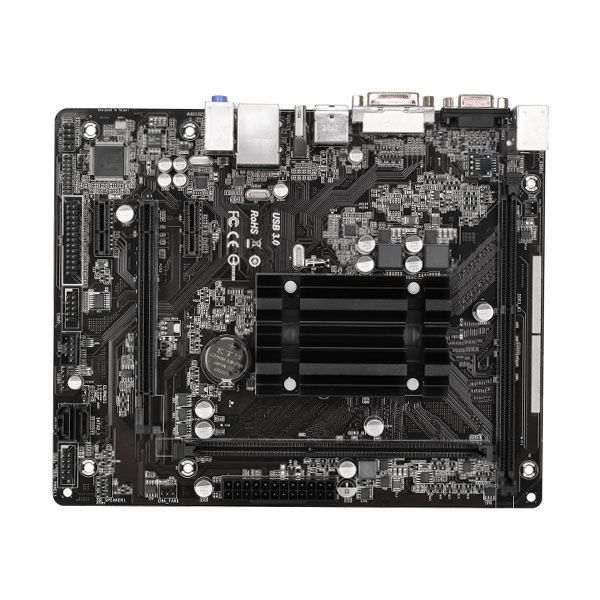

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MicroATX
  • Fanless
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Embedded CPUs (ultra-low power, soldered down)
  • Embedded CPU: Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
  • Chipset
  • Chipset: Intel Celeron SoC
  • Memory
  • Memory Type: DDR3 1333MHz
  • Memory Type: Non-ECC
  • DIMMS: 2
  • Maximum Memory: 16GB
  • On Board Audio
  • Audio Type: 5.1 channel by Realtek® ALC662
  • On Board Video
  • Video Chipset: Intel® 7th generation (Gen 7) Graphics
  • Video on IO: VGA + HDMI + DVI-D
  • VGA Port Out: 1
  • DVI-D Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 1
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Realtek® RTL8111G
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA II Ports (3GB): 2
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 1
  • PCI Express x1 Slots On Motherboard: 2

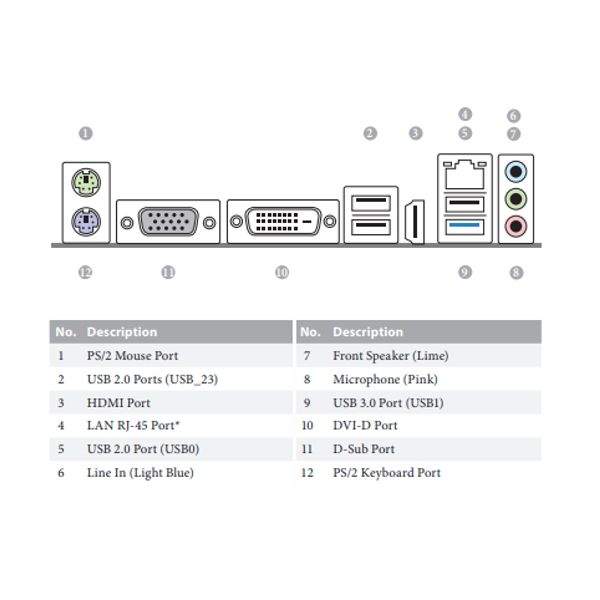

  • Rear IO
  • PS/2 Mouse on IO
  • PS/2 Keyboard on IO
  • USB 2.0 Ports (on IO): 3
  • USB 3.0 Ports (on IO): 1
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • Serial (via Headers): 1
  • Parallel Ports: 1
  • FAN Connectors: 2
  • Audio on Headers
  • Chassis Intrusion
  • TPM Support: Via 1.2 Header
  • Environmental
  • Operating Temperature: 0ºC to 50ºC (0ºF to 122ºF )
  • High Humidity: 90%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 7 Ultimate (64-bit)
  • Windows 7 Pro (32-bit)
  • Windows 7 Pro (64-bit)
  • Windows 7 Pro (FES) 32-Bit
  • Windows 7 Pro (FES) 64-Bit
  • SL-Windows 10PRO to 7PRO 32-bit
  • SL-Windows 10PRO to 7PRO 64-bit
  • Windows Embedded 7 (32-Bit)
  • Windows Embedded 7 (64-Bit)
  • Windows 8.1 (32-bit)
  • Windows 8.1 (64-bit)
  • Windows 8.1 Pro (32-bit)
  • Windows 8.1 Pro (64-bit)
  • Windows Embedded 8 (32-bit)
  • Windows Embedded 8 (64-bit)
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 IoT Entry
  • Windows 10 IoT Entry 2019 LTSC
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Other Features
  • Other Features:

    1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)
    2 x PCI Express 2.0 x1 Slots



    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

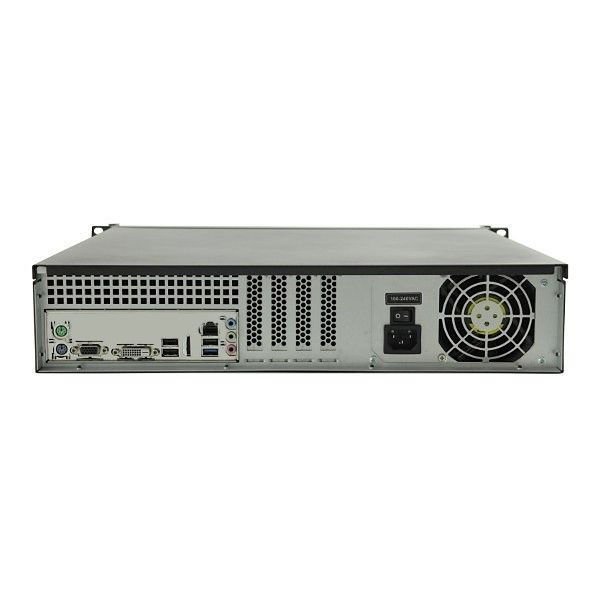

Chassis Specifications:

  • General
  • Form Factor: 2U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Micro ATX
  • Slide Rails: Optional
  • Expansion
  • Low Profile Slots: 4
  • Max Card Depth: 9.00"
  • External 5.25" Bays: 1
  • Internal 3.5" Bays: 4
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 1
  • Physical
  • Depth: 15.35"
  • Depth (Inches): 15.35
  • Width: 19"
  • Height: 3.50"
  • Shipping Box - Depth: 22"
  • Shipping Box - Width: 21"
  • Shipping Box - Height: 7"
  • Shipping Weight: 25lbs
  • Other Features
  • Chassis Warranty: 1 Year
