SL-1U-MCX-C621DPL-LF

1U Rack Mount Server - Rackmount featuring Intel C621 Chipset, Intel® Xeon® Scalable Processors, 2x GB (10/100/1000) LAN, HDD or SSD, Up to 64GB RAM, 4x USB 2.0, 2x USB 3.0, 1x Expansion Slots, 600W redundancy PWS meet PMBus 1.2 with high efficiency and high power density. 80 Plus Platinum

1U Rack Mount Server - Rackmount featuring Intel C621 Chipset, Intel® Xeon® Scalable Processors, 2x GB (10/100/1000) LAN, HDD or SSD, Up to 64GB RAM, 4x USB 2.0, 2x USB 3.0, 1x Expansion Slots, 600W redundancy PWS meet PMBus 1.2 with high efficiency an...

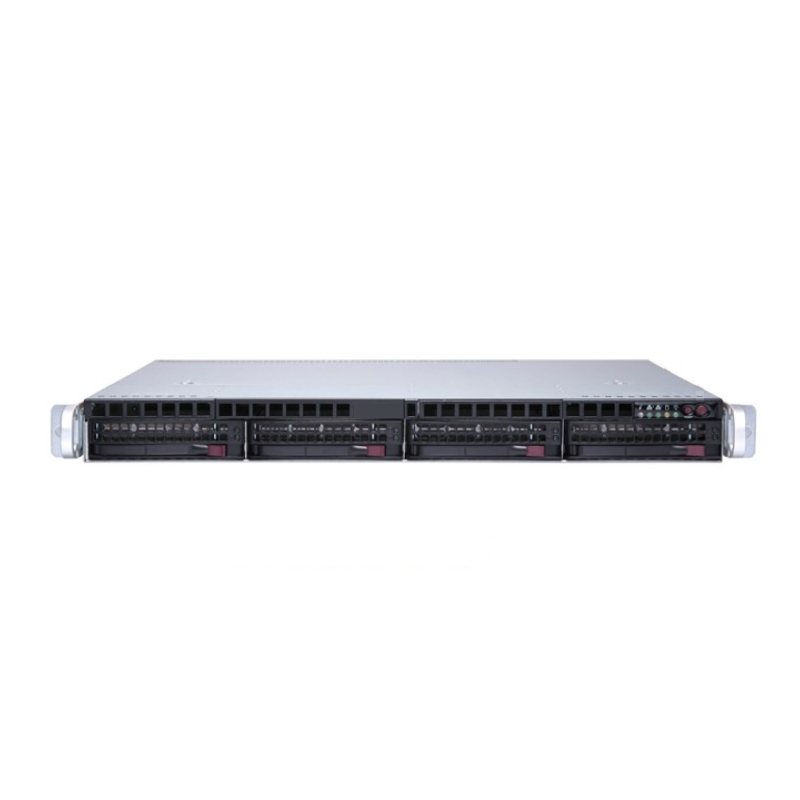

  • Front

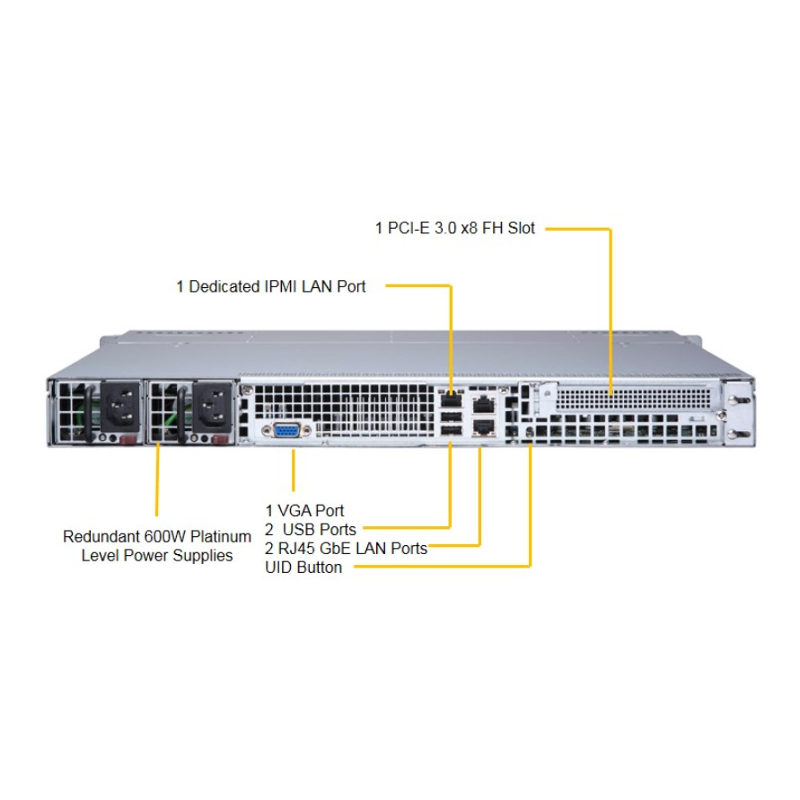

  • Rear I/O

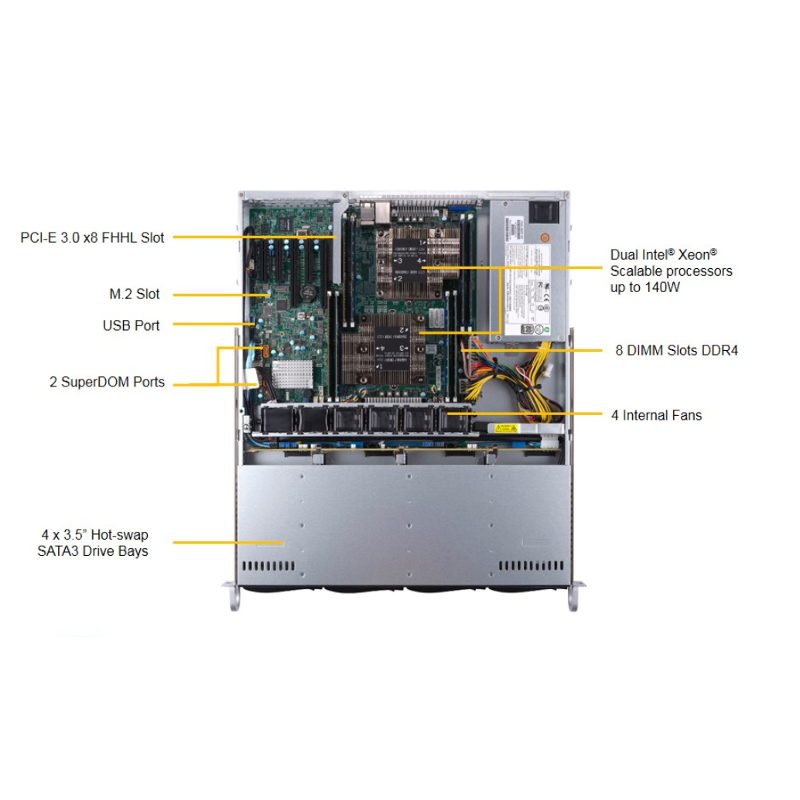

  • Top
  • Internal

Type:

  • 1U Rack Mount Server
  • Depth: 19.98"

Motherboard:

  • Featuring Intel C621 Chipset and Intel® Xeon® Scalable Processors processor
  • Full Height Slots:
    1 - PCIe x8
  • LAN: 2x GB (10/100/1000)
  • RAID: 0,1,5,10 via LSI MegaRAID
  • Video: VGA
  • Audio: No Onboard Audio
  • Ports:
    4x USB 2.0 Ports ( 2 Rear, 2 via internal headers )
    2x USB 3.0 Ports ( 2 via internal headers )
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: 2 x  Xeon Bronze 3104 - 1.70GHz Six Core Intel Processor - 8.25MB Cache (85W) - Upgradeable
  • Memory: 2 x  8GB DDR4 2400MHz ECC Registered RAM - Upgradeable
  • Hard Drive: 250GB NVMe SSD M.2 3.5GB/2.3GB - Samsung 970 EVO Plus - Upgradeable
  • Power Supply: 600W redundancy PWS meet PMBus 1.2 with high efficiency and high power density. 80 Plus Platinum
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Hard Drive
Additional Hard Drives
Raid Controller
Cable
Riser Card
Plug-In Boards
Networking
Operating System
Productivity Software
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 2
  • Processor Type: Intel® Xeon® Scalable Processors
  • Chipset
  • Chipset: Intel C621 Chipset
  • Memory
  • Memory Type: DDR4 2400MHz ECCR
  • Memory Type: ECC Registered
  • DIMMS: 8
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: No Onboard Audio
  • On Board Video
  • Video Chipset: ASPEED AST2500 BMC
  • Video on IO: VGA
  • VGA Port Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Marvell® 88E1512
  • Second LAN Chipset: Marvell® 88E1512
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 10
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • M.2
  • M.2 NVMe: 1
  • M.2
  • PCIe
  • 60mm
  • 80mm
  • Rear IO
  • USB 2.0 Ports (on IO): 2
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.0 Ports (on Headers): 2
  • FAN Connectors: 8
  • Chassis Intrusion
  • Management Features
  • IPMI
  • NMI
  • Watch Dog
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
  • High Humidity: 90%
  • Low Humidity: 8%
  • Operating System Support
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Ent
  • Windows 10 IoT Ent 2019 LTSC
  • LINUX Ubuntu Workstation
  • Ubuntu Server Edition
  • Windows Server 2016 STD
  • Windows Server 2019 Std
  • RED HAT Enterprise LINUX SERVER BASIC
  • RED HAT Enterprise LINUX WORKSTATION STANDARD
  • RED HAT Enterprise LINUX SERVER STANDARD
  • VMWare Compatible: Partially Supported
  • Compliance of Component
  • UL
  • CE
  • RoHS
  • FCC
  • Warranty of Component
  • Motherboard Warranty: 1 Year
  • Other Features
  • Other Features:
    PCI-E
    • 2 PCI-E 3.0 x16,
    • 3 PCI-E 3.0 x8,
    • 1 PCI-E 3.0 x4 (in x8 slot)
    M.2
    • M.2 Interface: PCI-E 3.0 x4
    • Form Factor: 2260, 2280

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Color: Black & Silver
  • Material: Steel & Plastic
  • Material Thickness: 1mm
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 1
  • 3.5" Hot Swap Bays: 4
  • Slim CDBay: 1
  • Cooling System
  • Maximum Fan Count: 6
  • Included Fans: 4
  • Physical
  • Depth: 19.98"
  • Width: 17.20"
  • Height: 1.70"
  • Shipping Box - Depth: 29.70"
  • Shipping Box - Width: 23.40"
  • Shipping Box - Height: 8.50"
  • Shipping Weight: 35lbs
  • Power
  • Built-in Chassis Power Supply: 600W redundancy PWS meet PMBus 1.2 with high efficiency and high power density. 80 Plus Platinum
  • Other Features
  • Features:

    PCI-Express

    • 1 PCI-E 3.0 x8 (FHHL) slot in 1U Chassis
