SL-1U-MCX-GC246I-RD

1U Rack Mount Server - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2023) with Intel C246 Chipset, 8th/9th Gen Core i3/Pentium/Celeron/Xeon E-2100, 2x GB (10/100/1000) LAN, HDD or SSD, 1x Serial, Up to 64GB RAM, 5x USB 3.1, 150W 1U Flex ATX Power Supply

1U Rack Mount Server - Rackmount featuring Long Production Cycle Motherboard Intel C246 Chipset, 8th Gen Core i3/Pentium/Celeron/Xeon E-2100, 2x GB (10/100/1000) LAN
  • Angle
  • Front
  • Optional

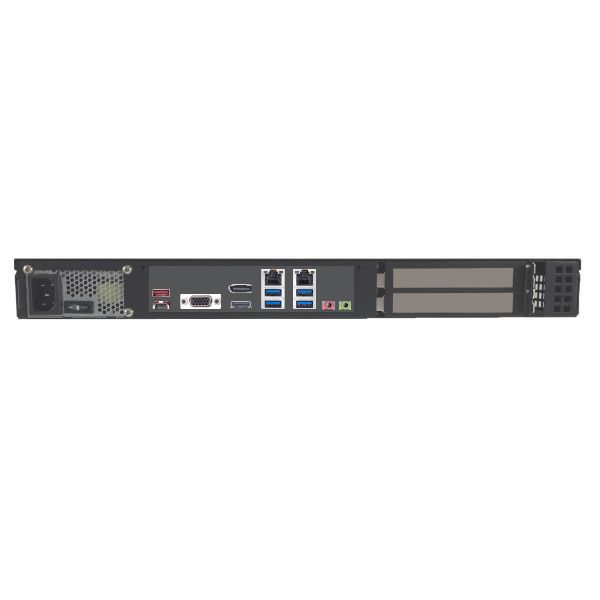

  • I/O
  • I/O Description
  • Internal
Upgradeable Removable Drive Cage Included in 5.25" Bay

Type:

  • 1U Rack Mount Server
  • Depth: 10.19"

Motherboard:

  • Featuring Intel C246 Chipset and 8th/9th Gen Core i3/Pentium/Celeron/Xeon E-2100 processor
  • Long Production Cycle Motherboard (Through Q1 2023)
  • LAN: 2x GB (10/100/1000)
  • RAID: 0,1,5,10
  • Video: VGA + DisplayPort + HDMI
  • Audio: Realtek® ALC887 codec
  • Ports:
    5x USB 3.1 Ports ( 4 Rear, 1 via internal headers )
    1x COM Port (Headers)
    See specifications for more ports
  • Operating Temperature: -10ºC to 50ºC (14ºF to 122ºF)

Also Included:

  • Processor: G4900 - 3.1GHz Intel Celeron CPU - Dual Core, 2MB Cache, UHD Graphics 610 (54W) - or Better - Upgradeable
  • Memory: 4GB DDR4 2400MHz RAM - Upgradeable
  • Hard Drive: 250GB SSD SATA 6.0Gb/s, 500/300MB/s read/write (or greater) - Upgradeable
  • Power Supply: 150W 1U Flex ATX Power Supply - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Configure
Technical Specifications
Available Downloads
Expedite
Processor
Memory
CD/DVD/OpticalDrive
Removable Drive Bay
Hard Drive
Additional Hard Drives
Raid Controller
Cable
Riser Card
Networking
Power Supply
Operating System
Productivity Software
Productivity Software
Productivity Software
Warranty
Monitors
Keyboard/Mouse
External Power
Mounting Option

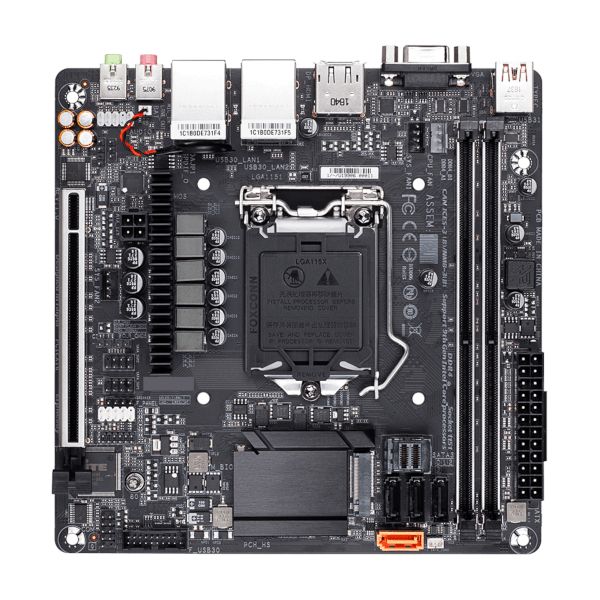

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: MiniITX
  • Long Production Cycle
  • Long Life: YES
  • EOL Date: Q1 2023
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: 8th/9th Gen Core i3/Pentium/Celeron/Xeon E-2100
  • Chipset
  • Chipset: Intel C246 Chipset
  • Memory
  • Memory Type: DDR4 2666MHz ECCU
  • Memory Type: ECC Unbuffered
  • DIMMS: 2
  • Maximum Memory: 64GB
  • On Board Audio
  • Audio Type: Realtek® ALC887 codec
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: VGA + DisplayPort + HDMI
  • VGA Port Out: 1
  • Display Port Out: 1
  • HDMI Out: 1
  • LAN
  • LAN Ports: 2
  • LAN Type: GB (10/100/1000)
  • LAN Chipset: Intel® i210AT
  • Second LAN Chipset: Intel® i219LM
  • Wireless LAN: No Integrated WLAN
  • Drive Interface
  • SATA III Ports (6GB): 8
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • mini PCIe
  • M.2
  • M.2 NVMe: 1
  • M.2
  • SATA
  • PCIe
  • 80mm

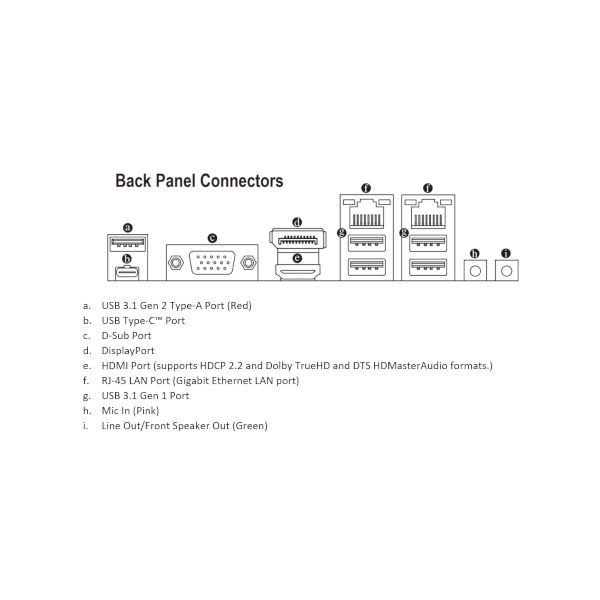

  • Rear IO
  • USB 3.1 Gen 1 Type A Ports (on IO): 4
  • USB 3.1 Gen 2 Type A Ports (on IO): 1
  • USB 3.1 Gen 2 Type C Ports (on I/O): 1
  • Audio on IO
  • Headers
  • USB 3.1 Ports Gen 1 (on Headers): 1
  • Serial (via Headers): 1
  • FAN Connectors: 3
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Management Features
  • AMT
  • Environmental
  • Operating Temperature: -10ºC to 50ºC (14ºF to 122ºF)
  • High Humidity: 95%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 10 Home (64 Bit)
  • Windows 10 Pro (64-Bit)
  • Windows 10 Pro WS (64-Bit)
  • Windows 10 IoT Value 2019 LTSC
  • Windows 10 IoT Ent 2019 LTSC
  • LINUX Ubuntu Desktop
  • Ubuntu Server Edition
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Features:

    8x SATA Ports (4 via miniSAS HD connector)

    When M.2 SATA SSD is installed, 1x SATA port will be disable.

    If M.2 NVMe SSD installed, miniSAS HD connector will be disable (4 SATA ports).

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 1U Rackmount
  • Front Changeable Air Filter
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: Mini ITX
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 2
  • External 5.25" Bays: 1
  • Internal 2.5" Bays: 1
  • Front Ports
  • USB 2.0 Port (Front): 2
  • Cooling System
  • Maximum Fan Count: 2
  • Included Fans: 2
  • Physical
  • Depth: 10.19"
  • Width: 16.85"
  • Height: 1.78"
  • Other Features
  • Features:

    External 5.25" Bay for upgradable Removable Drive Cage.

  • Chassis Warranty: 1 Year
