SL-1U-WS-C236SAE-LG This item is no longer available.

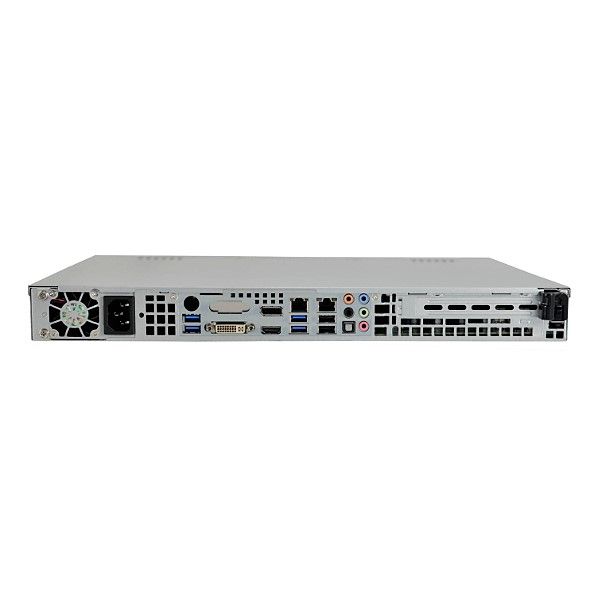

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2024) with Intel C236 Chipset, Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’), 2x GB (10/100/1000) LAN, 2x Serial, Up to 64GB RAM, 8x USB 2.0 Ports ( 2 Front, 2 Rear, 4 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Rear, 4 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), Power Supply 260W ATX12V Power Supply.


Chassis Supports 1x 3.5" HDD or 2x 2.5" HDD/SSD

Type:

  • 1U Rack Mount Industrial PC
  • Depth: 14", Max Card Depth: 12.28"

Motherboard:

  • Featuring Intel C236 Chipset and Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’) processor
  • Long Production Cycle Motherboard (Through Q4 2024)
  • LAN: 2x Ports (GB (10/100/1000))
  • Video: DVI-D + HDMI + DisplyPort
  • Audio: 7.1 Channel HD Audio by Realtek® ALC888S
  • Ports:
    8x USB 2.0 Ports ( 2 Front, 2 Rear, 4 Internal Headers )
    6x USB 3.2 Gen 1 Ports ( 2 Rear, 4 Internal Headers )
    2x USB 3.2 Gen 2 Ports ( 2 Rear )
    2x COM Ports (RS232 Internal Headers)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
  • Memory: 8GB DDR4 2666MHz RAM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 260W ATX12V Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty

MotherBoard Specifications:

    Chassis Specifications:
